APC Back-UPS CS 500VA/300W, 230V

APC BACK-UPS CS 500VA | BK500-EI

APC Back-UPS 500 230V (BK500EI)

Output

• Output power capacity : 300Watts / 500VA
• Max Configurable Power (Watts) : 300Watts / 500VA
• Nominal Output Voltage : 230V
• Output Frequency (sync to mains) : 47 – 63 Hz
• Output Frequency (not synced) : 50/60 Hz /-1 Hz
• Topology : Standby
• Waveform type : Stepped approximation to a sinewave

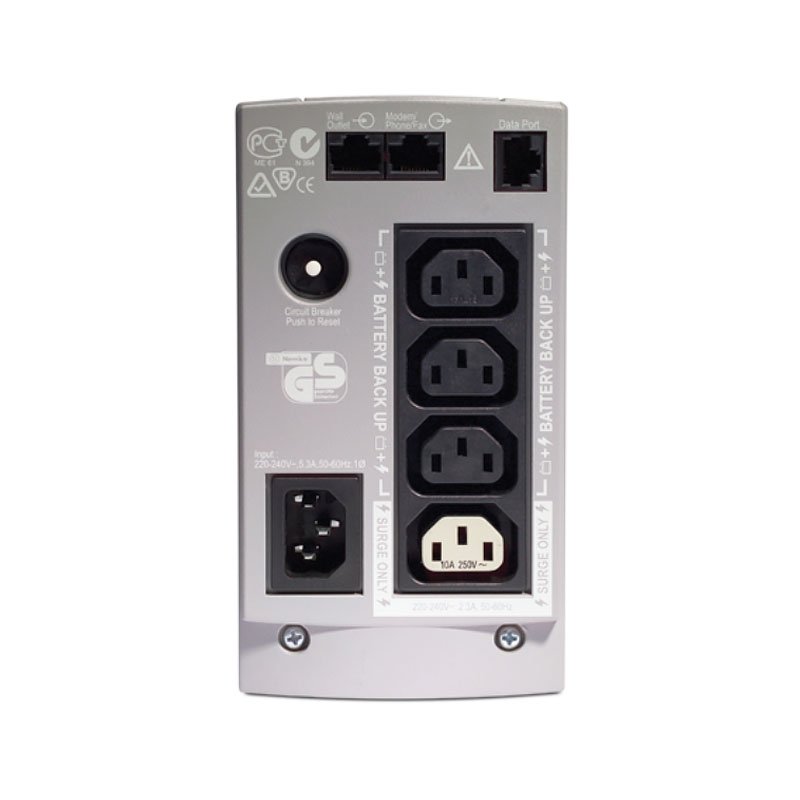

• Output Connections : (1) IEC 320 C13 (selector_surgetitle) (2) IEC Jumpers (selector_surgetitle) (3) IEC 320 C13 (Battery Backup)
• Transfer Time : 6ms typical : 10ms maximum

Input

• Nominal Input Voltage : 230V
• Input frequency : 47 – 63 Hz, 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections : IEC-320-C14 inlet
• Input voltage range for main operations : 180 – 266V
• Input voltage adjustable range for mains operation : 160 – 300V
• Number of Power Cords : 2
• Maximum Input Current : 7.0A

Batteries & Runtime

• Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time : 8hour(s)
• Replacement Battery : RBC2
• Expected Battery Life (years) : 4 – 6
• RBC Quantity : 1
• Battery Volt-Amp-Hour Capacity : 84
• Runtime : View Runtime Graph : View Runtime Chart
• Efficiency : View Efficiency Graph

Communications & Management

• Interface Port(s) : Optional Simple Signalling RS232 cable, USB

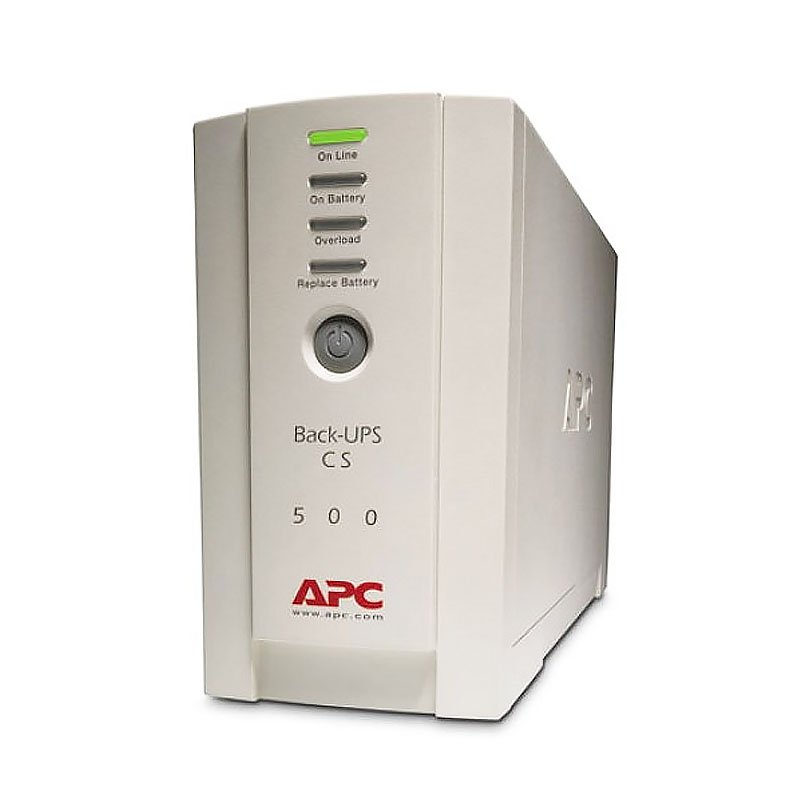

• Control panel : LED status display with On Line : On Battery : Replace Battery and Overload indicators
• Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

• Surge energy rating : 310Joules
• Data Line Protection : Analog phone line for phone/fax/modem/DSL (RJ-45 connector)
• Filtering : Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height : 165MM, 16.5CM
• Maximum Width : 91MM, 9.1CM
• Maximum Depth : 284MM, 28.4CM
• Net Weight : 6.32KG
• Shipping weight : 7.05KG
• Shipping Height : 178MM, 17.8CM
• Shipping Width : 241MM, 24.1CM
• Shipping Depth : 368MM, 36.8CM
• Color : Beige
• Master Carton Units : 1.0
• Units per Pallet : 48.0
• SCC Codes : 107 31304 01635 6

Environmental

• Operating Temperature : 0 – 40 °C
• Operating Relative Humidity : 0 – 95 %
• Operating Elevation : 0-3000meters
• Storage Temperature : -15 – 45 °C
• Storage Relative Humidity : 0 – 95 %
• Storage Elevation : 0-15000meters
• Audible noise at 1 meter from surface of unit : 40.0dBA
• Online thermal dissipation : 24.0BTU/hr

Conformance

• Approvals : C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE
• Equipment protection policy : Lifetime : 100000 Euro, Lifetime : 50000 GBP
• Standard warranty : 2 years repair or replace

Sustainable Offer Status

• RoHS : Compliant
• REACH : REACH: Contains No SVHCs
• PEP : Available in Documentation tab
• EOLI : Available in Documentation tab
