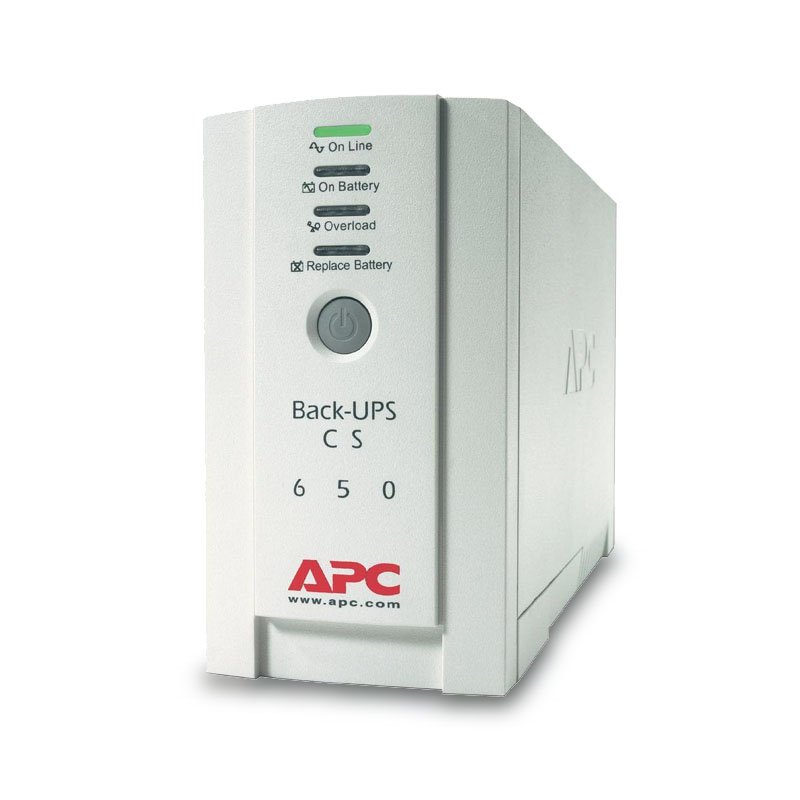

APC BACK-UPS CS 650VA 230V ASEAN (BK650-AS)
APC Back-UPS 625VA, 230V, AVR, Floor, Universal Sockets
Output
- Output power capacity 400Watts / 650VA
- Max Configurable Power (Watts) 400Watts / 650VA
- Nominal Output Voltage 230V
- Topology Standby

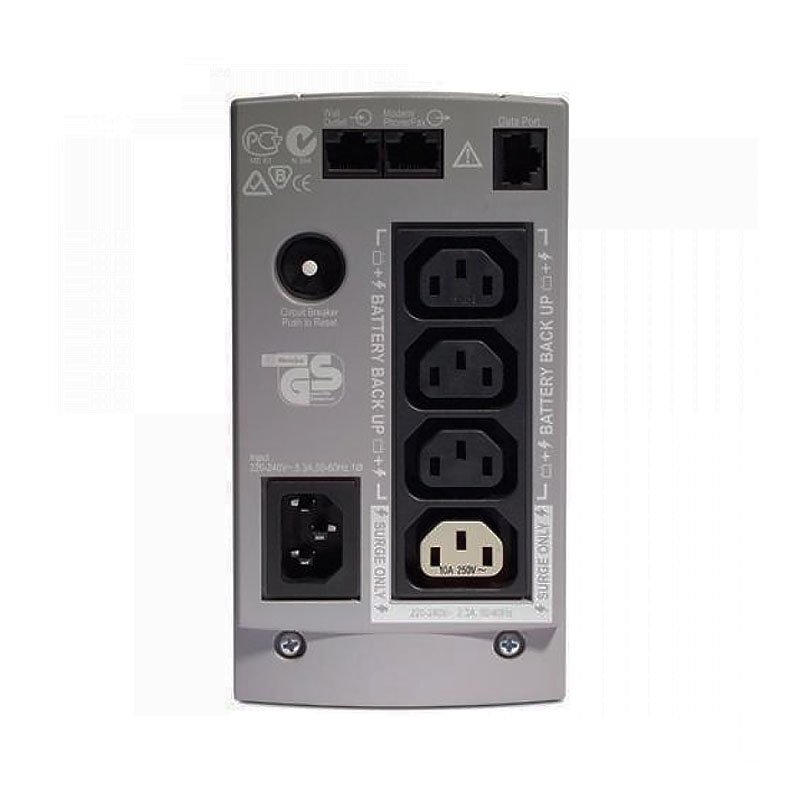

- Output Connections
- (3) IEC 320 C13 (Battery Backup)
- (1) IEC 320 C13 (selector_surgetitle)
Input
- Nominal Input Voltage 230V
- Input frequency 50/60 Hz /- 3 Hz (auto sensing)
- Input Connections IEC-320 C14
- Cord Length 1.83meters
- Input voltage range for main operations 180 – 260V
- Input voltage adjustable range for mains operation 160 – 282V
- Number of Power Cords 2
Batteries & Runtime
- Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
- Typical recharge time 8hour(s)
- Replacement Battery RBC17
- Expected Battery Life (years) 4 – 6
- RBC Quantity 1
- Battery Volt-Amp-Hour Capacity 95
- Runtime View Runtime Graph
- View Runtime Chart
- Efficiency View Efficiency Graph
Communications & Management
- Interface Port(s) USB
- Control panel LED status display with On Line : On Battery : Replace Battery and Overload indicators
- Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
- Surge energy rating 320Joules
- Data Line Protection Analog phone line for phone/fax/modem/DSL (RJ-45 connector)
Physical
- Maximum Height 165mm , 16.5cm
- Maximum Width 91mm , 9.1cm
- Maximum Depth 284mm , 28.4cm
- Net Weight 6.04kg
- Shipping weight 7.32kg
- Shipping Height 494mm , 49.4cm
- Shipping Width 185mm , 18.5cm
- Shipping Depth 415mm , 41.5cm
- Color Beige
- Master Carton Units 1.0
- Units per Pallet 48.0
- SCC Codes 1073130422443 0
Environmental
- Operating Environment 0 – 40 °C
- Operating Relative Humidity 5 – 95 %
- Operating Elevation 0-9000meters
- Storage Temperature -15 – 45 °C
- Storage Relative Humidity 5 – 95 %
- Storage Elevation 0-4500meters
- Audible noise at 1 meter from surface of unit 45.0dBA
Conformance
- Approvals A-tick, C-tick, CE, GOST, NEMKO
- Equipment protection policy Lifetime : $100000, Lifetime : 50000 GBP
- Standard warranty 2 years repair or replace
Sustainable Offer Status
- PEP Available in Documentation tab
- EOLI Available in Documentation tab
