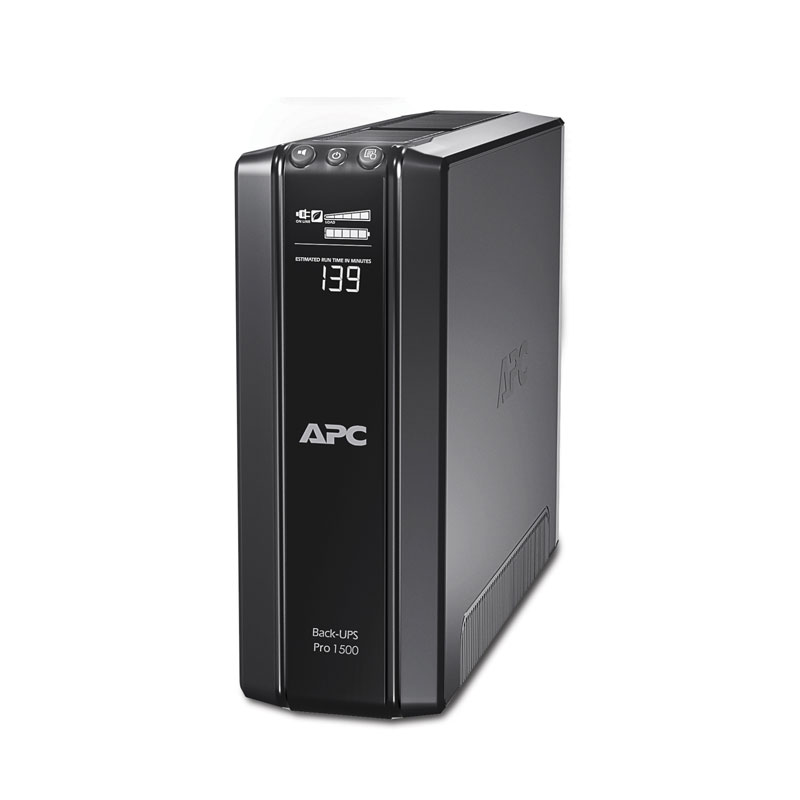

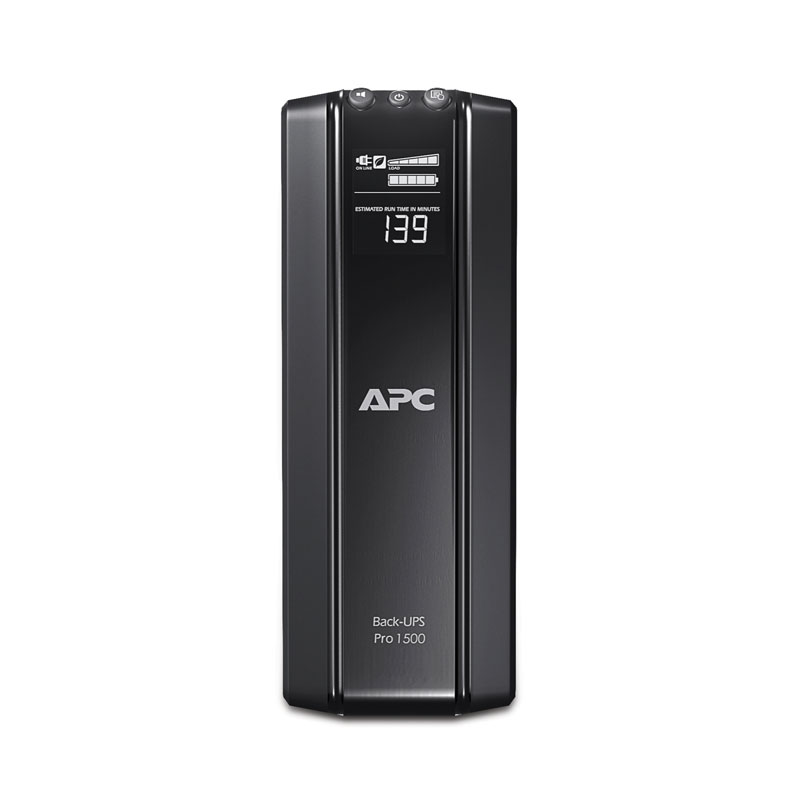

APC Back-UPS Pro 1500VA/865W 230V LCD Display

APC Power-Saving Back-UPS Pro 1500 230V (BR1500GI)

APC Power-Saving Back-UPS Pro 1500 230V (BR1500GI)

APC Power-Saving Back-UPS Pro 1500, 230V

Output

• Output power capacity : 865Watts / 1.5 kVA
• Max Configurable Power (Watts) : 865Watts / 1.5 kVA
• Nominal Output Voltage : 230V
• Output Frequency (sync to mains) : 50/60Hz /- 3 Hz
• Load Crest Factor : 3 : 1
• Topology : Line Interactive
• Waveform type : Stepped approximation to a sinewave

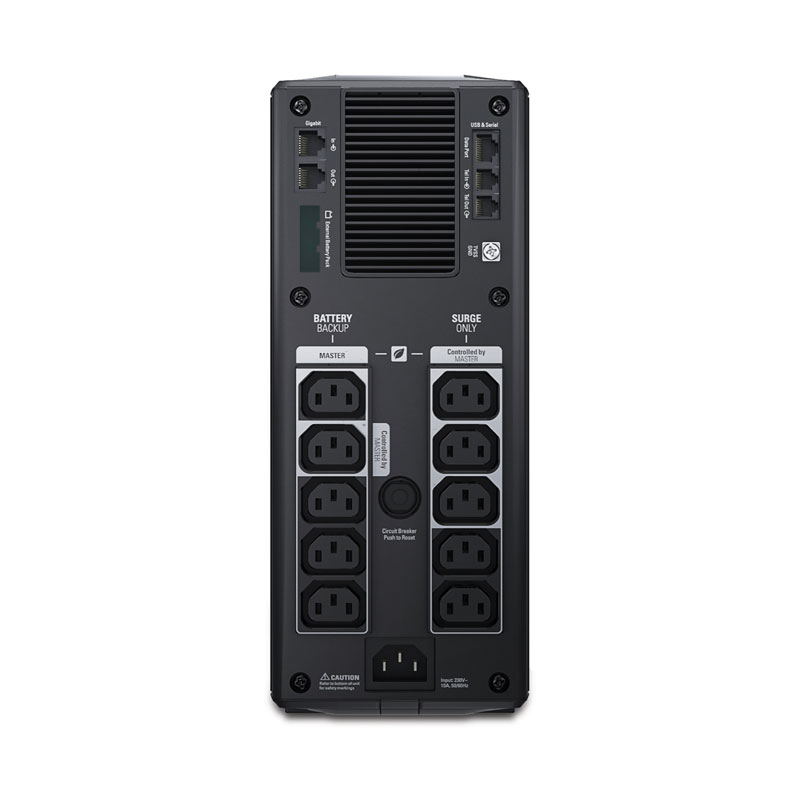

• Output Connections : (5) IEC 320 C13 (Battery Backup) (2) IEC Jumpers (Battery Backup) (5) IEC 320 C13 (selector_surgetitle)
• Transfer Time : 10ms typical : 12ms maximum

Input

• Nominal Input Voltage : 230V
• Input frequency : 50/60 Hz /- 3 Hz (auto sensing)
• Input Connections : IEC-320 C14
• Input voltage range for main operations : 176 – 294V
• Input voltage adjustable range for mains operation : 156 – 300V
• Number of Power Cords : 1

Batteries & Runtime

• Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time : 8hour(s)
• Replacement Battery : APCRBC124
• Expected Battery Life (years) : 3 – 5
• RBC Quantity : 1
• Battery Volt-Amp-Hour Capacity : 187
• Extended Run Options : APC-Power-Saving-Back-UPS-Pro-1500-230V
• Runtime : View Runtime Graph View Runtime Chart
• Efficiency : View Efficiency Graph

APC Back-UPS Pro 1500VA 865Watt

Communications & Management

• Interface Port(s) : Optional Simple Signalling RS232 cable , USB
• Control panel : Multi-function LCD status and control console
• Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

• Surge energy rating : 441Joules
• Data Line Protection : Analog phone line for phone/fax/modem/DSL (RJ-11 connector), Network line – 10/100/1000 Base-T Ethernet (RJ-45 connector)
• Filtering : Full time multi-pole noise filtering :10% of IEEE surge let-thgouh : zero clamping response time: instantaneous

Physical

• Maximum Height : 301mm , 30.1cm
• Maximum Width : 112mm , 11.2cm
• Maximum Depth : 380mm , 38.0cm
• Net Weight : 12.7kg
• Shipping weight : 14.3kg
• Shipping Height : 387mm , 38.7cm
• Shipping Width : 238mm , 23.8cm
• Shipping Depth : 488mm , 48.8cm
• Color : Black
• Master Carton Units : 1.0
• Units per Pallet : 20.0
• SCC Codes : 1073130426874 8

Environmental

• Operating Environment : 0 – 40 °C
• Operating Relative Humidity : 0 – 95 %
• Operating Elevation : 0-9000meters
• Storage Temperature : -15 – 45 ?C
• Storage Relative Humidity : 0 – 95 %
• Storage Elevation : 0-15000meters
• Audible noise at 1 meter from surface of unit : 45.0dBA

Conformance

• Approvals : A-tick, C-tick, CE, ENERGY STAR (EU), GOST, GS Mark, Telepermit, TUV
• Equipment protection policy : Lifetime : 200000 AUD, Lifetime : 150000 Euros, Lifetime : 75000 GBP
• Standard warranty : 2 years repair or replace, 3 years repair or replace for European Union countries

APC Back-UPS Pro 1500VA 865Watt

Sustainable Offer Status

• RoHS : Compliant
• REACH REACH : Contains No SVHCs
• PEP : Available in Documentation tab
• EOLI : Available in Documentation tab
