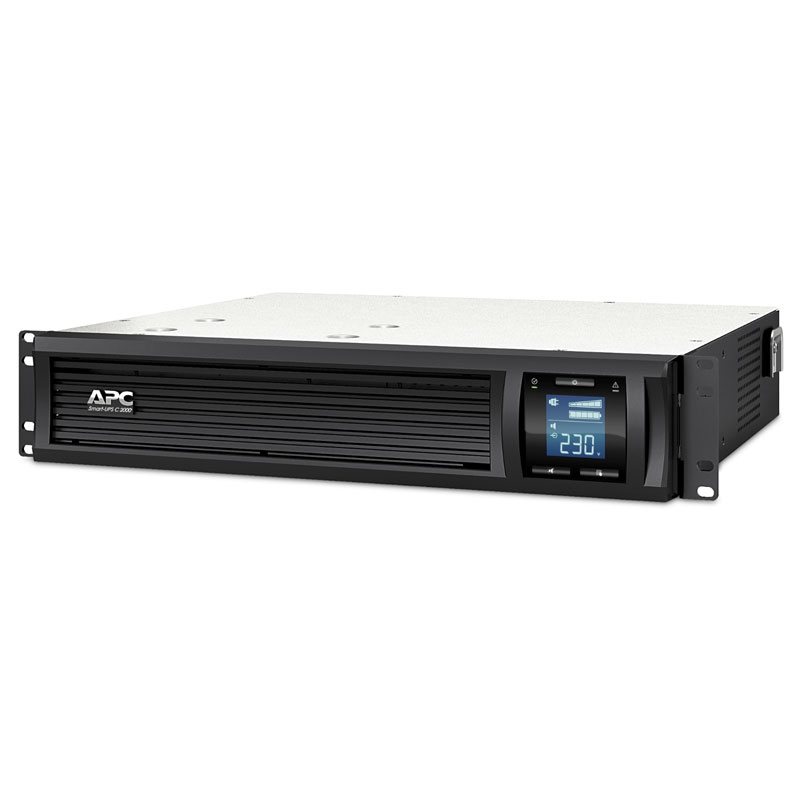

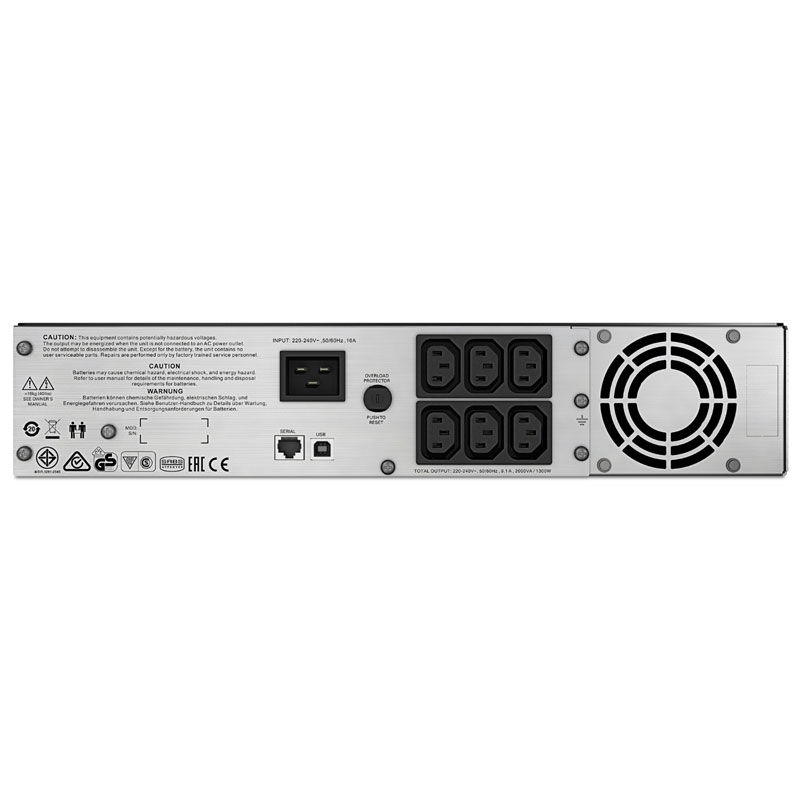

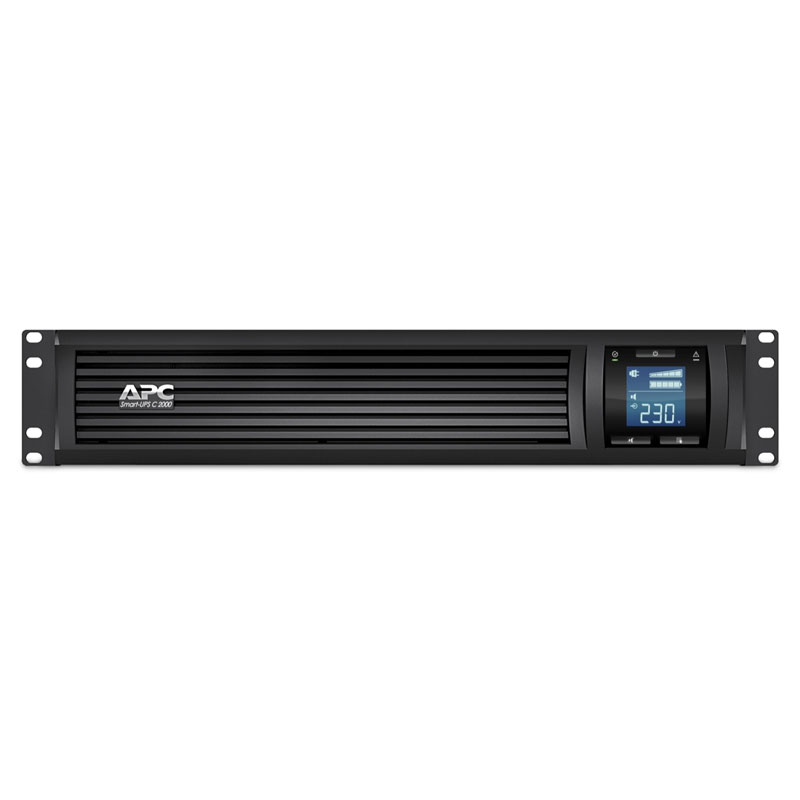

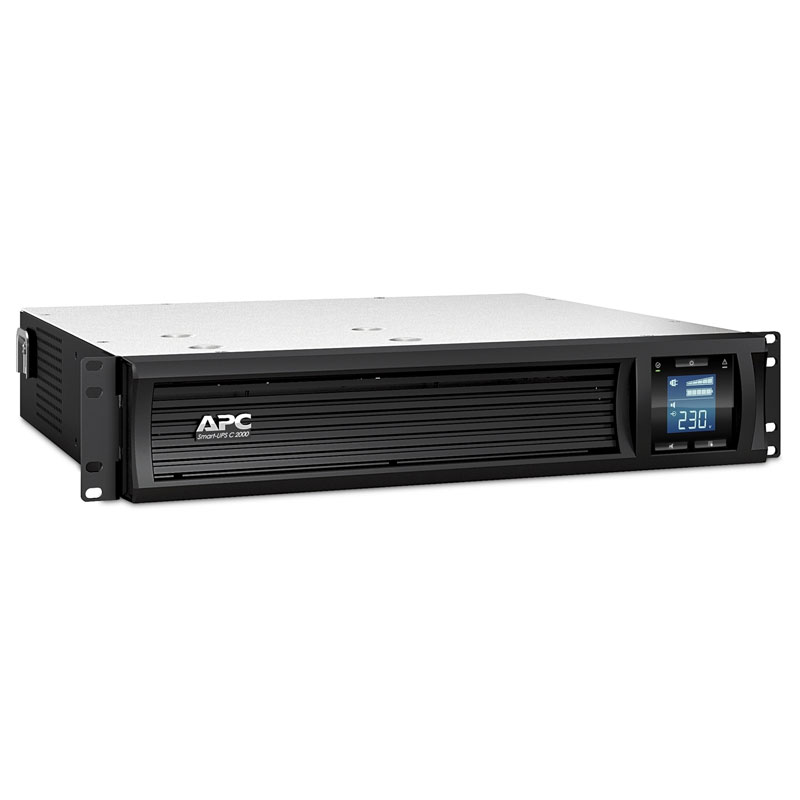

APC Smart-UPS C 2000VA 2U Rack LCD 230V (SMC2000I-2U)

APC Smart-UPS C 2000VA 2U Rack LCD 230V (SMC2000I-2U)

APC Smart-UPS C 2000VA 2U Rack LCD 230V | SMC2000I-2U

Output

• Output power capacity : 2000VA / 1300Watts
• Nominal Output Voltage : 230V
• Output Voltage Distortion : Less than 5% at full load
• Output Frequency (sync to mains) : 50/60Hz /- 3 Hz
• Topology : Line Interactive
• Waveform type : Sine wave
• Output Connections : (6) IEC 320 C13 (Battery Backup)
• Transfer Time : 8ms typical : 10ms maximum

Input

• Nominal Input Voltage : 230V
• Input frequency : 50/60 Hz /- 3 Hz (auto sensing)
• Input Connections : IEC-320 C14
• Input voltage range for main operations : 180 – 287V
• Input voltage adjustable range for mains operation : 170 – 300V
• Other Input Voltages : 220, 240

Batteries & Runtime

• Run Time : View Runtime Graph
• Extended runtime : 0
• Number of battery filled slots : 0
• Number of battery free slots : 0
• Battery recharge time : 3 h
• Number of battery replacement quantity : 1
• Battery life : 3…5 year(s)
• Replacement battery : APCRBC159
• Battery power in VAH : 432 VAh runtime
• battery charger power : 144 W rated

Communications & Management

• Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays
• Control panel : Multifunction LCD status and control console
• Free slots : 0
• Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering

• Surge energy rating : 300Joules
• Noise suppression : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

APC Smart-UPS C 2000VA 1300Watt 2U

Physical

• Maximum Height : 89mm , 8.9cm
• Maximum Width : 480mm , 48.0cm
• Maximum Depth : 470mm , 47.0cm
• Rack Height : 2U
• Net Weight : 26.2kg
• Shipping weight : 30.16kg
• Shipping Height : 250mm , 25.0cm
• Shipping Width : 590mm , 59.0cm
• Shipping Depth : 600mm , 60.0cm
• Color : Black
• Units per Pallet : 16.0

Environmental

• Operating Environment : 0 – 40 °C
• Operating Relative Humidity : 0 – 95 %
• Operating Elevation : 0-3000meters
• Storage Temperature : -15 – 45 °C
• Storage Relative Humidity : 0 – 95 %
• Storage Elevation : 0-15000meters
• Audible noise at 1 meter from surface of unit : 42.0dBA
• Online thermal dissipation : 81.0BTU/hr

Conformance

• Approvals : C-tick, CE, EAC, GOST, GS Mark, IRAM, SABS, VDE
• Equipment protection policy : Lifetime : $150000
• Standard warranty : 2 years repair or replace

Sustainable Offer Status

• RoHS : Compliant
• REACH REACH : Contains No SVHCs
