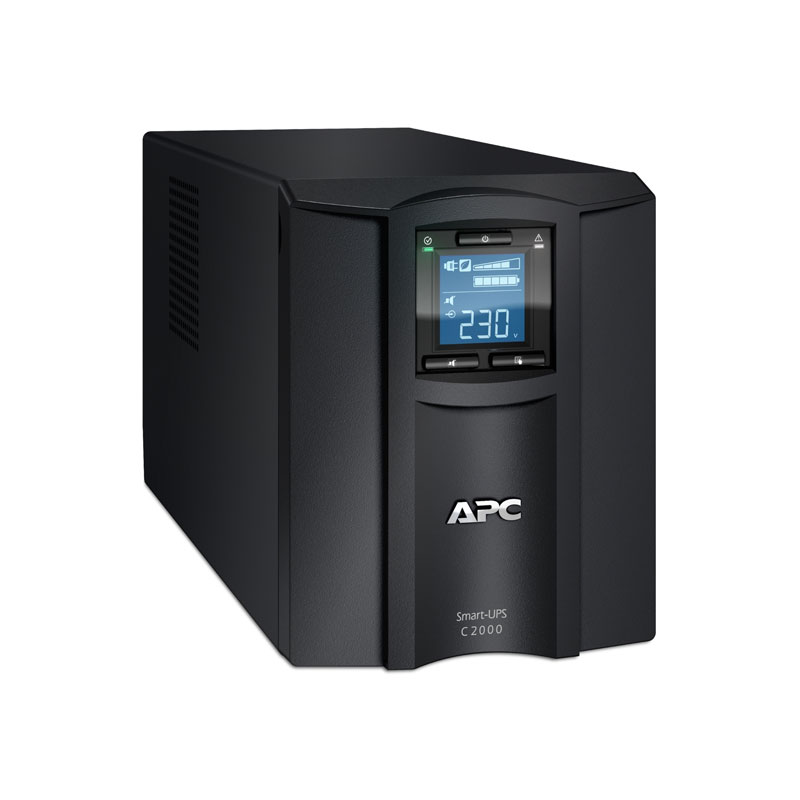

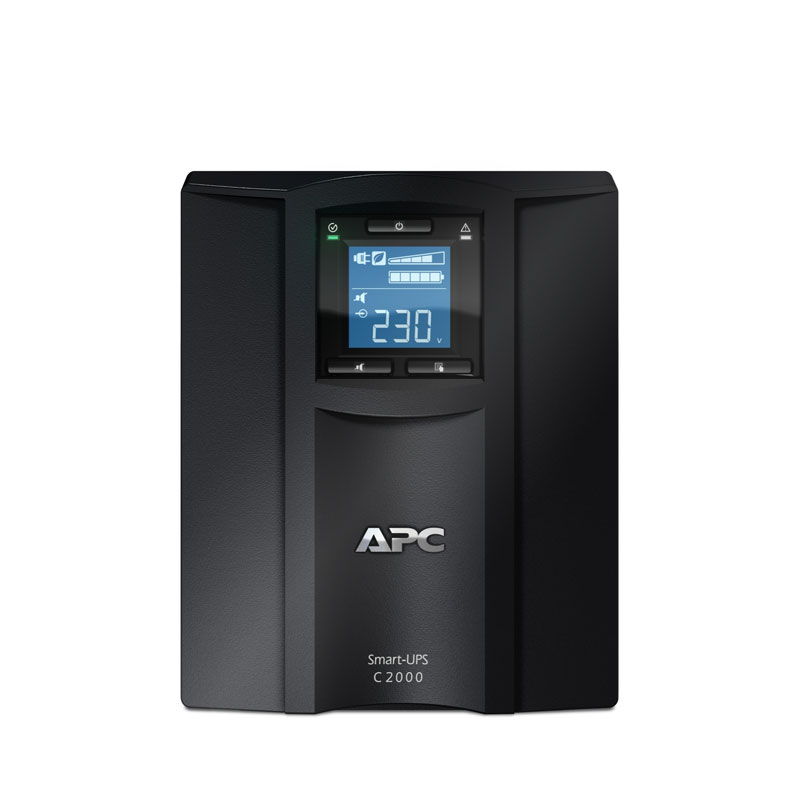

APC Smart-UPS C 2000VA LCD 230V

APC Smart-UPS C 1000VA LCD 230V (SMC2000I)

APC Smart-UPS C 2000VA LCD 230V | SMC2000I

Output

• Output power capacity : 2000VA / 1300Watts
• Nominal Output Voltage : 230V
• Output Voltage Distortion : Less than 5% at full load
• Output Frequency (sync to mains) : 50/60Hz /- 3 Hz
• Topology : Line Interactive
• Waveform type : Sine wave

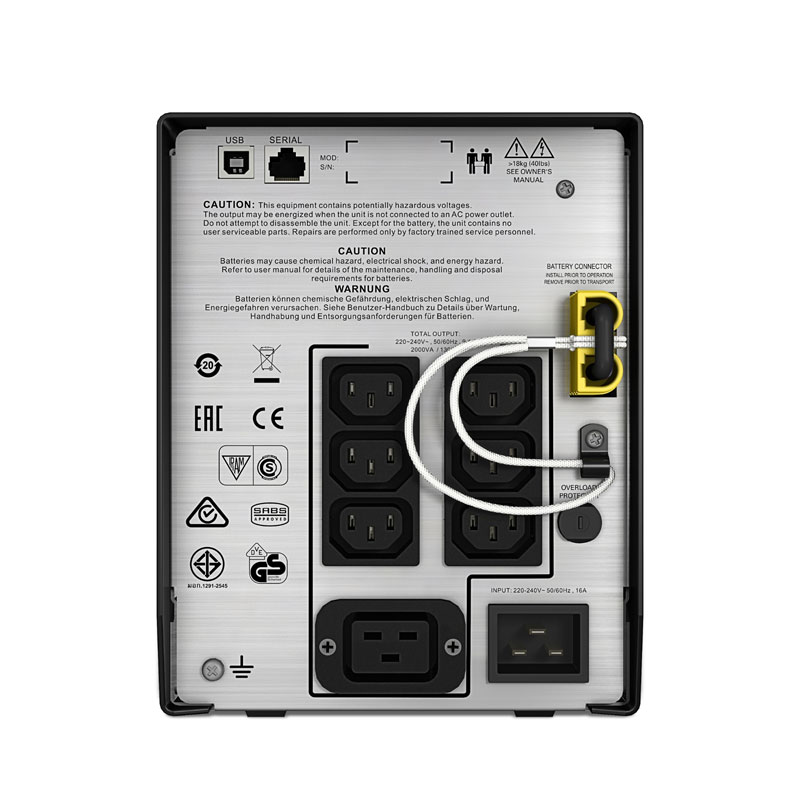

• Output Connections : (6) IEC 320 C13 (Battery Backup)
• Transfer Time : 6ms typical : 10ms maximum

Input

• Nominal Input Voltage : 230V
• Input frequency : 50/60 Hz /- 3 Hz (auto sensing)
• Input Connections : IEC-320 C14
• Input voltage range for main operations : 180 – 287V
• Input voltage adjustable range for mains operation : 170 – 300V
• Other Input Voltages : 220, 240

Batteries & Runtime

• Run Time : View Runtime Graph
• Extended runtime : 0
• Number of battery filled slots : 0
• Number of battery free slots : 0
• Battery recharge time : 3 h
• Number of battery replacement quantity : 1
• Battery life : 3…5 year(s)
• Replacement battery : APCRBC148
• Battery power in VAH : 499 VAh runtime
• battery charger power : 166 W rated

Communications & Management

• Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays
• Control panel : Multifunction LCD status and control console
• Free slots : 0
• Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering

• Surge energy rating : 300Joules
• Noise suppression : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height 216mm , 21.6cm
• Maximum Width 170mm , 17.0cm
• Maximum Depth 440mm , 44.0cm
• Net Weight 27.5kg
• Shipping weight 30.0kg
• Shipping Height 330mm , 33.0cm
• Shipping Width 370mm , 37.0cm
• Shipping Depth 590mm , 59.0cm
• Color Black
• Units per Pallet 24.0

Environmental

• Operating Environment 0 – 40 °C
• Operating Relative Humidity 0 – 95 %
• Operating Elevation 0-3000meters
• Storage Temperature -15 – 45 °C
• Storage Relative Humidity 0 – 95 %
• Storage Elevation 0-15000meters
• Audible noise at 1 meter from surface of unit 45.0dBA
• Online thermal dissipation 135.0BTU/hr

Conformance

• Approvals C-tick, CE, GOST, SABS, VDE
• Equipment protection policy 3 years : $250
• Standard warranty 2 years repair or replace

Sustainable Offer Status

• RoHS Compliant
• REACH REACH: Contains No SVHCs
