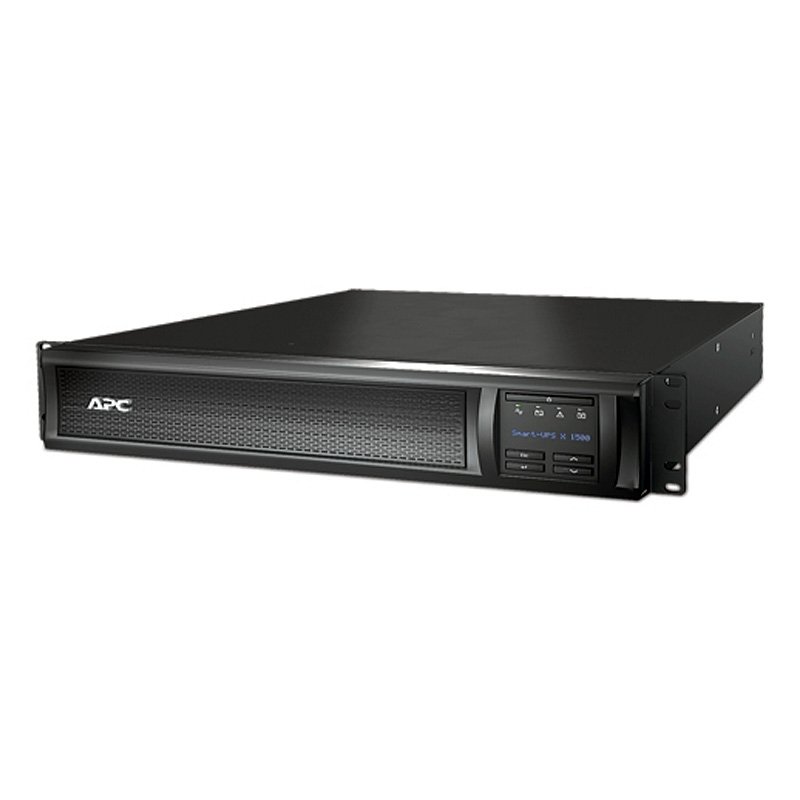

APC Smart-UPS X 1500VA/1200W Rack/Tower LCD 230V

รหัสสินค้า : SMX1500RMI2U
APC
Availability:

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง
สนใจ
เปรียบเทียบ
  • SMX Series, Rack/Tower convertible
  • มีหน้าจอ LCD และ SmartSlot สำหรับใส่ network card (ต้องซื้อเพิ่มเป็น option)
  • รองรับการเชื่อมต่อ battery pack สูงสุด 10 pack
  • 1200 Watts
  • 230V Input/Output
  • RS-232 Control
  • USB Connectivity
  • SmartCard Network Integration
  • Rack Mount Unit (2U Height)
  • Automatic Voltage Regulation (AVR)
  • Inteligent Battery Management
  • Battery Failure Notification
--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 46,000.00 ฿ 51,400.00
฿ 49,220.00 (ราคารวมภาษี)

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง

APC Smart-UPS X 1500VA/1200W Rack/Tower LCD 230V | SMX1500RMI2U

APC Smart-UPS X 1500VA Rack/Tower LCD 230V (SMX1500RMI2U)

APC Smart-UPS X 1500VA/1200W Rack/Tower LCD 230V | SMX1500RMI2U

APC Smart-UPS X 1500VA Rack/Tower LCD 230V

Output

  • Output power capacity : 1.2kWatts / 1.5kVA
  • Max Configurable Power (Watts) : 1.2kWatts / 1.5kVA
  • Nominal Output Voltage : 230V
  • Output Voltage Distortion : Less than 5%
  • Output Frequency (sync to mains) : 50/60Hz +/- 3 Hz
  • Topology : Line Interactive
  • Waveform type : Sine wave
  • Output Connections : (2) IEC Jumpers (Battery Backup) (8) IEC 320 C13 (Battery Backup)

Input

  • Nominal Input Voltage : 230V
  • Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections : IEC-320 C14
  • Cord Length : 1.83meters
  • Input voltage range for main operations : 160 – 286V
  • Input voltage adjustable range for mains operation : 151 – 302V
  • Number of Power Cords : 1

Batteries & Runtime

Communications & Management

  • Interface Port(s) : SmartSlot, USB
  • Control panel : Multi-function LCD status and control console
  • Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
  • Emergency Power Off (EPO) : Yes
  • Available SmartSlot™ Interface Quantity : 1

Surge Protection and Filtering

  • Surge energy rating : 645Joules
  • Filtering : Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height : 89MM, 8.9CM
  • Maximum Width : 432MM, 43.2CM
  • Maximum Depth : 490MM, 49.0CM
  • Rack Height : 2U
  • Net Weight : 24.82KG
  • Shipping weight : 30.0KG
  • Shipping Height : 246MM, 24.6CM
  • Shipping Width : 589MM, 58.9CM
  • Shipping Depth : 620MM, 62.0CM
  • Color : Black
  • Units per Pallet : 8.0

Environmental

  • Operating Temperature : 0 – 45 °C
  • Operating Relative Humidity : 0 – 95 %
  • Operating Elevation : 0-3000meters
  • Storage Temperature : -15 – 45 °C
  • Storage Relative Humidity : 0 – 95 %
  • Storage Elevation : 0-15000meters
  • Audible noise at 1 meter from surface of unit : 40.0dBA
  • Online thermal dissipation : 133.0BTU/hr

Conformance

  • Approvals : CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
  • Standard warranty : 3 years repair or replace (excluding battery) and 2 year for battery

Sustainable Offer Status

  • RoHS : Compliant
  • REACH : REACH: Contains No SVHCs
  • PEP : Available in Documentation tab
  • EOLI : Available in Documentation tab
SKU: SMX1500RMI2U Categories: , , ,
Brand
Brand
Product Type
Product Type

UPS
More
UPS VA

1500 VA

UPS Watts

1200 Watts

UPS Application

Network and Server

UPS Topology

UPS Power Factor

0.8

UPS Full Load Backup Time

6 min

UPS Half Load Backup Time

17 min

UPS External Battery

รองรับการต่อ Battery เพิ่ม

UPS Max Battery Pack Support

10 Pack

UPS Network Card Support

Network Card Support

UPS Software

PowerChute Business Edition (PCBE)

UPS Warranty

3Y Onsite 5×8
