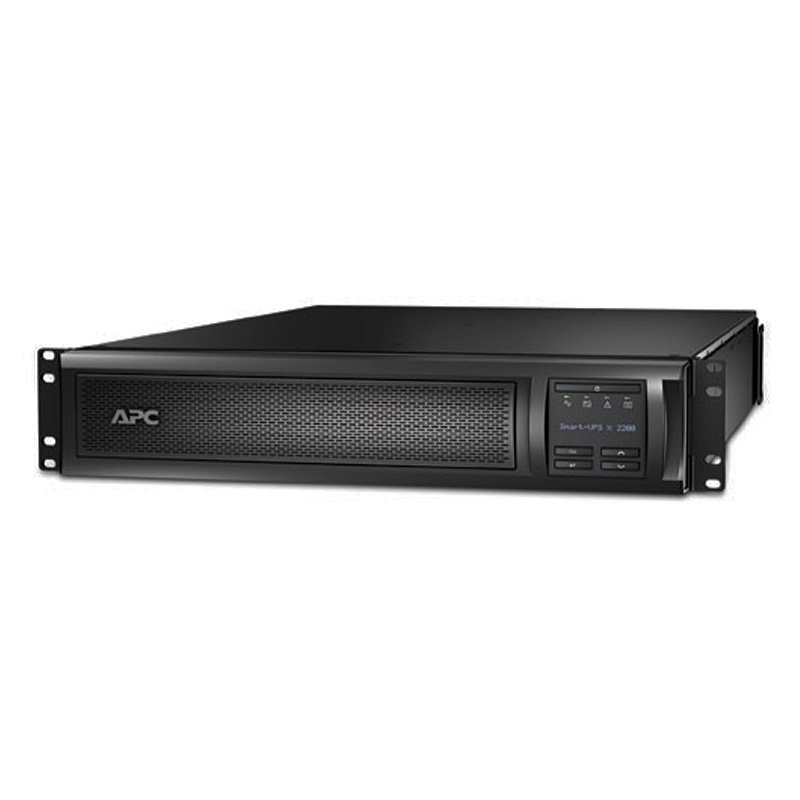

APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V

APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V (SMX2200RMHV2U)

APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V (SMX2200RMHV2U)

APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V

Output

• Output power capacity 1.98 KWatts / 2.2 kVA
• Max Configurable Power (Watts) 1.98 KWatts / 2.2 kVA
• Nominal Output Voltage 208V , 230V
• Output Voltage Distortion Less than 5%
• Output Frequency (sync to mains) 50/60Hz /- 3 Hz
• Other Output Voltages 220, 240
• Topology Line Interactive
• Waveform type Sine wave
• Output Connections
• (8) IEC 320 C13 (Battery Backup)
• (2) IEC Jumpers (Battery Backup)
• (1) IEC 320 C19 (Battery Backup)
• Transfer Time 2-4 ms
• Transfer Time 6ms typical : 10ms maximum

Input

• Nominal Input Voltage 208V , 230V
• Input frequency 50/60 Hz /- 3 Hz (auto sensing)
• Input Connections IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
• Cord Length 1.83meters
• Input voltage range for main operations 140 – 280V
• Number of Power Cords 1
• Other Input Voltages 220, 240
• Transfer Time 2-4 ms

Batteries & Runtime

• Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time 3hour(s)
• Replacement Battery SMX2200R2HVNC
• Expected Battery Life (years) 3 – 5
• RBC Quantity 1
• Extendable Run Time 1
• Battery Volt-Amp-Hour Capacity 702
• Extended Run Options APC-Smart-UPS-X-2200VA-Rack-Tower-LCD-200-240V
• Runtime View Runtime Graph
• SMX2200RMHV2U View Runtime Chart
• Efficiency View Efficiency Graph

Communications & Management

• Interface Port(s) SmartSlot , USB
• Control panel LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators, Multi-function LCD status and control console
• Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
• Emergency Power Off (EPO) Yes
• Available SmartSlot™ Interface Quantity 1

Surge Protection and Filtering

• Surge energy rating 645Joules
• Data Line Protection —
• Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height 85mm , 8.5cm
• Maximum Width 432mm , 43.2cm
• Maximum Depth 667mm , 66.7cm
• Rack Height 2U
• Net Weight 37.32kg
• Shipping weight 45.36kg
• Shipping Height 243mm , 24.3cm
• Shipping Width 596mm , 59.6cm
• Shipping Depth 869mm , 86.9cm
• Color Black
• # of Layers per Pallet 4.0
• # of Units per Layer per Pallet 2.0
• Pallet Weight 855.12lbs.
• Units per Pallet 8.0

Environmental

• Operating Environment 0 – 40 °C
• Operating Relative Humidity 0 – 95 %
• Operating Elevation 0-3000meters
• Storage Temperature -15 – 45 °C
• Storage Relative Humidity 0 – 95 %
• Storage Elevation 0-15000meters
• Audible noise at 1 meter from surface of unit 55.0dBA
• Online thermal dissipation 150.0BTU/hr

Conformance

• Approvals CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IEC 60950, IRAM, RCM, UL 1778, VDE
• Standard warranty 3 years repair or replace (excluding battery) and 2 year for battery, optional on-site warranties available, optional extended warranties available

Sustainable Offer Status

• RoHS : Compliant
• REACH REACH : Contains No SVHCs
• PEP : Available in Documentation tab
• EOLI : Available in Documentation tab
