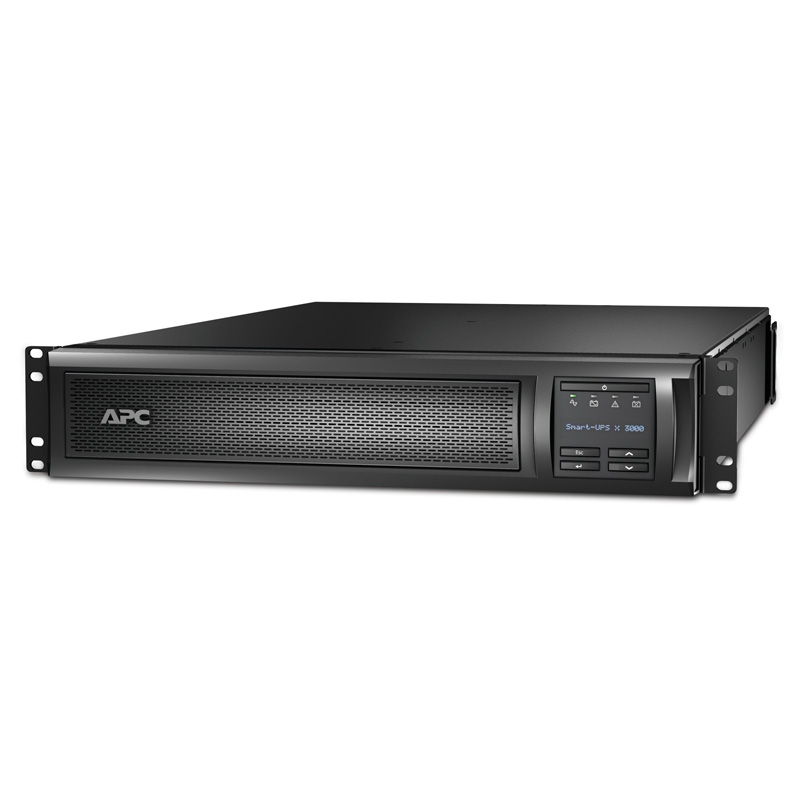

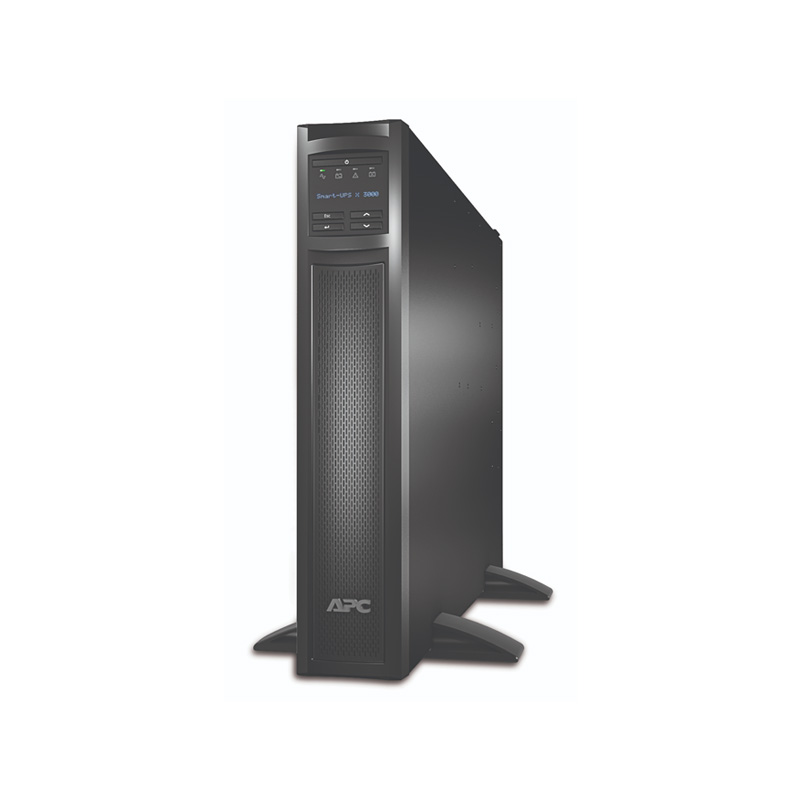

APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V

Output

• Output power capacity : 2.7 KWatts / 3.0 kVA
• Max Configurable Power (Watts) : 2.7 KWatts / 3.0 kVA
• Nominal Output Voltage : 230V
• Output Voltage Distortion : Less than 5%
• Output Frequency (sync to mains) : 50/60Hz +/- 3 Hz
• Other Output Voltages : 208, 220, 240
• Load Crest Factor : 3 : 1
• Topology : Line Interactive
  Waveform type : Sine wave

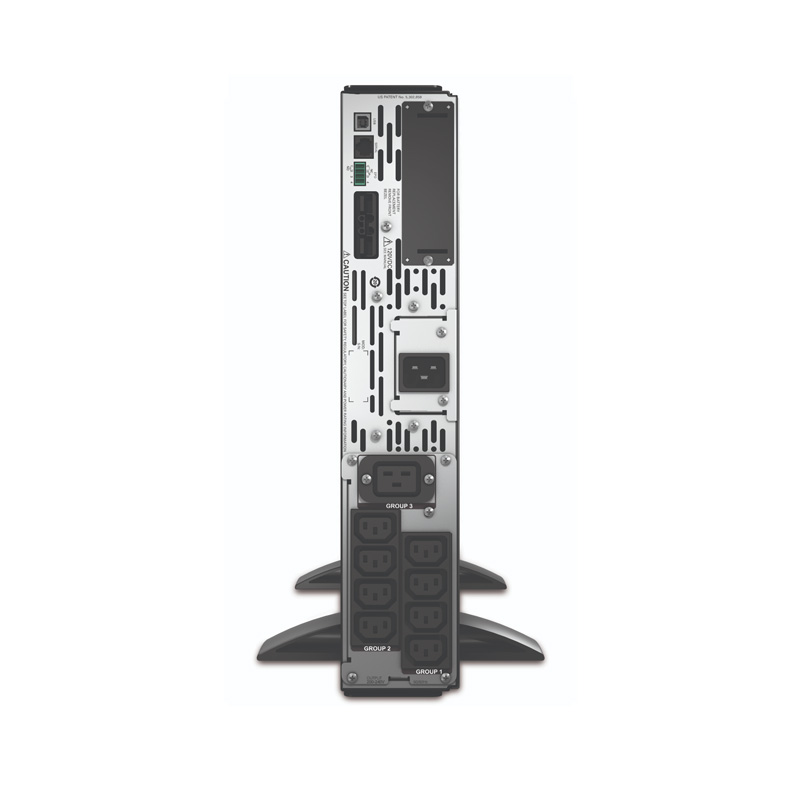

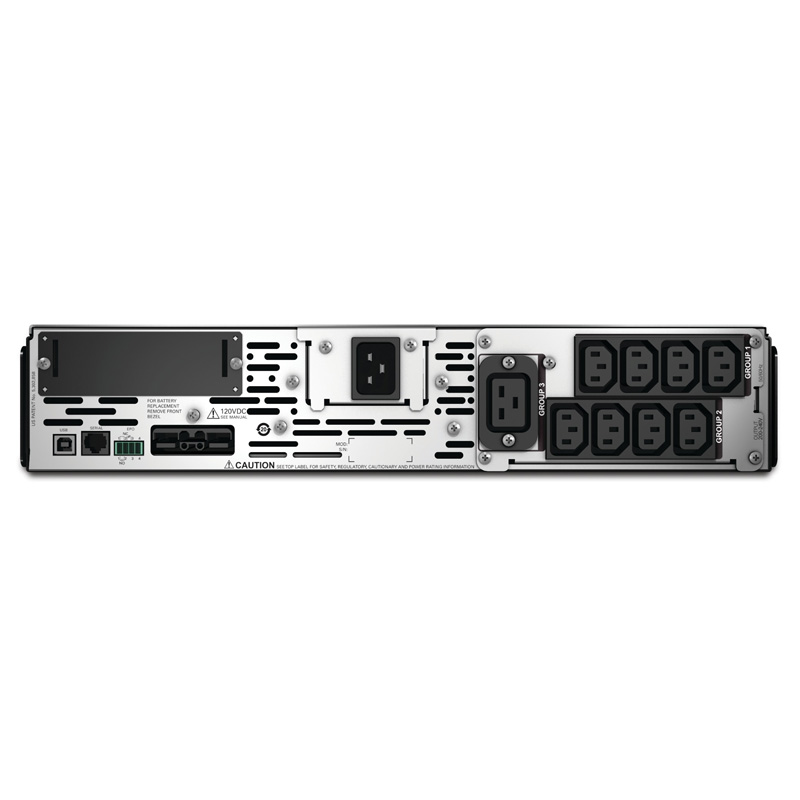

• Output Connections : (1) IEC 320 C19 (Battery Backup) ,  (8) IEC 320 C13 (Battery Backup) , (2) IEC Jumpers
• (Battery Backup)
• Transfer Time : 2-4 ms
• Transfer Time : 6ms typical : 10ms maximum

Input

• Nominal Input Voltage : 208V, 230V
• Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections : IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
• Cord Length : 6ft (1.83meters)
• Input voltage range for main operations : 140 – 280V
• Number of Power Cords : 1
• Other Input Voltages : 220, 240
• Transfer Time : 2-4 ms

Batteries & Runtime

• Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time : 3hour(s)
• Replacement Battery : APCRBC117
• Expected Battery Life (years) : 3 – 5
• RBC Quantity : 1
• Extendable Run Time : 1
• Extended Run Options : APC-Smart-UPS-X-3000VA-Rack-Tower-LCD-200-240V
• Runtime : View Runtime Graph View Runtime Chart
• Efficiency : View Efficiency Graph

Communications & Management

• Interface Port(s) : SmartSlot
• Control panel : LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multifunction LCD status and control console
• Audible Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays
• Emergency Power Off (EPO) : Yes
• Available SmartSlot™ Interface Quantity : 1

Surge Protection and Filtering

• Surge energy rating : 645Joules
• Data Line Protection : —
• Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height : 3.36inches (85mm, 8.5CM)
• Maximum Width : 17.0inches (432mm, 43.2CM)
• Maximum Depth : 26.26inches (667mm, 66.7CM)
• Rack Height : 2U
• Net Weight : 82.1lbs. (37.32KG)
• Shipping weight : 99.79lbs. (45.36KG)
• Shipping Height : 9.58inches (243mm, 24.3CM)
• Shipping Width : 23.48inches (596mm, 59.6CM)
• Shipping Depth : 34.23inches (869mm, 86.9CM)
• Color : Black
• Pallet Dimensions : 39.369999999999997inches
• # of Layers per Pallet : 4.0
• # of Units per Layer per Pallet : 2.0
• Pallet Weight : 855.12lbs.
• Units per Pallet : 8.0

Environmental

• Operating Temperature : 32 – 104 °F (0 – 40 °C)
• Operating Relative Humidity : 0 – 95 %
• Operating Elevation : 0-10000ft (0-3000meters)
• Storage Temperature : -15 – 45 °C
• Storage Relative Humidity : 0 – 95 %
• Storage Elevation : 0-50000ft (0-15000meters)
• Audible noise at 1 meter from surface of unit : 55.0dBA
• Online thermal dissipation : 184.0BTU/hr_

Conformance

• Approvals : CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, UL 1778, VDE
• Standard warranty : 3 years repair or replace (excluding battery) and 2 year for battery, optional on-site warranties available, optional extended warranties available

Sustainable Offer Status

• RoHS : Compliant
• REACH : REACH: Contains No SVHCs
• PEP : Available in Documentation tab
• EOLI : Available in Documentation tab
• Proposition 65 Warning : Available in Documentation tab
