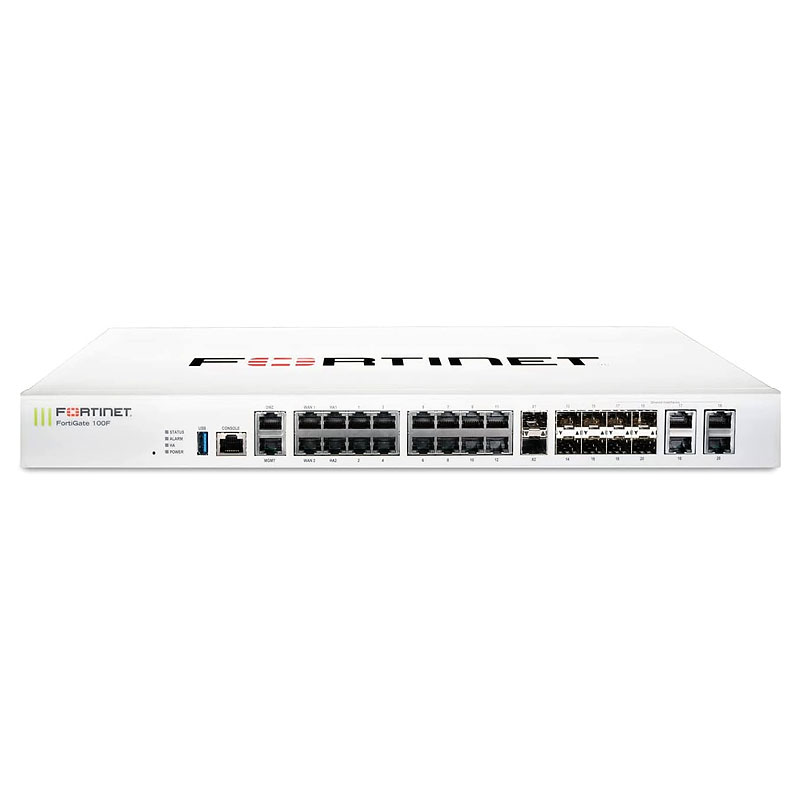

Fortigate Firewall 100F Hardware plus 24×7 Unified Threat Protection (UTP)

The FortiGate 100F series combines next generation firewall and SD-WAN capabilities for mid-sized to large enterprise distributed locations. Powered by purpose-built Secure SD-WAN ASIC, FortiGate 100F delivers optimal performance for business-critical applications along with best security effectiveness.

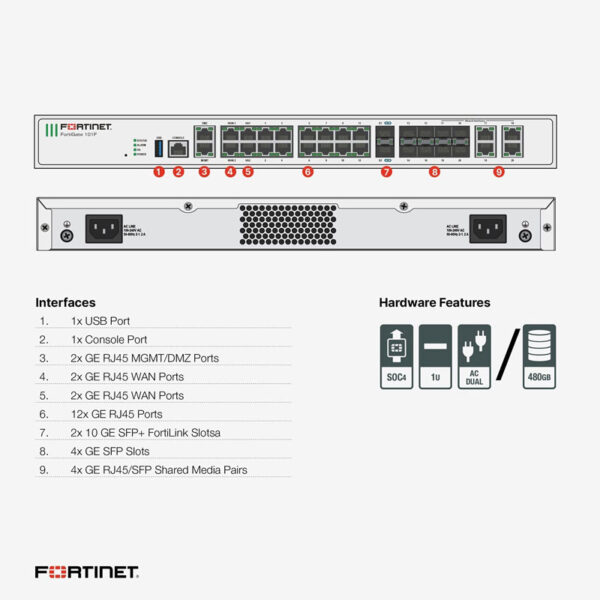

• GE RJ45 Ports : 12
• GE RJ45 Management/HA/DMZ Ports : 1/2/2001
• IPS Throughput 2 : 2.6 Gbps
• NGFW Throughput 2, 4 : 1.6 Gbps
• Threat Protection Throughput 2, 5 : 1 Gbps
• Firewall Throughput(1518 / 512 / 64 byte UDP packets) : 20 / 18 / 10 Gbps
• Firewall Latency (64 byte UDP packets) : 5 us
• Firewall Throughput (Packets Per Second) : 15 Mpps
• Concurrent Sessions (TCP) : 1.5 Million
• New Sessions/Second (TCP) : 56,000
• Firewall Policies : 10,000
• IPsec VPN Throughput (512 byte) 1 :11.5 Gbps
• Gateway-to-Gateway IPsec VPN Tunnels : 2,500
• Client-to-Gateway IPsec VPN Tunnels : 16,000
• SSL-VPN Throughput : 750 Mbps
• Maximum Number of FortiSwitches Supported : 24
• Maximum Number of FortiAPs Total / Tunnel Mode) : 128 / 64
• Maximum Number of FortiTokens : 5,000
• Maximum Number of Registered FortiClients : 600

Security

• Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
• Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
• Prevent and detect against known and unknown attacks using continuous threat intelligence from AI powered FortiGuard Labs security services

Performance

• Delivers industry’s best threat protection performance and ultra-low latency using purpose built-security processor (SPU) technology
• Provides industry-leading performance and protection for SSL encrypted traffic

Certification

• Independently tested and validated best security effectiveness and performance
• Received unparalleled third-party certifications from NSS Labs, ICSA, Virus Bulletin and AV Comparatives

Networking

• Best of Breed SD-WAN capabilities to enable application steering using WAN path control for high quality of experience
• Delivers advanced networking capabilities, high-performance, and scalable IPsec VPN capabilities to consolidate networking and security

Management

• Includes management console that’s effective, simple to use, and provides comprehensive network automation & visibility.
• Provides Zero Touch Integration with Security Fabric’s Single Pane of Glass Management
• Predefined compliance checklist analyzes the deployment and highlights best practices to improve overall security posture

Security Fabric

• Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing and automated remediation
• Automatically builds Network Topology visualizations which discover IoT devices and provide complete visibility into Fortinet and Fabric-ready partner products
