Lenovo ThinkSystem SR250 V2 Intel Xeon E-2334 16GB 5350-8i 2x4TB SAS 2x450W

รหัสสินค้า : 7D7QSBDU00
Lenovo
Availability:

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


  • Intel Xeon E-2334G 4C/8T 3.4GHz 8MB Cache 65W Processor
  • 16GB (1x16GB) TruDDR4 3200 MHz (2Rx8, 1.2V) ECC UDIMM
  • ThinkSystem RAID 5350-8i PCIe 12Gb Adapter
  • (Support RAID-0/1/10/5)
  • ThinkSystem SR250 V2 4×3.5″ Hot Swap SAS/SATA Backplane Kit
  • 2x 4TB 3.5″ 7.2K SAS 12Gb Hot Swap 512n HDD
  • ThinkSystem SR250 V2 x8/x8 PCIe Gen4 Riser
  • 2x 450W(230V/115V) Platinum Hot-Swap Power Supply
  • 2x 2.8m, 10A/120V, C13 to NEMA 5-15P (US) Line Cord
  • ThinkSystem XClarity Controller Standard to Enterprise Upgrade
  • ThinkSystem Enclosure Short Rack Rail Kit
  • 3 Years warranty 24x7x4, Part and Labor, On-site
  • ไม่รวม Keyboard and Mouse

รับสิทธิ์แลกซื้อ UPS ในราคา

รับสิทธิ์แลกซื้อ Windows Server ในราคา (ฟรีติดตั้ง)


--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 73,500.00 ฿ 75,400.00
฿ 78,645.00 (ราคารวมภาษี)

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


(7D7QSBDU00) Lenovo SR250 V2 E-2334 16GB 2x4TB

Lenovo ThinkSystem SR250 V2 Intel Xeon E-2334 16GB 5350-8i 2x4TB SAS 2x450W (7D7QSBDU00)

Specification

  • Intel Xeon E-2334G 4C/8T 3.4GHz 8MB Cache 65W Processor
  • 16GB (1x16GB) TruDDR4 3200 MHz (2Rx8, 1.2V) ECC UDIMM
  • ThinkSystem RAID 5350-8i PCIe 12Gb Adapter
  • (Support RAID-0/1/10/5)
  • ThinkSystem SR250 V2 4×3.5″ Hot Swap SAS/SATA Backplane Kit
  • 2x 4TB 3.5″ 7.2K SAS 12Gb Hot Swap 512n HDD
  • ThinkSystem SR250 V2 x8/x8 PCIe Gen4 Riser
  • 2x 450W(230V/115V) Platinum Hot-Swap Power Supply
  • 2x 2.8m, 10A/120V, C13 to NEMA 5-15P (US) Line Cord
  • ThinkSystem XClarity Controller Standard to Enterprise Upgrade
  • ThinkSystem Enclosure Short Rack Rail Kit
  • 3 Years warranty 24x7x4, Part and Labor, On-site
  • ไม่รวม Keyboard and Mouse

รับสิทธิ์แลกซื้อ UPS ในราคา

รับสิทธิ์แลกซื้อ Windows Server ในราคา (ฟรีติดตั้ง)


Lenovo ThinkSystem SR250 V2 Rack Server 1U

Lenovo ThinkSystem SR250 V2 Rack Server 1U

Powerful 1U server for your evolving needs

The ideal single-socket 1U rack server for growing businesses offering power, reliability, and flexibility for space constrained installations.

High reliability and security



The Lenovo ThinkSystem SR250 V2 offers reliability, and security without sacrificing performance. This single-processor rack server, in a compact 1U form factor, is built for expanding businesses or edge deployment.

With an increase in performance of up to 17% above previous generations, the next-generation Intel® Xeon® E-2300 processors provide higher workload performance at an entry-level price point.



Flexible, scalable and manageable



The ThinkSystem SR250 V2 offers flexibility via multiple configurations with TruDDR4 memory, GPU support, and an array of storage options. Ideal for IT infrastructure, web serving, virtualization, and edge applications.

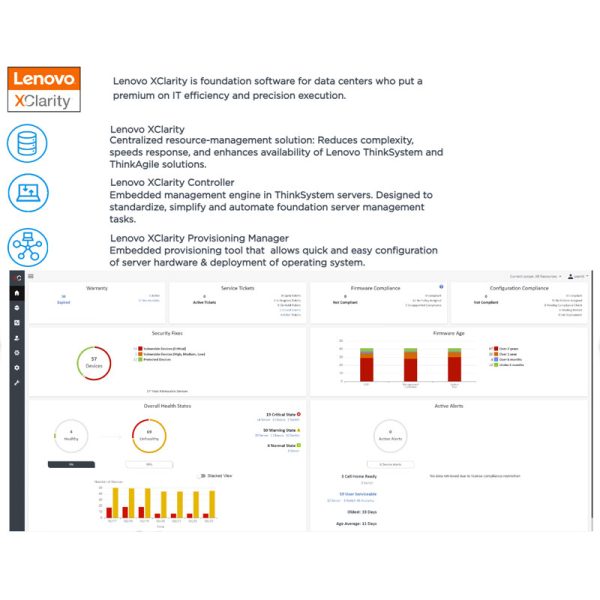

The SR250 V2 includes the Lenovo XClarity Controller, that standardizes and automates server management tasks.

The XClarity Administrator virtualized application centrally manages your ThinkSystem servers, storage, and networking, lowering costs and speeding infrastructure provisioning.

Energy-efficient powerhouse



The ThinkSystem SR250 V2 provides enterprise-level, 8 core performance while using no more than 95W CPUs. It’s shorter-depth rack accommodates the space-constrained environments found in many SMB’s, remote/branch offices, and edge applications.

The ThinkSystem SR250 V2 is an ideal solution when your business needs a server to handle large workloads in a small footprint.

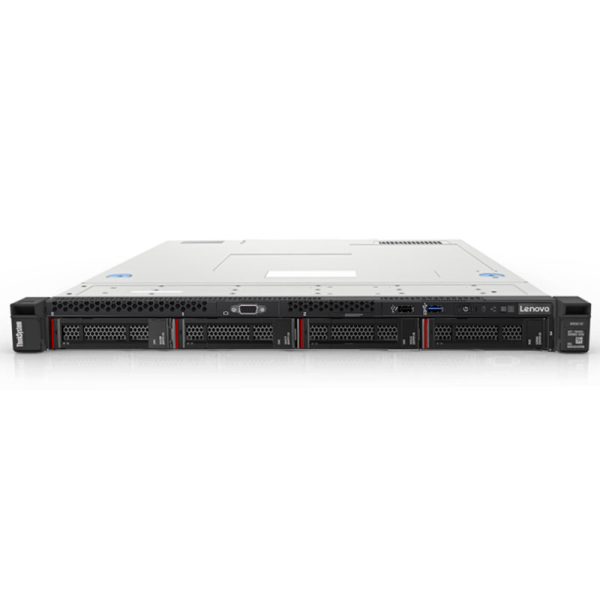

Lenovo-ThinkSystem-SR250-V2-SFF-Front

Tech Specs

Form Factor 1U rack; Height: 43mm (1.7 inches), width: 435mm (17.1 inches), depth: 498mm (19.6 inches)
Processor 1x Intel® Xeon® processor E-2300 or 1x Intel® Pentium® processor, up to 8 cores at 95W
Memory Up to 128GB in 4x DIMM slots using 32GB UDIMMs 3200MHz TruDDR4
Disk Bay Combinations

4x 3.5-inch simple-swap SATA drives

3x 3.5-inch simple-swap SATA drives plus 1x 3.5-inch simple-swap NVMe drive

4x 3.5-inch hot-swap SATA/SAS drives

8x 2.5-inch hot-swap SATA/SAS drives

10x 2.5-inch hot-swap SATA/SAS drives Optional SATA Mirrored M.2 boot drive kit; installs in a PCIe slot

Expansion Slots

2x PCIe Gen4 x8 slots or 1x PCIe Gen4 x16 slot

1x PCIe Gen4 x8 (x4 interface) internal RAID slot

RAID Support

Intel® VROC Software RAID supports simple swap and hot swap

Multiple RAID configurations (common with other ThinkSystem servers)

Network Interface 2x GbE on-board ports (Broadcom BCM5720); 1x GbE port dedicated for XCC management
Ports

Front: 1x USB 3.2 Gen 1 (5Gbps), 1x USB 2.0 port for local management using the XCC Mobile app

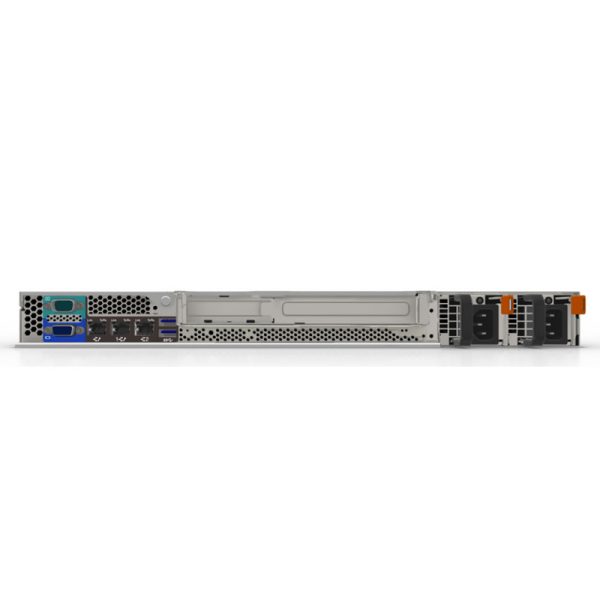

Rear: 2x USB 3.2 G2 (10Gb) ports, 2x RJ45 Gigabit Ethernet ports, 1x 1GbE dedicated

XCC port for remote management, 1x Serial port and 1x VGA port

Systems Management and Security Lenovo XClarity Controller; Embedded TPM 2.0;Optional front security bezel
Power Supplies Supports a single fixed power supply or a redundant pair of hot-swap power supplies
OS Support Microsoft Windows Server 2022, Red Hat, SUSE, and VMware ESXi. Visit lenovopress.com/osig for more information.
Limited Warranty 1-year or 3-year warranty
Brand
Brand

Product Type
Product Type

Server

Chassis Type
Form Factor

Rack 1U Server

Operating System
Operating System

No Operarting System

Processor
Processor

Intel Xeon E-2334 (3.4GHz, 4C/8T, 8MB Cache)

CPU Speed

CPU Core

CPU Cache

8 MB

Memory
Memory

16GB (1x16GB) DDR4 UDIMM ECC

Optical Drive
Optical Drive

None

Power Supply
Power Supply

2x 450W Hot-Plug Power Supply

Warranty
Warranty

3 Years Warranty 24×7 (Part/Labor/Onsite) Service

Server
CPU Socket

1 Socket CPU Support

Storage Controller

ThinkSystem RAID-5350-8i (RAID-0/1/10/5)

Chassis

4x 3.5"

Disk Bays

4x 3.5" SAS/SATA Hot-Plug

Disks

2x 4TB 7.2K NLSAS 12Gbps

M.2 Drives

None

System Management

xClarity Controller Enterprise

More
Networking

2x 1GbE RJ-45

Weight

23.56 kg

Dimensions

56.6 × 17.5 × 43 cm
