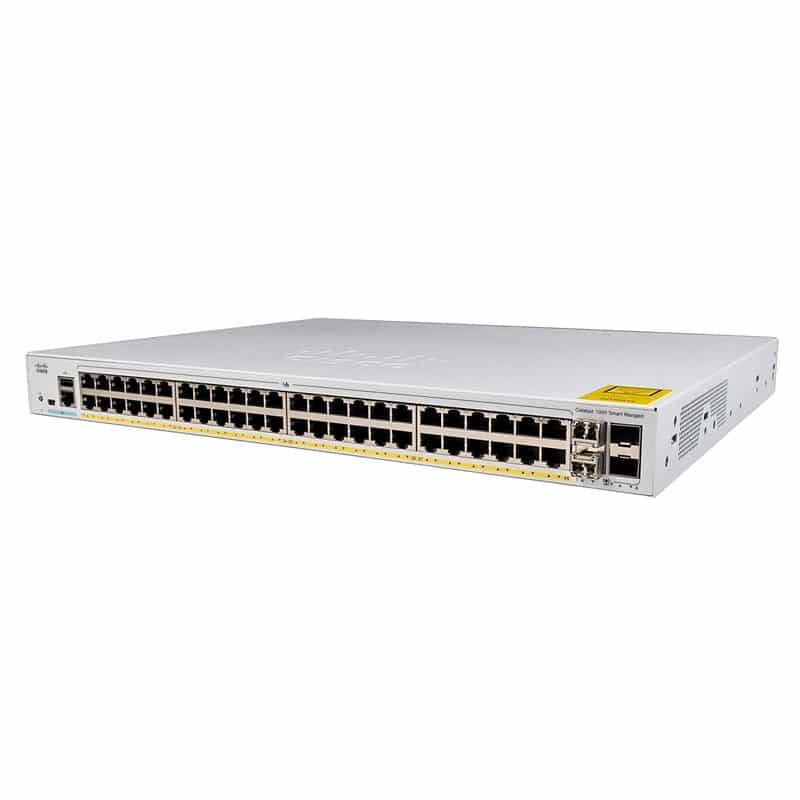

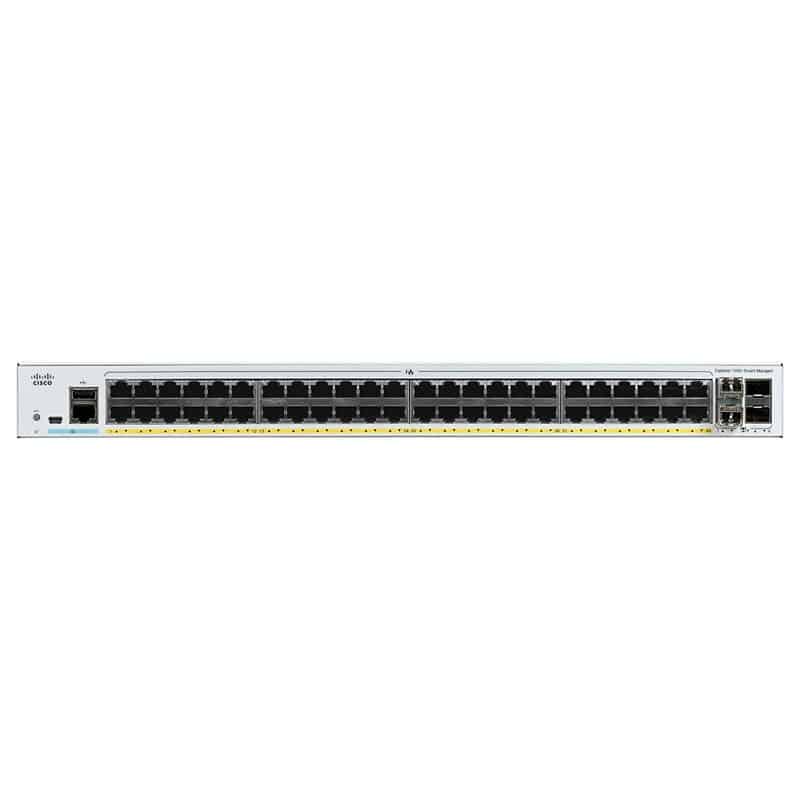

Cisco Catalyst 1000 48port GE, POE, 4x1G SFP Switch

รหัสสินค้า : C1000-48P-4G-L
Cisco
Availability:

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


  • 48x 10/100/1000 Ethernet PoE+ and 370W PoE budget ports, 4x 1G SFP uplinks
  • Uplink interfaces : 4 SFP
  • CPU : ARM v7 800 MHz
  • DRAM : 512 MB
  • Flash memory : 256 MB
  • Forwarding bandwidth : 52 Gbps
  • Switching bandwidth : 104 Gbps
  • Forwarding rate(64—byte L3 packets) : 77.38 Mpps

--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 54,600.00฿ 75,100.00
฿ 58,422.00฿ 80,357.00 (ราคารวมภาษี)




Cisco Catalyst 1000 48port GE, POE, 4x1G SFP Switch

C1000-48P-4G-L Overview

Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco® Catalyst® 1000 operate on Cisco IOS® Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.

Cisco Catalyst 1000 48-port GE POE 4x1G SFP Quick Specs

Table 1 shows the Quick Specs.

Product Code

C1000-48P-4G-L

Description

48x 10/100/1000 Ethernet PoE+ and 370W PoE budget ports, 4x 1G SFP uplinks

Gigabit Ethernet ports

48

Uplink interfaces

4 SFP

PoE+power budget

370W

Fanless

N

Dimensions (WxDxH in inches)

17.5 x 13.78 x 1.73

CPU

ARM v7 800 MHz

DRAM

512 MB

Flash memory

256 MB

Forwarding bandwidth

52 Gbps

Switching bandwidth

104 Gbps

Forwarding rate(64—byte L3 packets)

77.38 Mpps



Cisco Catalyst 1000 48-port GE POE 4x1G SFP Product Details

The Cisco Catalyst 1000 Series Switches provides these features:

* 8, 16, 24, or 48 Gigabit Ethernet data or PoE+ ports with line-rate forwarding

* 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP)/RJ 45 Combo uplinks or 4 fixed 0 Gigabit Ethernet Enhanced SFP (SFP+) uplinks

* Perpetual PoE+ support with a power budget of up to 740W

* CLI and/or intuitive web UI manageability options

* Network monitoring through sampled flow (sFlow)

* Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard

* Compact fanless models available with a depth of less than 13 inches (33 cm)

*Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console access

* Reliability with a higher Mean Time Between Failures (MTBF) and an enhanced limited lifetime warranty support(E-LLW)





Brand
Brand

Product Type
Product Type

Switch

Warranty
Warranty

Limited Lifetime

More
Total Port

48x POE+
4x 1G SFP

Network Downlink

48 Ports

Network Uplink

1G Uplink

PoE Support

POE

Hardware Support

1 Years 8x5xNBD
2 Years 8x5xNBD
3 Years 8x5xNBD
Standard

Throughput

77.38 Mpps

Switch Capacity

104 Gbps

MAC address

up to 16K addresses

Datasheet
