Cisco Catalyst 9200 48-port PoE+ Network Advantage Switch

รหัสสินค้า : C9200-48P-A
Cisco
Availability:

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


  • Downlinks total 10/100/1000 or PoE+ copper ports : 48 Ports PoE+
  • Uplink configuration : Modular uplink options
  • Default primary AC power supply : PWR-C6-1KWAC
  • Software : Network Advantage
  • Stacking bandwidth : 160 Gbps
  • DRAM : 4 GB
  • Flash : 4 GB
  • Switching capacity : 176 Gbps
  • Forwarding rate : 130.95 Mpps

--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 149,500.00฿ 352,800.00
฿ 159,965.00฿ 377,496.00 (ราคารวมภาษี)

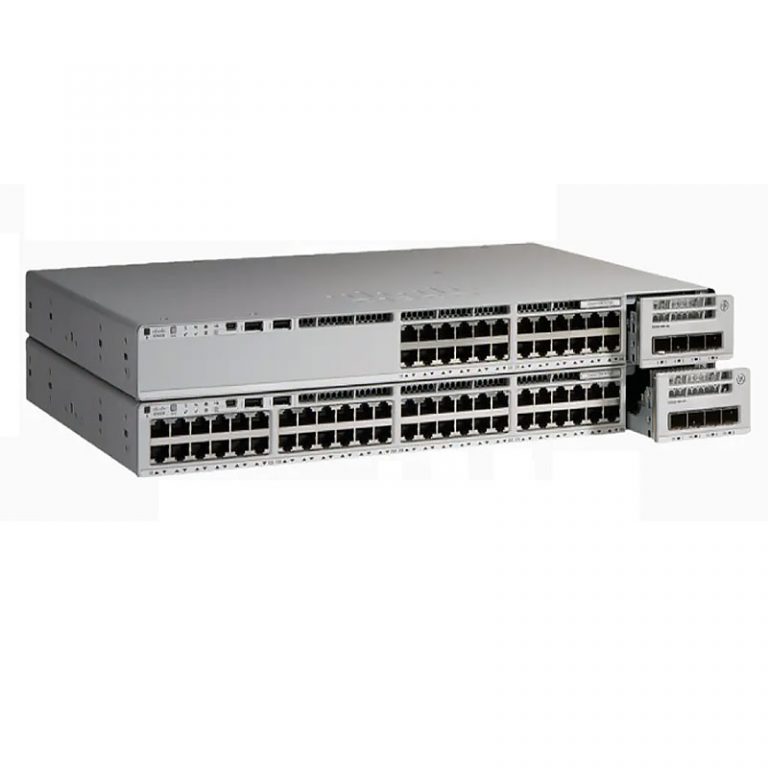

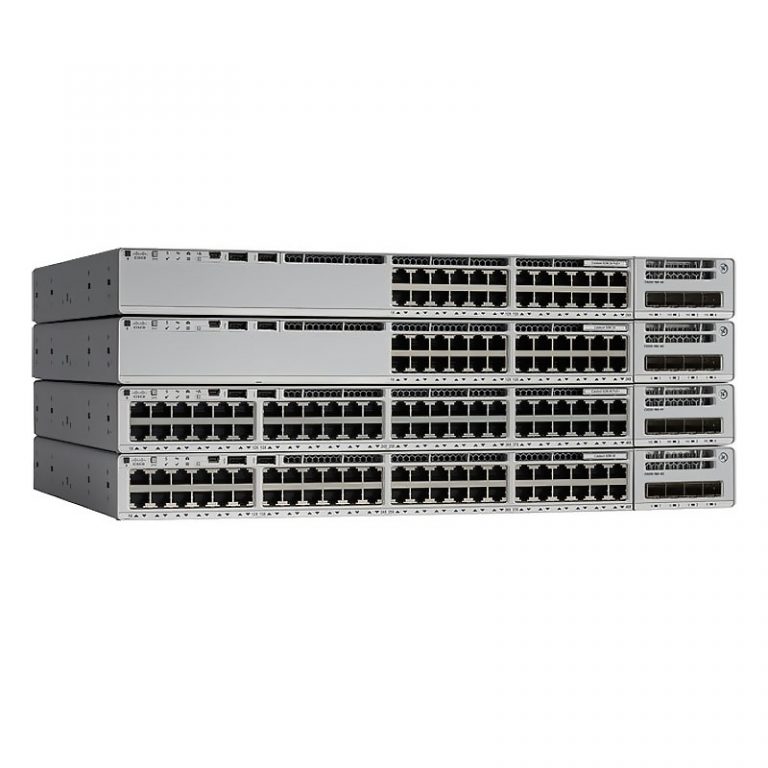

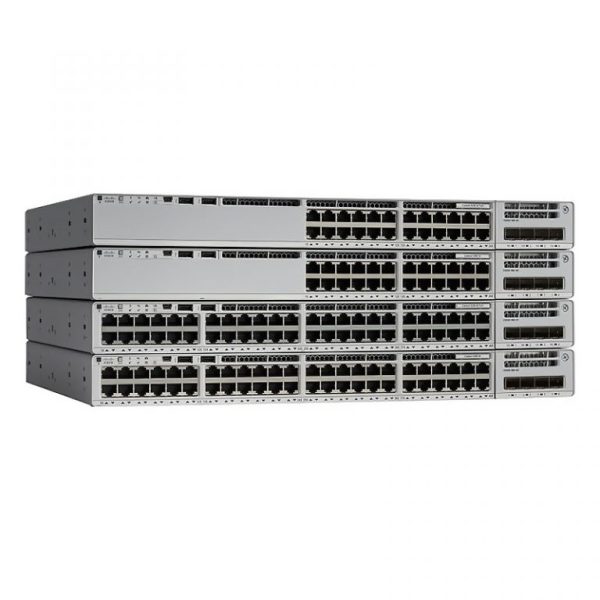

Cisco Catalyst 9200 48-port PoE+ Network Advantage Switch

C9200-48P-A Overview

C9200-48P-A is the Catalyst 9200 48-port PoE+ Switch, with Network Advantage software. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.



Cisco Catalyst 9200 48-port PoE+ Switch Quick Specs

Table 1 shows the Quick Specs.

Model

C9200-48P-A

Downlinks total 10/100/1000 or PoE+ copper ports

48 ports PoE+

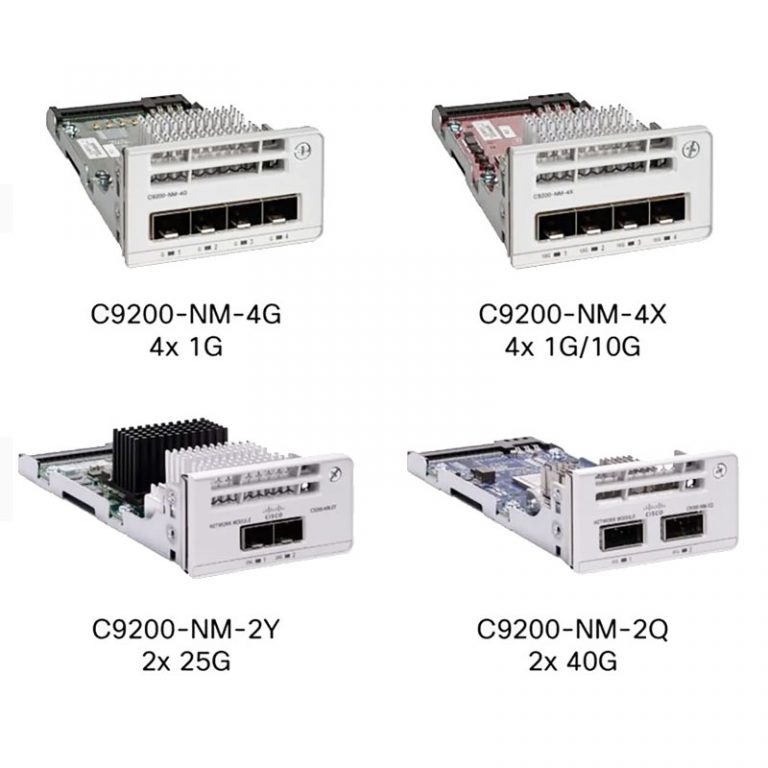

Uplink configuration

Modular uplink options

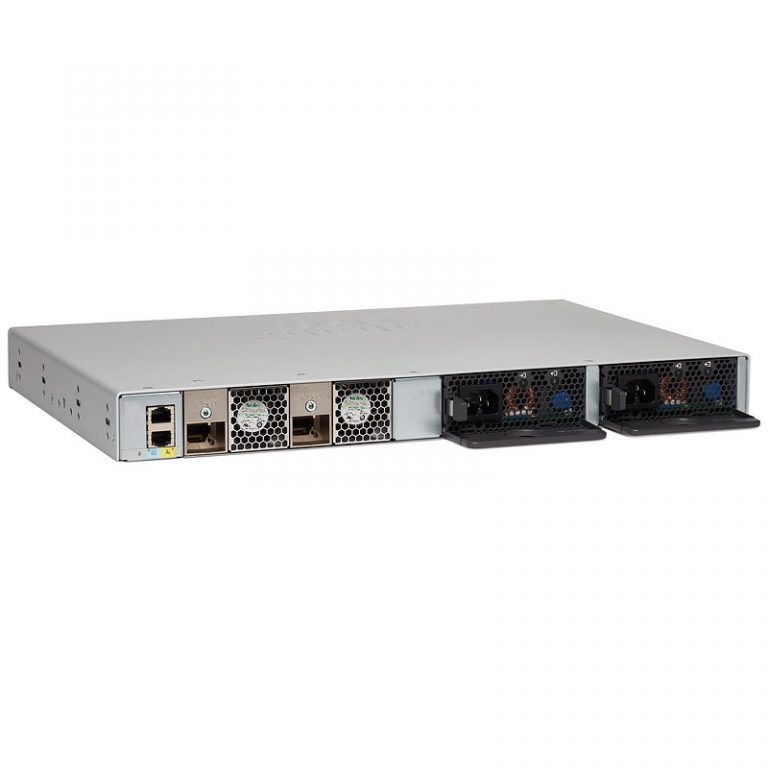

Default primary AC power supply

PWR-C6-1KWAC

Fans

FRU redundant

Software

Network Advantage

Stacking bandwidth

160 Gbps

DRAM

4 GB

Flash

4 GB

Switching capacity

176 Gbps

Forwarding rate

130.95 Mpps

Chassis Dimensions

1.73 x 17.5 x 13.8 in

4.4 x 44.5 x 35.0 cm



Cisco Catalyst 9200 48-port PoE+ Switch Product Details

Catalyst 9200 series provides these highlights:

  • Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
  • Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
  • Flexible downlink options with data or PoE+
  • Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
  • UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
  • Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
  • Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
  • Advanced network monitoring using Full Flexible NetFlow
  • Cisco Software-Defined Access (SD-Access):
    • Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
    • Network assurance and improved resolution time through Cisco DNA Center™
  • Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
  • Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
  • ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries



Brand
Brand

Product Type
Product Type

Switch

Warranty
Warranty

Limited Lifetime

More
Total Port

48x POE+

Network Downlink

48 Ports

Network Uplink

Modular Uplink Options

PoE Support

POE

DNA License

3 Years
5 Years
None

Hardware Support

1 Years 8x5xNBD
2 Years 8x5xNBD
3 Years 8x5xNBD
Standard

Throughput

130.95 Mpps

Switch Capacity

176 Gbps

MAC address

up to 32K addresses
