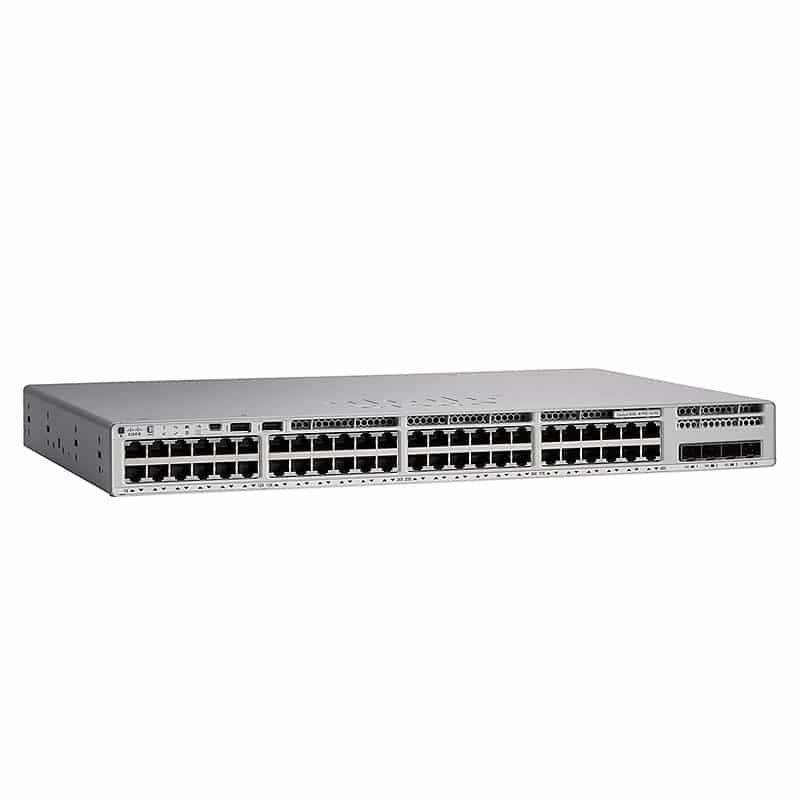

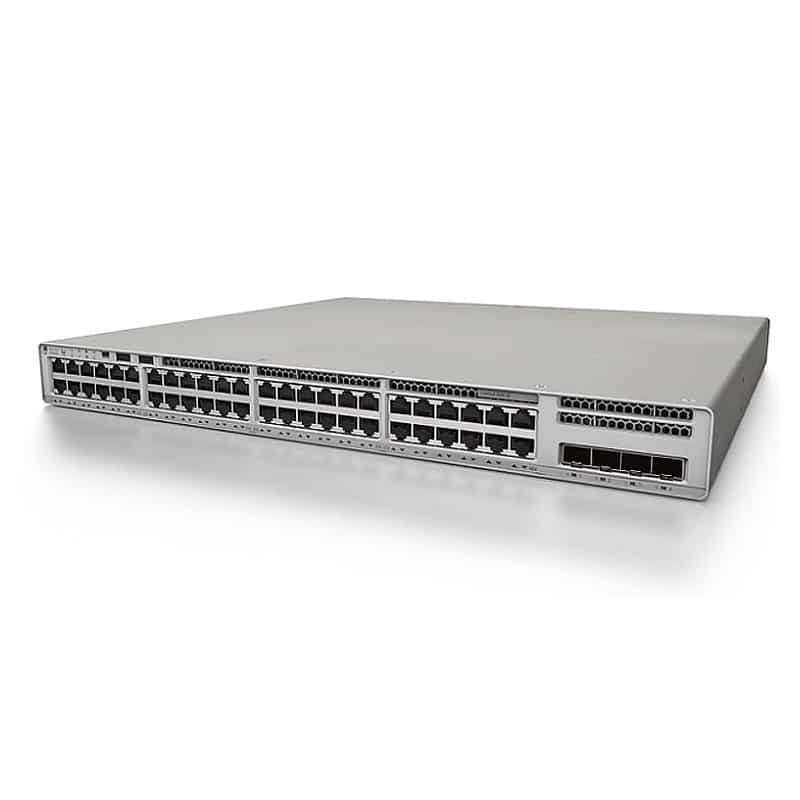

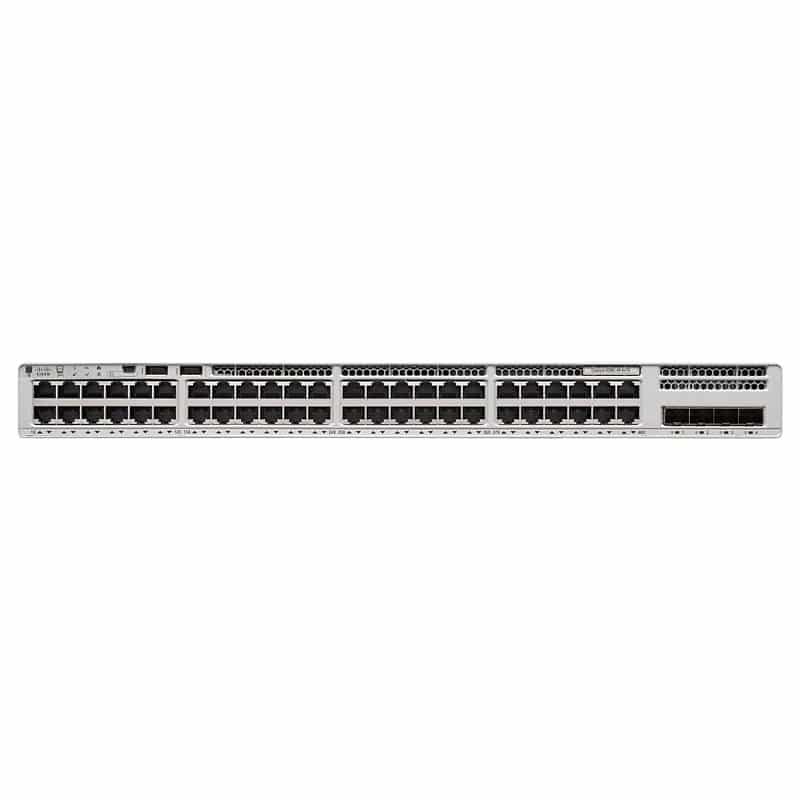

Cisco Catalyst 9200L 48-port data 4x10G Network Essentials Switch

รหัสสินค้า : C9200L-48T-4X-E
Cisco
Availability:

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


  • Downlinks total 10/100/1000 or PoE+ copper ports : 48 ports data
  • Uplink configuration : 4x 10G fixed uplinks
  • Default primary AC power supply : PWR-C5-125WAC
  • Software : Network Essentials
  • Stacking bandwidth : 80 Gbps
  • DRAM : 2 GB
  • Flash : 4 GB
  • Switching capacity : 176 Gbps
  • Forwarding rate : 130.95 Mpps

--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 106,700.00฿ 192,000.00
฿ 114,169.00฿ 205,440.00 (ราคารวมภาษี)




select-button



Cisco Catalyst 9200L 48-port data 4x10G Network Essentials Switch

C9200L-48T-4X-E Overview

C9200L-48T-4X-E is the Catalyst 9200L 48-port Data 4x1G uplink Switch, with Network Essentials software. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.



Cisco Catalyst 9200L 48-port data 4x10G Quick Specs

Table 1 shows the Quick Specs.

Model

C9200L-48T-4X-E

Downlinks total 10/100/1000 or PoE+ copper ports

48 ports data

Uplink configuration

4x 10G fixed uplinks

Default primary AC power supply

PWR-C5-125WAC

Fans

Fixed redundant

Software

Network Essentials

Stacking bandwidth

80 Gbps

DRAM

2 GB

Flash

4 GB

Switching capacity

176 Gbps

Forwarding rate

130.95 Mpps

Chassis Dimensions

1.73 x 17.5 x 11.3 in

4.4 x 44.5 x 28.8 cm



Cisco Catalyst 9200L 48-port data 4x10G Product Details

Catalyst 9200 series provides these highlights:

  • Up to 48 ports of full Power over Ethernet Plus (PoE+) capability

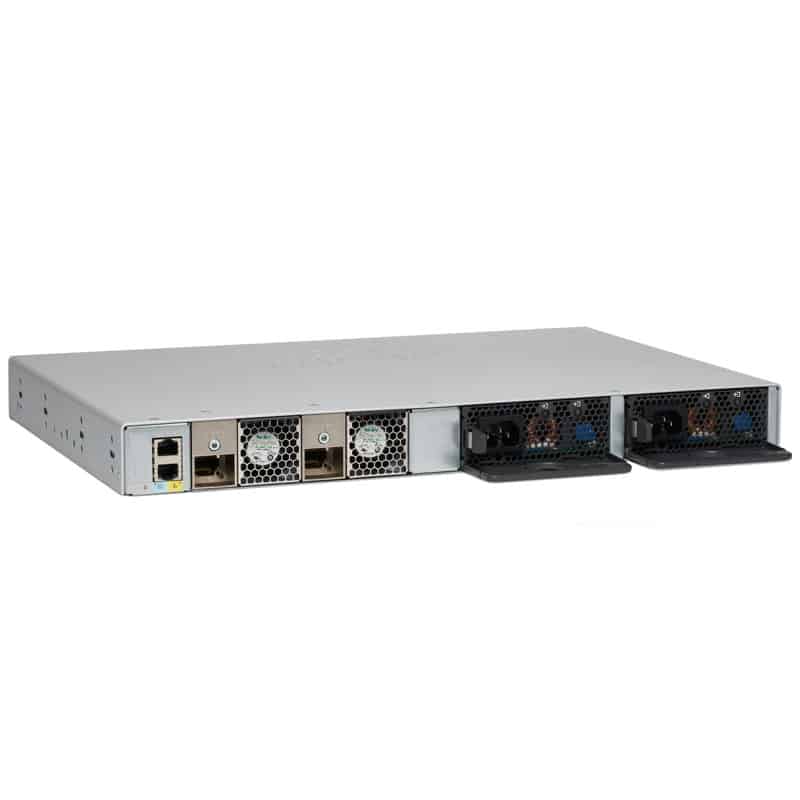

  • Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
  • Flexible downlink options with data or PoE+

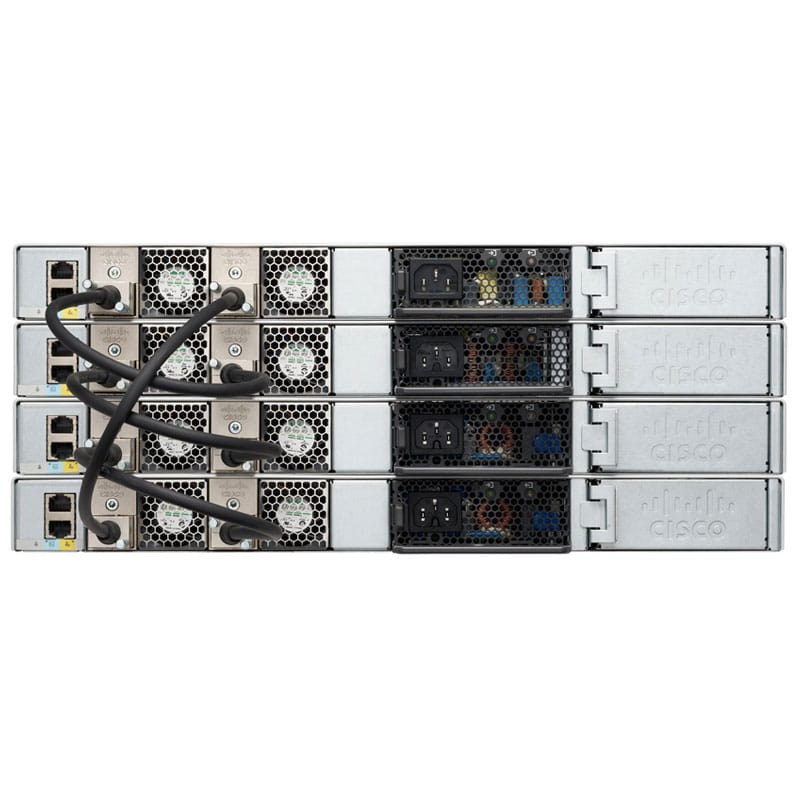

  • Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
  • UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
  • Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
  • Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
  • Advanced network monitoring using Full Flexible NetFlow
  • Cisco Software-Defined Access (SD-Access):
    • Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
    • Network assurance and improved resolution time through Cisco DNA Center™
  • Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
  • Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
  • ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries



SKU: C9200L-48T-4X-E Categories: , , , Tags: , ,
Brand
Brand

Product Type
Product Type

Switch

Warranty
Warranty

Limited Lifetime

More
Total Port

48x Gigabit Ethernet
4x 10G SFP+

Network Downlink

48 Ports

Network Uplink

10G Uplink

PoE Support

None

DNA License

3 Years
5 Years
None

Hardware Support

1 Years 8x5xNBD
2 Years 8x5xNBD
3 Years 8x5xNBD
Standard

Throughput

130.95 Mpps

Switch Capacity

176 Gbps

MAC address

up to 16K addresses
