Cisco Catalyst 9800-L Wireless Controller_Fiber Uplink

รหัสสินค้า : C9800-L-F-K9
Cisco
Availability:

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


Cisco Catalyst 9800-L Wireless Controller_Fiber Uplink

Maximum number of access points :  250, 500 (with Performance license)
Maximum number of clients : 5000, 10,000 (with Performance license)
Maximum throughput : 5 Gbps, 10 Gbps **(with Performance license)
Maximum WLANs : 4096
Maximum VLANs : 4096
Fixed uplinks : 2x 10G/Multigigabit copper or 2x 10G/Multigigabit fiber
Power supply : 110W, 12V DC, AC/DC adapter


--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 213,500.00฿ 340,900.00
฿ 228,445.00฿ 364,763.00 (ราคารวมภาษี)




Cisco Catalyst 9800-L Wireless Controller_Fiber Uplink

C9800-L-F-K9 Overview

The Cisco® Catalyst® 9800-L is a fixed wireless controller with seamless software updates for small and midsize enterprises. Built from the ground up for intent-based networking, the Cisco Catalyst 9800-L brings together Cisco IOS® XE Software and Cisco RF excellence to create a best-in-class wireless experience for your evolving and growing organization.



Cisco Catalyst 9800-L Wireless Controller Fiber Uplink Quick Specs

Table 1 shows the Quick Specs.

Product Code

C9800-L-F-K9

Description

Cisco Catalyst 9800-L Wireless Controller_Fiber Uplink (ships with one AC Power Adapter)

Dimensions (H x W x D)

1.58 in. (4.02 cm) x8.5 in. (21.59 cm)x9.06 in. (23.01 cm)

Maximum number of access points

250

Maximum number of clients

5000

Maximum throughput

5 Gbps

Maximum WLANs

4096

Maximum VLANs

4096

Fixed uplinks

2x 10G/Multigigabit copper or 2x 10G/Multigigabit fiber

Power supply

110W, 12VDC, AC/DC adapter

Maximum power consumption

84.5W (assumes 2pc 2.5W SFP and with 4.5W USB load)

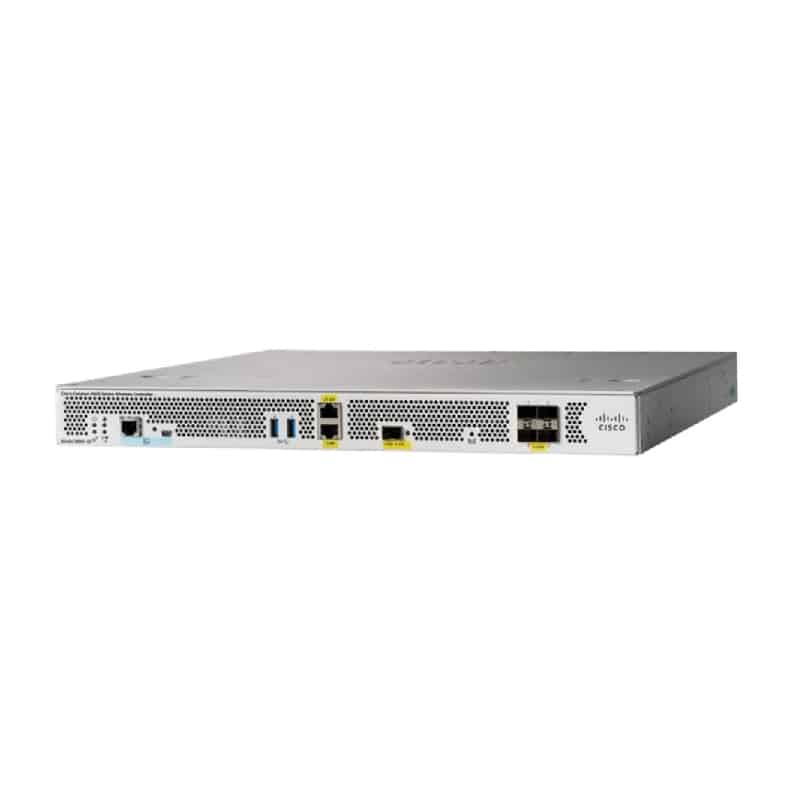

Cisco Catalyst 9800-L Wireless Controller Fiber Uplink Product Details

Figure 2 shows the front panel of Huawei C9800-L-F-K9 switch.

Reset button

USB 3.0 port

RJ-45 console port

2x 10G/Multigigabit copper (Figure 4) 2x 10G/Multigigabit fiber (Figure 5)

Service port (SP) (RJ-45) for out-of-band management

⑩-⑬

Quad RJ-45 2.5G/1G Multigigabit Ethernet ports

Service port LED

High availability LED

Redundancy port LED

Alarm LED

Redundancy port

High availability LED

Micro-B USB console







The Cisco® Catalyst® 9800-L is a fixed wireless controller with seamless software updates for small and midsize enterprises. Built from the ground up for intent-based networking, the Cisco Catalyst 9800-L brings together Cisco IOS® XE Software and Cisco RF excellence to create a best-in-class wireless experience for your evolving and growing organization.

SKU: C9800-L-F-K9 Categories: , , Tags: ,
Brand
Brand

Product Type
Product Type

Network

Warranty
Warranty

1 Year Limited Hardware Warranty

More
Total Port

1x Micro USB console port
1x RJ-45 console port
1x RJ-45 management port
1x RJ-45 redundancy port
1x USB 3.0 port
4x 2.5G/1G and 2x 10G copper ports
4x 2.5G/1G copper and 2x 10G SFP+ fiber ports

Hardware Support

1 Years 8x5xNBD
2 Years 8x5xNBD
3 Years 8x5xNBD
Standard
