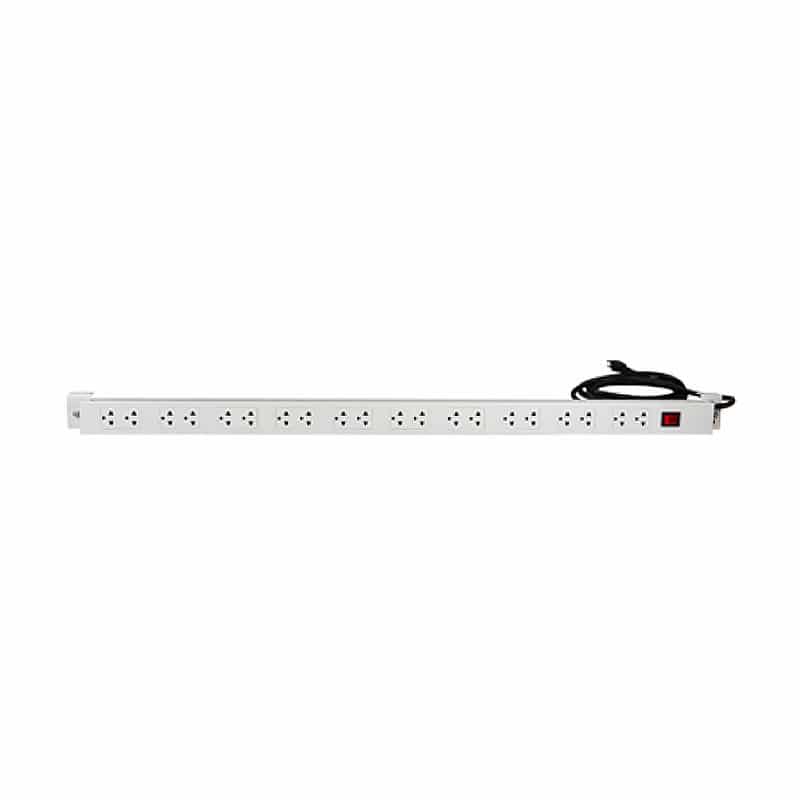

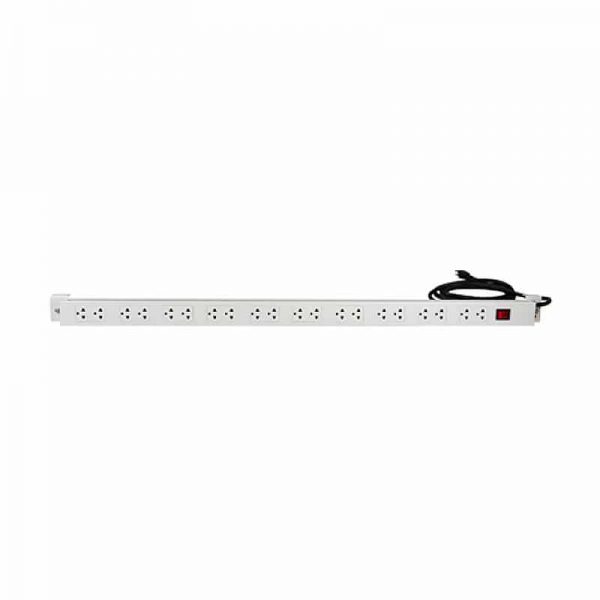

AC POWER DISTRIBUTION 20 Universal Outlet w/Cable 3 M. & Surge Protection (รางไฟ 20 Outlet)

รหัสสินค้า : G7-00020
Availability:

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง
สนใจ
เปรียบเทียบ
  • ปลั๊กรางไฟ 20 Outlet
  • Max. Current : 15A for 20 Outlets
  • Surge Current : 6.5KA
  • Input Voltage : 220VAC/50Hz
  • Clamping Voltage : 775V Max.
  • Plug Type : NEMA 5-15P [15A] , Power Plug IEC 309 [32A], IP44
  • Power Cord : 3×2.5mm2, TIS 11 Part5-2553 , 3x6mm2, T15 11 Part101-2553
  • Approval : TIS 11-2553
  • Operating : -25°C to +85°C
--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 3,000.00
฿ 3,210.00 (ราคารวมภาษี)

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง

AC POWER DISTRIBUTION 20 Universal Outlet G7-00020

AC POWER DISTRIBUTION 20 Universal Outlet w/Cable 3 M. & Surge Protection (G7-00020) รางไฟ 20 Outlet

FEATURES

Applications : Provided universal outlet which is suitable for network equipment, computer, etc.

15A AC Socket Strip

  • 3×2.5mm2 [313AWG] with electronic circuit breaker and surge suppressor [line suppression] for short circuit protection.
  • 1.8m Power cord for 4 outlets.
  • 3m Power cord for 6, 8, 12, 20 outlets.

32A AC Socket Strip

  • 3x6mm2 with 32A circuit breaker and surge protector for short circuit protection.
  • 3m Power cord with IE0309 plug for 12, 20 outlets.

19″ Germany Export Rack Socket Made from PC/ABS [UL94V-0], Universal type with embossing trademark.

Manufactured provide

  • Illuminated switch, short circuit and over current electronic circuit breaker.
  • Housing is made from Electro-Galvanized Steel sheet in light gray color paint by Electrostatic powder coating process.
  • Mounting bracket for vertical or horizontal installation in 19″ Rack cabinet.

5 options 4, 6, 8, 12 and 20 outlets.

Manufacturer and Distributor Certified by ISO 9001:2015

Technical Specification

  • ปลั๊กรางไฟ 20 Outlet
  • Max. Current : 15A for 20 Outlets
  • Surge Current : 6.5KA
  • Input Voltage : 220VAC/50Hz
  • Clamping Voltage : 775V Max.
  • Plug Type : NEMA 5-15P [15A] , Power Plug IEC 309 [32A], IP44
  • Power Cord : 3×2.5mm2, TIS 11 Part5-2553 , 3x6mm2, T15 11 Part101-2553
  • Approval : TIS 11-2553
  • Operating : -25°C to +85°C

Options

Color *Black color [as requested]

ORDERING INFORMATION

Order No. Description Figure
G7-00004 AC POWER DISTRIBUTION 4 Universal Outlet w/Cable
1.8 M. & Surge Protection, 15 Amp		 A
G7-00006 AC POWER DISTRIBUTION 6 Universal Outlet w/Cable
3 M. & Surge Protection, 15 Amp		 B
G7-00008 AC POWER DISTRIBUTION 8 Universal Outlet w/Cable
3 M. & Surge Protection, 15 Amp		 C
G7-00012 AC POWER DISTRIBUTION 12 Universal Outlet w/Cable
3 M. & Surge Protection, 15 Amp		 D
G7-00020 AC POWER DISTRIBUTION 20 Universal Outlet w/Cable
3 M. & Surge Protection, 15 Amp		 –
G7-00112 AC POWER DISTRIBUTION 12 Universal Outlet w/Cable
3 M. & IE0309 Plug W/CB 32A		 E
G7-00120 AC POWER DISTRIBUTION 20 Universal Outlet w/Cable
3 M. & |EC309 Pluq W/CB 32A		 –
AC PDU Type

Sample : G7-00012B AC PDU 12 Outlet w/Cable 3 M., Black Color
