Dell EMC PowerEdge R6525 2P AMD EPYC 7313 32GB H755 4×2.4TB SAS RPS

รหัสสินค้า : SNSR6525C
Dell EMC
Availability:

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


  • 1U, Chassis with up to 8 x 2.5″ Hot Plug Hard Drives (2CPU & XGMI) LP PCIe slot (CPU2)
  • 2x AMD EPYC 7313 (3.0GHz, 16C/32T, 128M, 155W)
  • 32GB (2x 16GB) RDIMM, 3200MT/s, Dual Rank
  • 2 x 1Gb Onboard LOM (BCM5720)MLK V2
  • Broadcom 57416 Dual Port 10GbE BASE-T Adapter, OCP NIC 3.0
  • 4x 2.4TB 10K RPM SAS ISE 12Gbps 512e 2.5in Hot-plug Hard Drive
  • PERC H755 SAS Front
  • 8X DVD-ROM, USB, EXTERNAL
  • Dual, Hot-plug, Power Supply Redundant (1+1), 800W
  • LCD Bezel
  • Riser Riser Config 2, 1 x 16 LP PCIe slot (CPU1), 2 x 16
  • iDRAC9 Datacenter 15G with OpenManage Enterprise Advanced Plus
  • 3Yr ProSupport and Mission Critical: (7×24) 4-hour Onsite Service + 3Yr Keep Your Componant

รับสิทธิ์แลกซื้อ UPS ในราคา

  • APC Smart-UPS C 1000VA/600Watt 2U (SMC1000I-2UC) 18,500 บาท
  • APC Smart-UPS C 1500VA/900Watt 2U (SMC1500I-2UC) 23,500 บาท
  • APC Smart-UPS C 2000VA/1300Watt 2U (SMC2000I-2U) 31,500 บาท
  • APC Smart-UPS C 3000VA/2100Watt 2U (SMC3000RMI2U) 43,000 บาท

รับสิทธิ์แลกซื้อ Windows Server ในราคา (ฟรีติดตั้ง)

  • Windows Server 2022 Essential (ROK) 13,000 บาท
    รองรับ 1 CPU ไม่เกิน 10 Core RAM ไม่เกิน 128GB ไม่มี Hyper-V
    ไม่สามารถเพิ่ม Remote Desktop License ได้
  • Windows Server 2022 Standard (ROK) 31,000 บาท

--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 238,000.00 ฿ 250,000.00
฿ 254,660.00 (ราคารวมภาษี)

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


Dell EMC PowerEdge R6525 2P AMD EPYC 7313 (SNSR6525C)

Dell EMC PowerEdge R6525 2P AMD EPYC 7313 32GB 4×2.4TB SAS RPS (SnSR6525C)

  • 1U, Chassis with up to 8 x 2.5″ Hot Plug Hard Drives (2CPU & XGMI) LP PCIe slot (CPU2)
  • 2x AMD EPYC 7313 (3.0GHz, 16C/32T, 128M, 155W)
  • 32GB (2x 16GB) RDIMM, 3200MT/s, Dual Rank
  • 2 x 1Gb Onboard LOM (BCM5720)MLK V2
  • Broadcom 57416 Dual Port 10GbE BASE-T Adapter, OCP NIC 3.0
  • 4x 2.4TB 10K RPM SAS ISE 12Gbps 512e 2.5in Hot-plug Hard Drive
  • PERC H755 SAS Front
  • 8X DVD-ROM, USB, EXTERNAL
  • Dual, Hot-plug, Power Supply Redundant (1+1), 800W
  • LCD Bezel
  • Riser Riser Config 2, 1 x 16 LP PCIe slot (CPU1), 2 x 16
  • iDRAC9 Datacenter 15G with OpenManage Enterprise Advanced Plus
  • 3Yr ProSupport and Mission Critical: (7×24) 4-hour Onsite Service + 3Yr Keep Your Componant

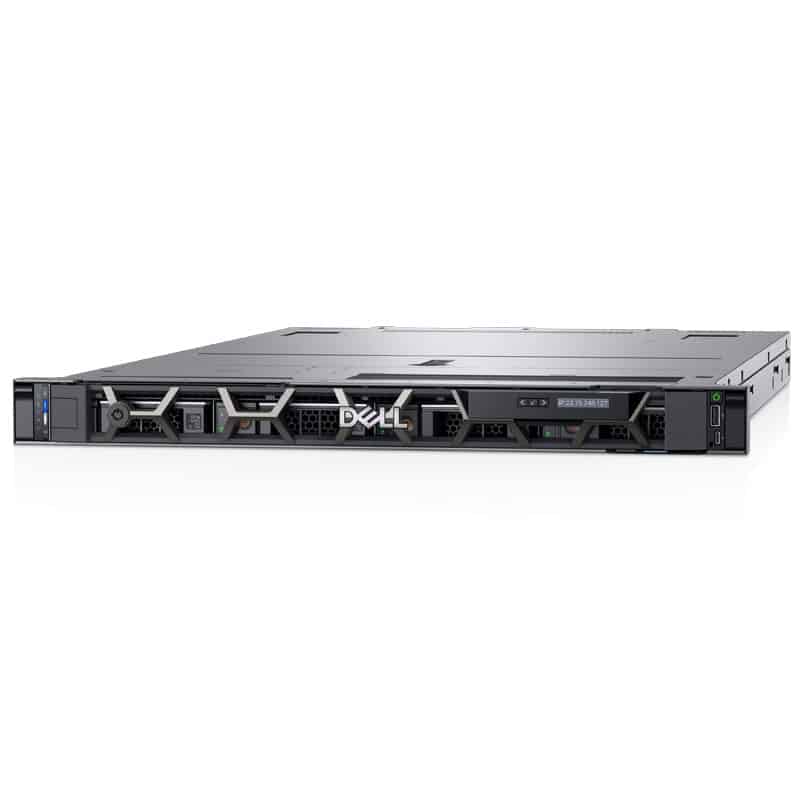

Dell EMC PowerEdge R6525 Rack Server

Dell EMC PowerEdge R6525 Rack Server

Dell EMC PowerEdge R6525 Rack Server

Ideal for a dense virtualization environment

The Dell EMC PowerEdge R6525 is a dual-socket 1U server that delivers performance and innovation to handle workloads like HPC, VDI and virtualization.

PowerEdge-R6515

Dell EMC PowerEdge R6525 Deliver breakthrough performance, innovation and density

The Dell EMC PowerEdge R6525 is a highly configurable, dual-socket 1U rack server that delivers outstanding balanced performance and innovation for dense compute environments. It’s ideal for traditional and emerging workloads and applications like high performance computing (HPC), dense VDI, and virtualization.

  • 64 processing cores and faster data transfer speeds with PCIe Gen4
  • Up to 3200MT/s memory speed to reduce latency and deliver faster response
  • Multi GPU support to accelerate end user VDI performance
  • High core count PowerEdge 1U server with cryptographic isolation between hypervisor and VMs
Deliver breakthrough performance, innovation and density
Increase efficiency and accelerate operations

Dell PowerEdge R6525 Increase efficiency and accelerate operations

The Dell EMC OpenManage™ systems management portfolio delivers an efficient and comprehensive solution for PowerEdge servers through tailored, automated, and repeatable processes.

  • Automate server life cycle management with scripting via the iDRAC Restful API with Redfish conformance.
  • Simplify and centralize one to many management with the OpenManage Enterprise console.
  • Utilize the OpenManage Mobile app and PowerEdge Quick Sync 2 to easily manage servers using a phone or tablet.
  • Resolve issues with up to 72% less IT effort using automated proactive and predictive technology from ProSupport Plus and SupportAssist.1

PowerEdge R6525 Fortify your data center with integrated security

Dell EMC PowerEdge R6525 is designed with a cyber resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.

  • Enhance security with platform enablement of AMD Secure Memory Encryption (SME) and Secure Encrypted Virtualization (SEV).
  • Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust.
  • Maintain server firmware safety with digitally signed firmware packages.
  • Detect and remediate unauthorized or malicious change with drift detection and system lockdown.
  • Securely and quickly wipe all data from storage media, including hard drives, SSDs and system memory with System Erase.
Fortify your data center with integrated security

Dell EMC PowerEdge R6525 Specification

Processor

  • Two 2nd Gen AMD EPYC™ Processors with up to 64 cores per processor

Accelerators

  • Up to 2 single-wide GPUs

Operating System

  • Canonical® Ubuntu® Server LTS
  • Citrix® Hypervisor®
  • Microsoft® Windows Server® with Hyper-V
  • Red Hat® Enterprise Linux
  • SUSE® Linux Enterprise Server
  • VMware® ESXi®

Memory3

  • DIMM Speed
    Up to 3200MT/s

  • Memory Type
    RDIMM
    LRDIMM

  • Memory Module Slots
    32 DDR4 RDIMM slots

  • Maximum RAM
    RDIMM 2 TB
    LRDIMM 4 TB

Dell EMC PowerEdge R6525 Storage Controllers

  • Internal Controllers
    PERC HBA345, H345, H745

  • External Controllers (RAID)
    H840, 12Gbps SAS HBA

  • Internal Boot
    Boot Optimized Storage Subsystem (BOSS):
    HWRAID 2 x M.2 SSDs

  • Internal Dual SD Module

Dell EMC PowerEdge R6525

Power Supplies

  • 800W Platinum
  • 1400W Platinum
  • 1100W Titanium

Dimensions & Weight

  • Height
    44.45mm (1.75″)

  • Width
    434.0mm (17.1″)

  • Depth
    736.54mm (29″)

  • Weight
    21.5kg (47.39lbs)

Bezel

  • Optional LCD bezel or security bezel

Security

  • Cryptographically signed firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown
  • TPM 1.2/2.0, TCM 2.0 optional
  • AMD Secure Memory Encryption (SME)
  • AMD Secure Encrypted Virtualization (SEV)

Recommended Support

  • Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.

Ports

  • Network Options
    2 x 1GE LOM + OCP x16 Mezz 3.0

  • Front Ports
    1 x Dedicated iDRAC direct micro-USB
    1 x USB 2.0
    1 x VGA

  • Rear Ports
    1 x Dedicated iDRAC network port
    1 x Serial (optional)
    1 x USB 3.0
    1 x VGA
    1 x USB 2.0

  • Internal Ports
    1 x USB 3.0 (optional)

Storage

  • Front Bays
    Up to 4 x 3.5” hot plug SAS/SATA (HDD)
    Up to 8 x 2.5” hot plug SAS/SATA (HDD)
    Up to 12 x 2.5” (10 Front + 2 Rear) hot plug SAS/SATA/NVMe

Slots

  • PCIe
    3 x Gen4 slots (x16) at 16GT/s

Management

  • Embedded / At-the-Server
    iDRAC9
    iDRAC RESTful API with Redfish
    iDRAC Direct
    Quick Sync 2 BLE/wireless module

  • Consoles
    OpenManage Enterprise
    OpenManage Enterprise Power Manager

  • Mobility
    OpenManage Mobile

  • Tools
    Dell EMC RACADM CLI
    Dell EMC Repository Manager
    Dell EMC System Update
    Dell EMC Server Update Utility
    Dell EMC Update Catalogs
    iDRAC Service Module
    IPMI Tool
    OpenManage Server Administrator
    OpenManage Storage Services

  • OpenManage Integrations
    BMC Truesight
    Microsoft® System Center
    RedHat® Ansible® Modules
    VMware® vCenter™

  • OpenManage Connections
    IBM Tivoli® Netcool/OMNIbus
    IBM Tivoli® Network Manager IP Edition
    Micro Focus® Operations Manager I
    Nagios® Core
    Nagios® XI

Rack Support

  • ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
Brand
Brand

Product Type
Product Type

Server

Chassis Type
Form Factor

Rack 1U Server

Operating System
Operating System

No Operating System

Processor
Processor

2x AMD EPYC 7313 (3.0GHz, 16C/32T, 128MB Cache)

CPU Speed

CPU Core

CPU Cache

128 MB

Memory
Memory

32GB (2x16GB) DDR4 RDIMM ECC

Optical Drive
Optical Drive

DVD-ROM USB External

Power Supply
Power Supply

2x 800W Hot-Plug Power Supply

Warranty
Warranty

3 Years Warranty 24×7 (Part/Labor/Onsite) Service

Server
CPU Socket

2 Socket CPU Support
2 CPU Installed (มี 2 CPU)

Storage Controller

PERC H755 Hardware (RAID-0/1/10/5/50/6/60)

Disk Bays

8x 2.5" SAS/SATA Hot-Plug

Disks

4x 2.4TB 10K SAS 12Gbps

M.2 Drives

None

System Management

iDRAC9 Datacenter 15G with OpenManage Enterprise Advanced Plus

More
Networking

2x 10GbE RJ-45
2x 1GbE RJ-45
