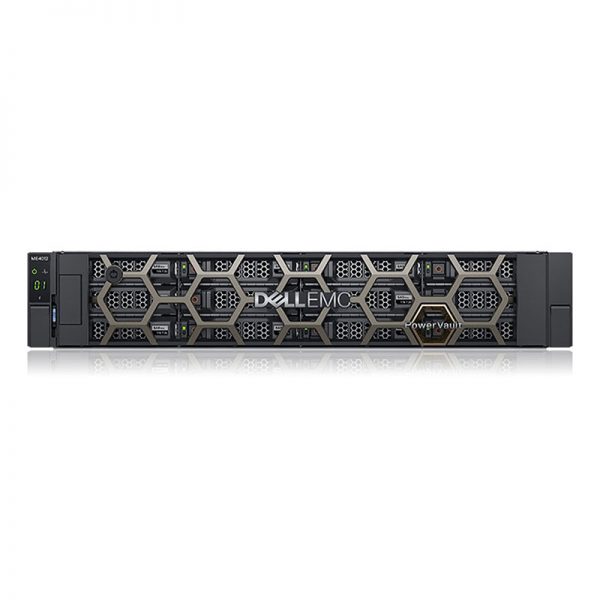

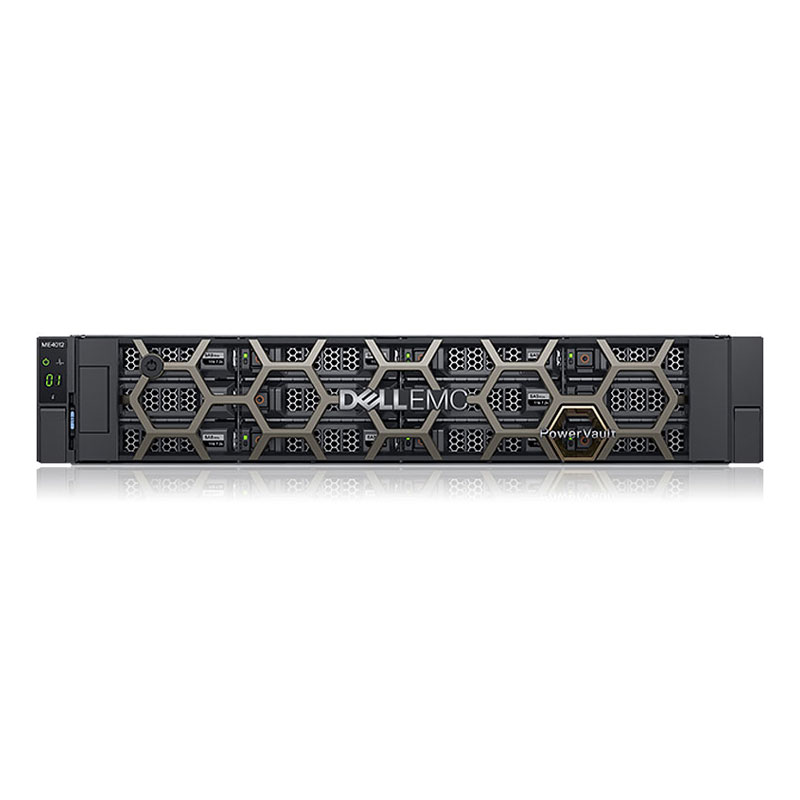

Dell EMC PowerVault ME4012 Storage Array

รหัสสินค้า : SNSME4012
Availability:

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง
สนใจ
เปรียบเทียบ
  • Dual Controller, 16Gb FC 4 Port and 10GB iSCSI SFP+ 4 Port
  • 2x 1.92TB SSD SAS Read Intensive 12Gbps 512e 2.5in Hot-plug Drive,
  • 2x 12TB 7.2K RPM NLSAS 12Gbps 512e 3.5in Hot-plug Hard Drive
  • 8x Hard Drive Filler 3.5in, single blank
  • 4x SFP, FC16, 16GB + Multi-Mode Fibre Channel Cable LC-LC 10 Meters
  • 4x Transciever, 10Gb SFP+, Short Range
  • Dual Power Supply, 580W, Redundant, Flex
  • Rack Rails 2U
  • No Installation Services
  • All Software Features Inclusive
  • 3Yr ProSupport Plus and Mission Critical: (7×24) 4-hour Onsite Service
--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

Dell EMC PowerVault ME4012 Storage Array (SnSME4012)

Dell EMC PowerVault ME4012 Storage Array (SnSME4012)

  • Dual Controller, 16Gb FC 4 Port and 10GB iSCSI SFP+ 4 Port
  • 2x 1.92TB SSD SAS Read Intensive 12Gbps 512e 2.5in Hot-plug Drive,
  • 2x 12TB 7.2K RPM NLSAS 12Gbps 512e 3.5in Hot-plug Hard Drive
  • 8x Hard Drive Filler 3.5in, single blank
  • 4x SFP, FC16, 16GB + Multi-Mode Fibre Channel Cable LC-LC 10 Meters
  • 4x Transciever, 10Gb SFP+, Short Range
  • Dual Power Supply, 580W, Redundant, Flex
  • Rack Rails 2U
  • No Installation Services
  • All Software Features Inclusive
  • 3Yr ProSupport Plus and Mission Critical: (7×24) 4-hour Onsite Service



Dell PowerVault ME4012 Storage Array



PowerVault ME4 Series

ขอใบเสนอราคา โทร 088-2694142 หรือ Chat ผ่าน LINE ID @SERVERPROTHAI



Tech Specs & Customization

Processor

Intel® 2-core, 2.2GHz

Operating System

Microsoft® Windows® 2019, 2016 and 2012 R2, RHEL 8.0, 7.4, 6.9, SLES 12.3, VMware® 6.7 U2, 6.5, 6.0, Microsoft Hyper-V®, Citrix XenServer 7.1.0, 7.6.0

Physical

Storage Enclosure Weight (Maximum):
ME4012: 32 kg (71 lbs)
ME4024: 30 kg (66 lbs)
ME4084: 135 kg (298 lbs)

Storage Enclosure Height:
ME4012: 8.79 cm (3.46 inches)
ME4024: 8.79 cm (3.46 inches)
ME4084: 22.23 cm (8.75 inches)

Storage Enclosure Width:
ME4012: 44.3 cm (17.44 inches)
ME4024: 44.3 cm (17.44 inches)
ME4084: 44.45 cm (17.50 inches)

Storage Enclosure Depth:
ME4012: 57.6 cm (22.71 inches)
ME4024: 57.6 cm (22.71 inches)
ME4084: 89.22 cm (35.12 inches)

Power

Storage Enclosures:
ME4012: 580W, 1980 BTU, 100-240 VAC, 7.6-3.0A (x2), 50/60 Hz
ME4024: 580W, 1980 BTU, 100-240 VAC, 7.6-3.0A (x2), 50/60 Hz
ME4084: 2200W, 7507 BTU, 200-240 VAC, 11.07-9.23A (x2), 50/60 Hz

Expansion Enclosures:
ME412: 580W, 1980 BTU, 100-240 VAC, 7.6-3.0A (x2), 50/60 Hz
ME424: 580W, 1980 BTU, 100-240 VAC, 7.6-3.0A (x2), 50/60 Hz
ME484: 2200W, 7507 BTU, 200-240 VAC, 11.07-9.23A (x2), 50/60 Hz

Management

PowerVault Manager HTML5 GUI, OME 3.2, CLI, REST

Regulatory

Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment

Drive Bays

ME4012: 2/264
ME4024: 2/276
ME4084: 28/336

Connectivity

16Gb Fibre Channel
10Gb iSCSI
12Gb SAS
Multiprotocol: 16Gb Fibre Channel SFP+ / 10Gb iSCSI SFP+

Media Types

NLSAS: 7.2K 3.5″ – 4TB, 8TB, 10TB, 12TB, 12TB SED
NLSAS: 7.2K 2.5″ – 2TB, 2TB SED
SAS: 10K 2.5″ – 1.2TB, 1.8TB, 2.4TB, 2.4TB SED
SAS: 15K 2.5″ – 900GB, 900GB SED
SSD: 480GB, 960GB, 1.92TB, 1.92TB SED, 3.84TB
SDD / HDD: FIPS-certified SEDs

Software

PowerVault ME4 Series provides simplified, all-inclusive software licensing, including:
– ADAPT (Distributed RAID): (like Dynamic Disk Pooling) reduces drive rebuild times
– Thin Provisioning: Allocate and consume physical storage capacity as needed in disk pools. Thin is virtual mode only.
– SSD Read Cache: Increase execution speed of applications by caching previously read data
– IP & FC Remote Replication: Safely replicate data to any global location that includes mirroring thin provisioned pools
– Snapshots: Easily recover files after accidental deletion or alteration with Redirect on Write snaps
– 3 Level Tiering: Get great performance with less hardware expense
– Volume Copy/Clones: Enable seamless volume relocation and disk-based backup and recovery with a full, replicated copy of source data
– Encryption (SEDs): Render data useless to unauthorized users with drive-level encryption, even if the drive has been removed from the enclosure (internal key management included)
– Virtualization Integrations: VMware vSphere, vCenter SRM, Microsoft Hyper-V
– SupportAssist: Provides enhancements enabling automated maintenance capabilities

Expansion Capacity

ME412: 2U 12 x 3.5″ drive bays (12Gb SAS)
ME424: 2U 24 x 2.5″ drive bays (12Gb SAS)
ME484: 5U 84 x 3.5″ drive bays (12Gb SAS)

Network and Expansion I/O

All-in-one (single/dual controllers, internal drive bays, networking) with expansion options
ME4012: 2U 12 x 3.5” drive bays (2.5” drive carriers supported)
ME4024: 2U 24 x 2.5” drive bays
ME4084: 5U 84 x 3.5” drive bays (2.5” drive carriers supported)

Product Details

Features

Technology that delivers all-around simplicity, high-performance and high-capacity entry storage

Consolidate your storage with the new PowerVault ME4 Series storage for entry-level SAN and DAS workloads. The ME4 Series is ideal for accelerated performance for HPC, Exchange, backup, VDI and many more applications. Designed for versatility, the ME4 Series supports a variety of drive types, multi-protocols, all-inclusive software features and a choice of two 2U or a high density 5U base systems with expansion enclosure options.

All-around simplicity

PowerVault ME4 Series provides features that simplify tasks such as system installation, configuration, and serviceability enabling IT generalists to manage resources more efficiently and focus on the bigger picture.

  • Simple to order with all-inclusive software
  • Customer installable/configurable in 15 minutes
  • Intuitive web-based (HTML5) management
  • Easily expandable without disruption
 All-around simplicity

Get all-inclusive enterprise-class capabilities

PowerVault ME4 Series storage arrays deliver all the software you’ll need to store, manage, and protect your data:

  • ADAPT (Distributed RAID): Improved data protection functionality that delivers faster drive rebuild times
  • Thin Provisioning: Allocate and consume physical storage capacity as needed in disk pools
  • Snapshots: Easily recover data with point-in-time copies
  • Replication: Replicate data to any global location
  • Volume Copy: Enables seamless volume relocation and disk-based backup and recovery
  • SSD Read Cache: Increase execution speed of applications by caching previously read data
  • 3-Level Auto-tiering: Optimizes data performance with less expense
  • Virtualization integration: Integrate ME4 arrays with VMware vSphere and vCenter SRM and Microsoft Hyper-V
 Get all-inclusive enterprise-class capabilities
Optimized for SAN and DAS

Optimized for SAN and DAS

PowerVault ME4 Series is purpose-built and optimized for SAN and DAS virtualized workloads. Connecting the PowerVault ME4 Series to a Dell PowerEdge Server to address the challenges of server capacity expansion or to a SAN for flexibility and scalability ensures that business applications will always get high-speed and reliable access to their data – without compromise.

  • Direct-attach to Dell PowerEdge Servers over SAS, FC, or iSCSI
  • Consolidate SAN storage through a single port over FC or iSCSI

Protect your data

Keep your valuable information safe with these PowerVault ME Series features:

  • Remote Replication: Replicate data to any global location that includes mirroring thin provisioned pools
  • Snapshots: Easily recover files after accidental deletion or alteration with point-in-time copies of data
  • Virtual Disk Copy (VDC): Enable quick and seamless virtual disk relocation and disk-based backup and recovery with a full, replicated copy of source data
  • Self-encrypting drives (SEDs): Render data useless to unauthorized users with drive-level encryption, even if the drive has been removed from the enclosure
 Protect your data
Improved hardware and performance

Improved hardware and performance

PowerVault ME4 Series storage is simple, fast, and affordable. With dual core Intel Broadwell processors, active-active controllers, more drives and a faster back end, ME4 Series storage delivers:

  • Up to 320K IOPs performance
  • Up to 5500 MB/sec bandwidth
  • Up to 4PB capacity (Use HDDs to 4PB in three 5U 84 drive dense enclosures)
  • Performance at scale with 12G SAS backend

The ME4 Series base models include dual hot-swappable Intel controllers, iSCSI, Fiber Channel, and SAS protocols, support for 2U and 5U expansion enclosure options. Implement the PowerVault ME Series as shared SAN storage or direct attach them to Dell PowerEdge Servers.

Simplified data management

The PowerVault ME4 Series brings radical simplicity and exceptional affordability to the entry market. It’s simple to install and configure, comes with all-inclusive software and includes an intuitive web-based HTML5 GUI for “anywhere” management. ME4 Series storage flexibly configures as DAS or SAN, all flash or hybrid, and you can mix HDD and SSD drives in the configuration. It also includes built-in compatibility with Microsoft and VMware hypervisors simplifying physical and virtual resource management.

PowerVault Manager
This web-based management GUI simplifies ME4 configuration tasks, alerts you to problems and provides a recovery guru to automatically help troubleshoot and resolve issues.

VMware vCenter Plug-In 6.7
Monitor, manage, provision and optimize storage for performance and availability across your virtual infrastructure. You can also implement Storage Replication Adapters (SRA) to simplify management of disaster recovery with centralized recovery plans.

 Simplified data management
Speed recovery with Adapt

Speed recovery with ADAPT Software

PowerVault ME4 Series ADAPT software protects data by dynamically distributing it across pools of drives. In the event of a drive failure, ADAPT will identify the critical data and dynamically rebalance the data so the array can return to an optimal state faster than it would in the typical RAID environment.

  • Saves time and money
  • Faster drive rebuilds
  • Add just the capacity you need
  • Supports up to 1PB capacity or up to 128 drives.

PowerVault ME4012

Dell EMC PowerVault ME4012 Storage Array

  • Up to 3.1PB capacity
  • 12 x 3.5″ drive bays
  • Up to 264 drives
  • Intel® 2-core, 2.2GHz
  • Multi-protocols – SAS, iSCSI, Fibre Channel
  • Single/Dual Controller
  • 12Gb SAS Backend
  • All premium software features included
PowerVault ME4024

Dell EMC PowerVault ME4024 Storage Array

  • Up to 3.0PB capacity
  • 24 x 2.5” drive bays
  • Up to 276 drives
  • Intel® 2-core, 2.2GHz
  • Multi-protocols – SAS, iSCSI, Fibre Channel
  • Single/Dual Controller
  • 12Gb SAS Backend
  • All premium software features included
PowerVault ME4084

Dell EMC PowerVault ME4084 Storage Array

  • Up to 4.0PB capacity
  • 84 x 3.5″ drive bays
  • Up to 336 drives
  • Intel® 2-core, 2.2GHz
  • Multi-protocols – SAS, iSCSI, Fibre Channel
  • Dual Controller
  • 12Gb SAS Backend
  • All premium software features included
