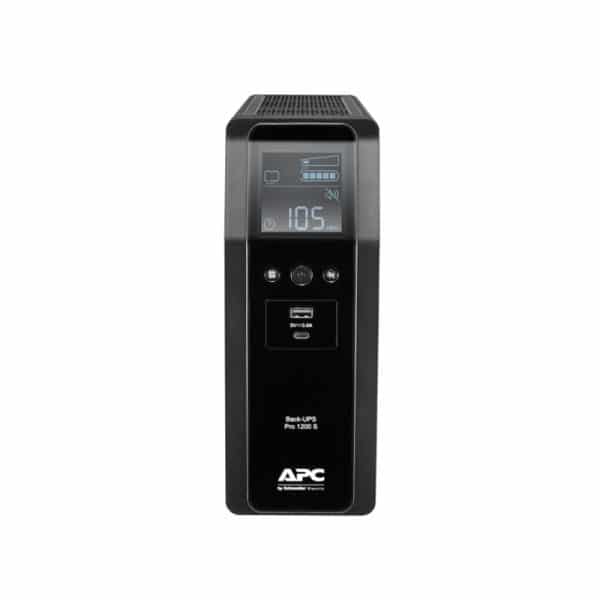

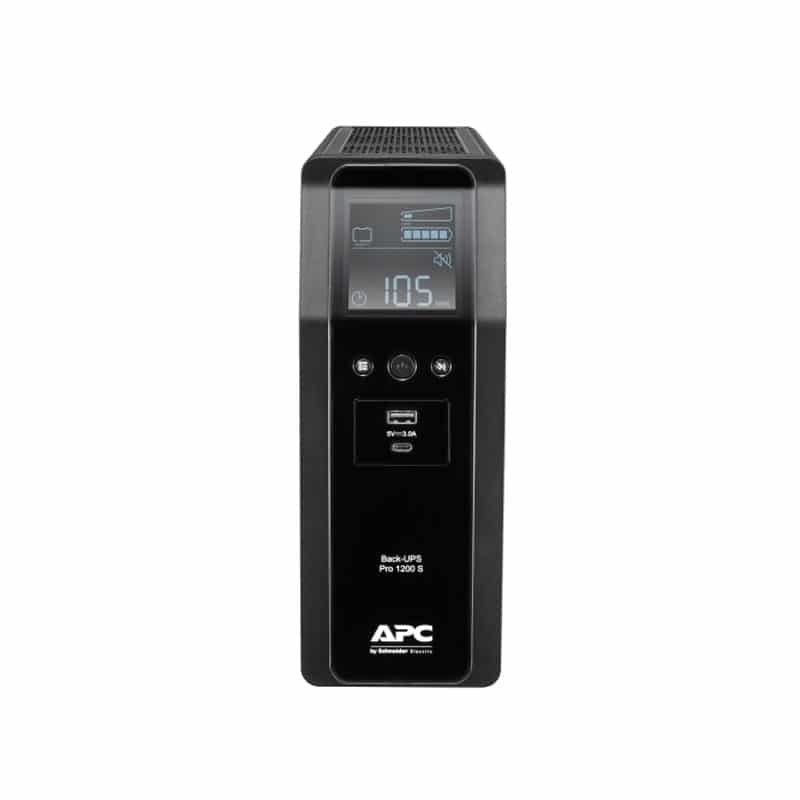

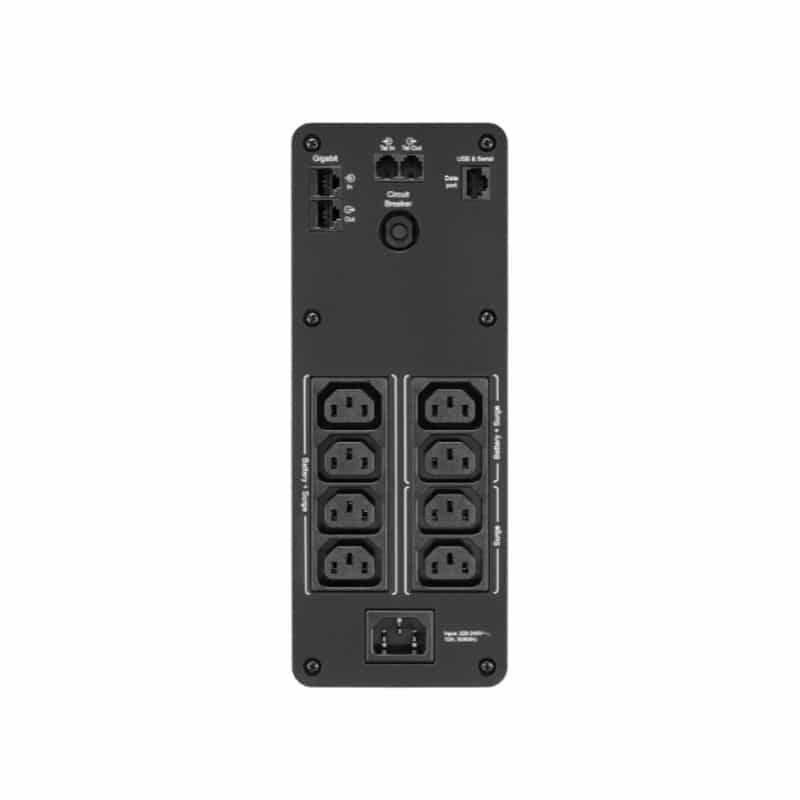

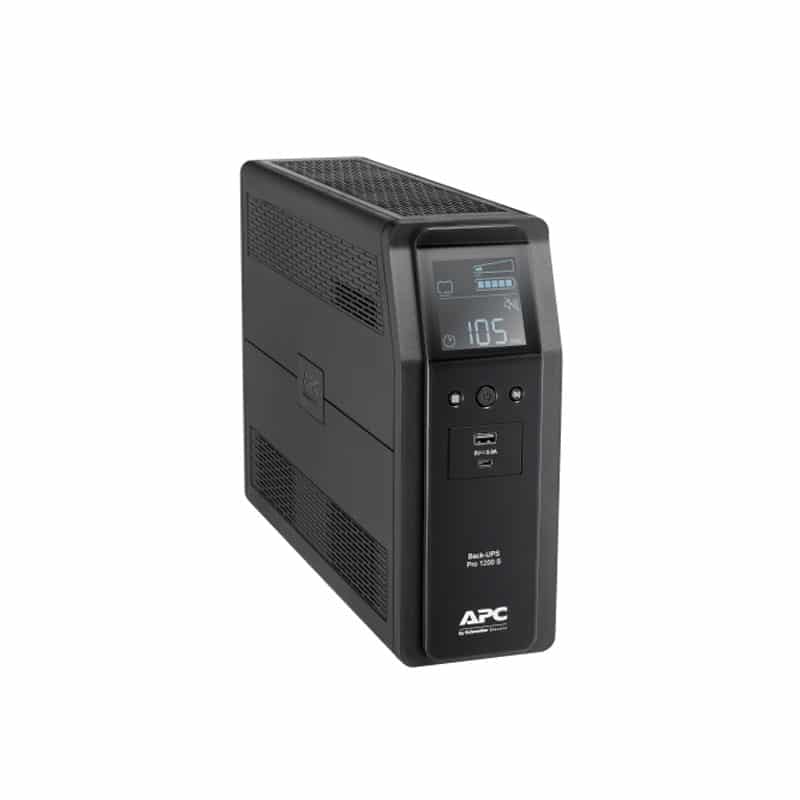

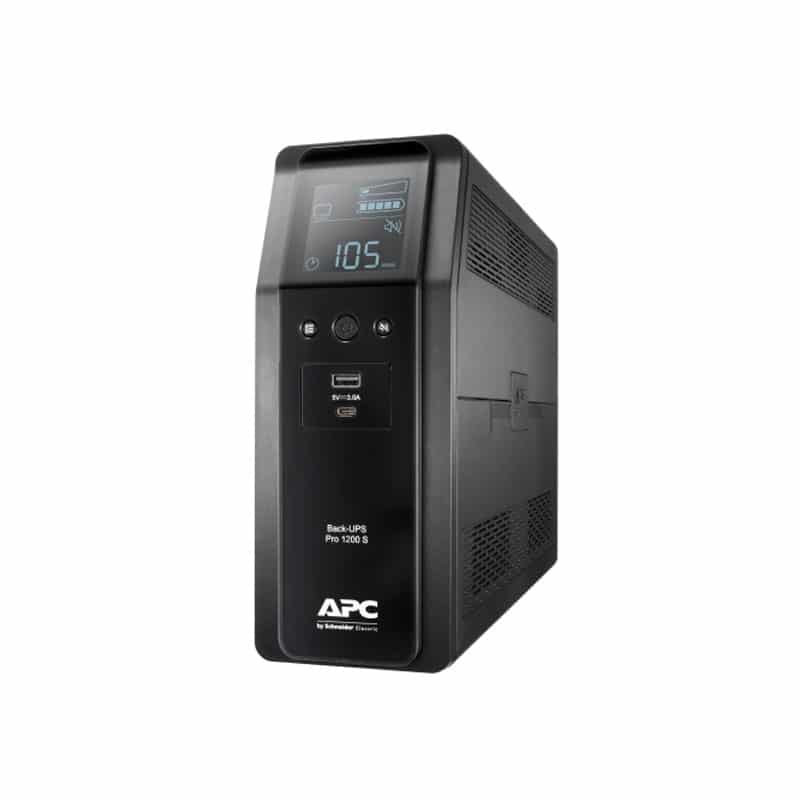

APC Back UPS Pro BR 1200VA, Sinewave,8 Outlets, AVR, LCD interface

APC Back-UPS BR1200SI

APC Back-UPS BR1200SI

APC Back-UPS Pro BR 1200VA, Sinewave,8 Outlets, AVR, LCD interface

APC Easy UPS On-Line SRV RM Ext. Runtime 1000VA

Output

• Max Configurable Power (Watts) : 720 Watts / 1.2kVA
• Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Sync to mains
• Topology : Line interactive

Input

• Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing
• Input voltage range for main operations : 176 – 294V

Batteries & Runtime

• Battery type : Lead-acid battery
• Typical recharge time : 16hour(s)
• Nominal Battery Voltage : 24 V
• Expected Battery Life (years) : 3 – 5
• RBC Quantity : 1
• Battery Charge Power (Watts) : 13 Watts
• Runtime : Runtime Graph

Communications & Management

• Interface Port(s) : USB
• Control panel : Multifunction LCD status and control console
• Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm


Surge Protection and Filtering

• Surge energy rating : 509Joules
• Data Line Protection : RJ45 10/100/1000 Base-T Ethernet protection
• Filtering : Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous


Physical

• Maximum Height : 260MM, 26.0CM
• Maximum Width : 100MM, 10.0CM
• Maximum Depth : 368MM, 36.8CM
• Net Weight : 11.7KG
• Shipping weight : 13.35KG
• Shipping Height : 359MM, 35.9CM
• Shipping Width : 223MM, 22.3CM
• Shipping Depth : 482MM, 48.2CM
• Color : Black
• Master Carton Dimensions (Length x Width x Height) : 381 x 483 x 229MM
• Master Carton Units : 1.0
• Master Carton Weight : 14.21

Environmental

• Operating Temperature : 0 – 40 °C
• Operating Relative Humidity : 0 – 95 (Non-condensing) %
• Operating Elevation : 0 – 3048meters
• Storage Temperature : -15 – 45 °C
• Storage Elevation : 0 – 15240meters
• Audible noise at 1 meter from surface of unit : 45.0dBA
• Online thermal dissipation : 16.0BTU/hr

Conformance

• Approvals : A-Tick, C-Tick, CE, EAC, GS Mark, RCM, TISI
• Equipment protection policy : Lifetime : 150000 euros, Lifetime : 200000 AUD, Lifetime : 75000 GBP
• Standard Warranty : 3Y Onsite 5×8
