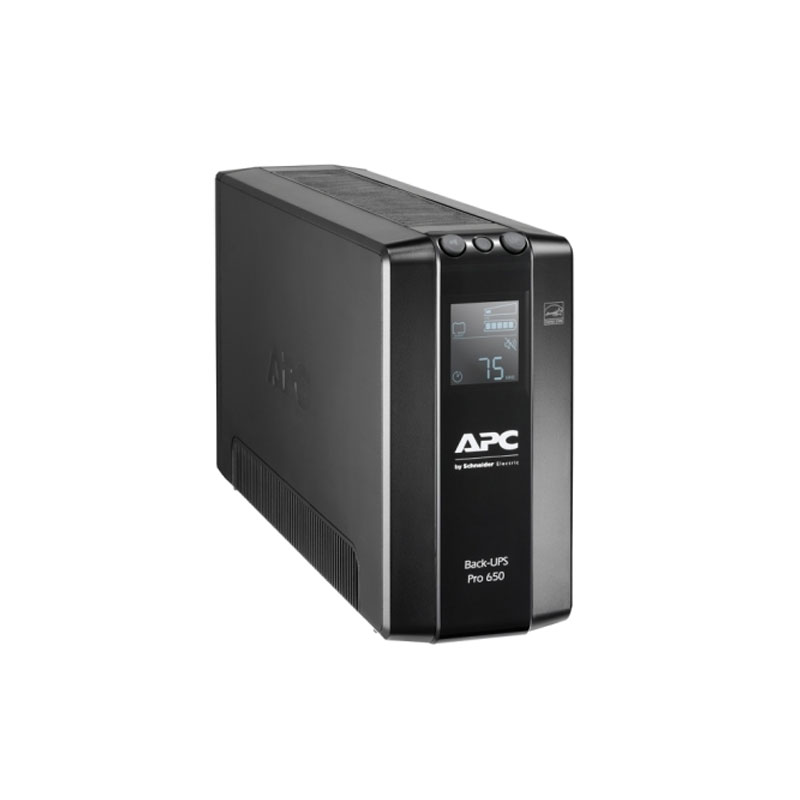

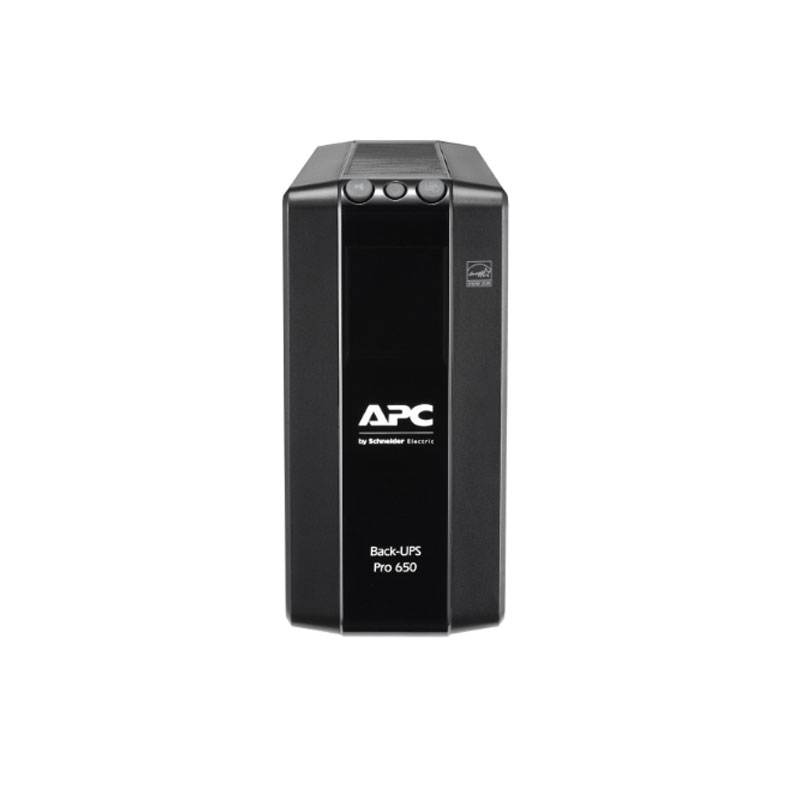

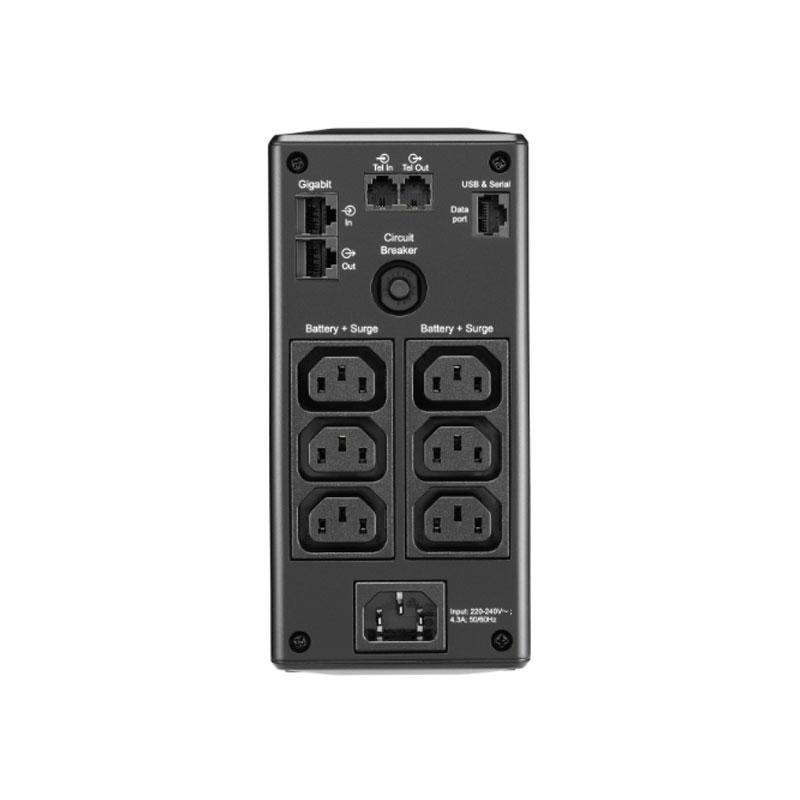

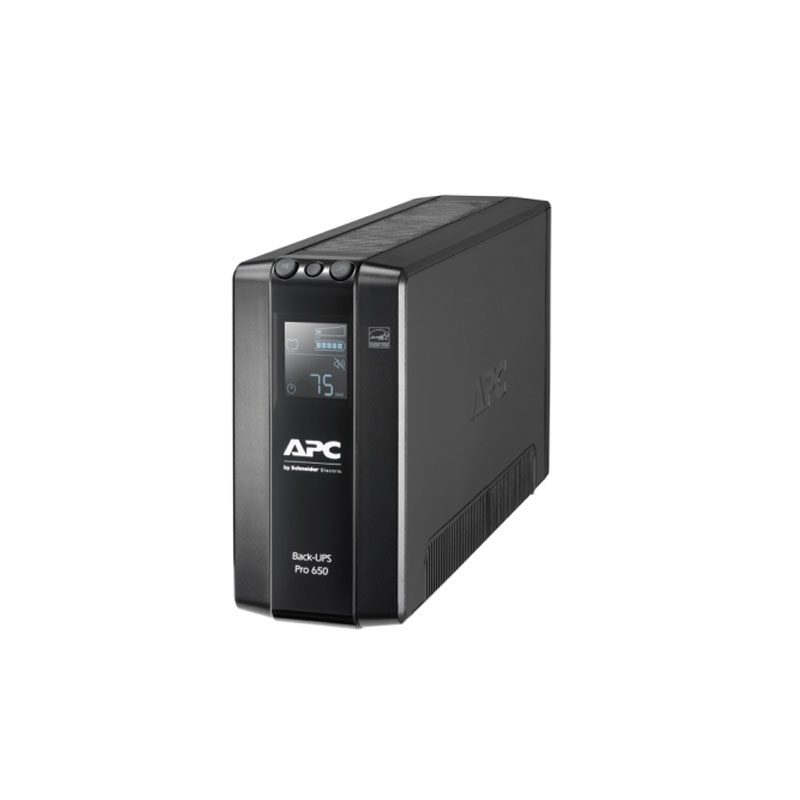

APC Back-UPS Pro BR 650VA, 6 Outlets, AVR, LCD Interface

APC Back-UPS BR650MI

APC Back-UPS BR650MI

APC Back-UPS Pro BR 650VA, 6 Outlets, AVR, LCD Interface

APC Easy UPS On-Line SRV RM Ext. Runtime 1000VA

Output

• Max Configurable Power (Watts) :  650VA / 390 Watts
• Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Sync to mains
• Topology : Line interactive
• Waveform type : Stepped approximation to a sinewave
• Transfer Time : 10 ms typical : 12 ms maximum

Input

• Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing
• Input voltage range for main operations : 176 – 294V

Batteries & Runtime

• Battery type : Lead-acid battery
• Typical recharge time : 12hour(s)
• Nominal Battery Voltage : 12 V
• Expected Battery Life (years) : 3 – 5
• RBC Quantity : 1
• Battery Charge Power (Watts) : 6 Watts
• Runtime : Runtime Graph

Communications & Management

• Interface Port(s) : USB
• Control panel : Multifunction LCD status and control console
• Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm


Surge Protection and Filtering

• Data Line Protection : RJ45 network line – 10/100/1000 Base-T Ethernet
• Filtering : Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous

Physical

• Maximum Height : 190MM, 19.0CM
• Maximum Width : 91MM, 9.1CM
• Maximum Depth : 310MM, 31.0CM
• Net Weight : 6.4KG
• Shipping weight : 7.4KG
• Shipping Height : 255MM, 25.5CM
• Shipping Width : 440MM, 44.0CM
• Shipping Depth : 143MM, 14.3CM
• Master Carton Dimensions (Length x Width x Height) : 279 x 457 x 229MM
• Master Carton Units : 2.0
• Master Carton Weight : 15.65

Environmental

• Operating Temperature : 0 – 40 °C
• Operating Relative Humidity : 0 – 95 %
• Operating Elevation : 0 – 3048meters
• Storage Temperature : -15 – 45 °C
• Storage Elevation : 0 – 15240meters
• Audible noise at 1 meter from surface of unit : 45.0dBA
• Online thermal dissipation :  13.0BTU/hr

Conformance

• Approvals : A-Tick, C-Tick, CE, EAC, GS Mark, RCM, TISI
• Equipment protection policy : Lifetime : 150000 euros, Lifetime : 200000 AUD, Lifetime : 75000 GBP
• Standard Warranty : 3Y Onsite 5×8
