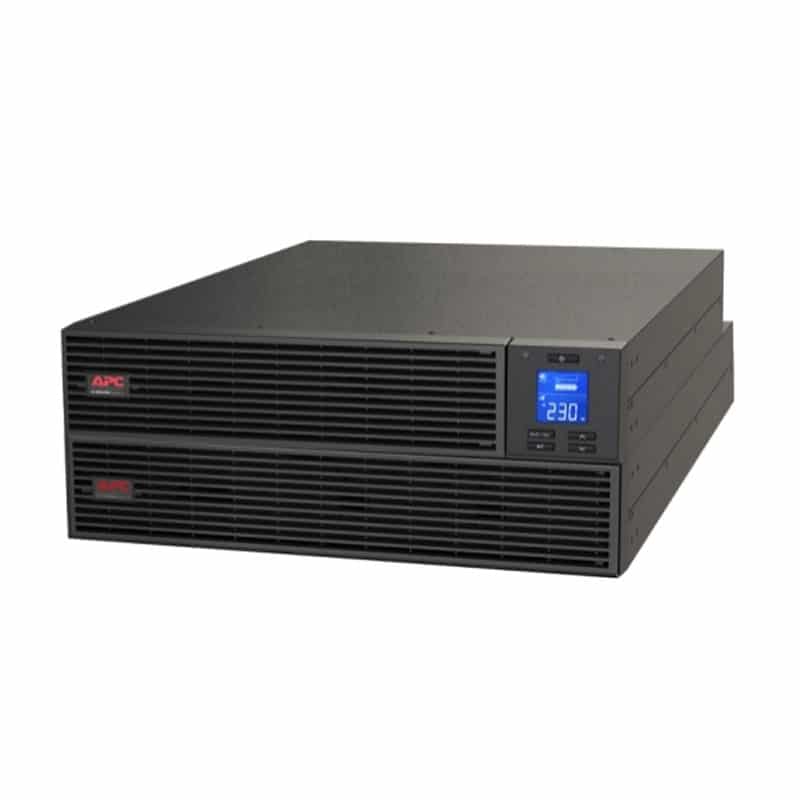

APC Easy UPS On-Line SRV RM 10000 VA 230V with Rail Kit

รหัสสินค้า : SRV10KRIRK
APC
Availability:

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง
สนใจ
เปรียบเทียบ
  • Max Configurable Power (Watts) : 10000VA / 10000 Watts
  • Other Output Voltages : 220, 240
  • Topology : Double conversion online
  • Waveform type : Sine wave
  • Interface Port(s) : DB-9 RS-232, USB
  • Rack Height : 4U
  • Control panel : Multi-function LCD status and control console
  • Output Connections : Terminal Block
  • Includes: Basic UPS signalling RS-232 cable, CD with software, Rack mounting brackets, Rack mounting support rails, USB cable, User manual
  • 2Years Warranty 8×5 On-Site

            SRV Model RACK : แบบต่อแบตไม่ได้ // ไม่มี Powerchute



--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 140,000.00 ฿ 155,700.00
฿ 149,800.00 (ราคารวมภาษี)

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง

APC Easy UPS On-Line SRV RM 10000 VA 230V with Rail Kit (SRV10KRIRK)

APC Easy UPS On-Line SRV RM 10000 VA 230V with Rail Kit (SRV10KRIRK)

Output

  • Max Configurable Power (Watts) : 10000VA / 10000 Watts
  • Efficiency at Full Load : 94.0 %
  • Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains
  • Other Output Voltages : 220, 240
  • Load Crest Factor : (3 : 1)
  • Topology : Double conversion online
  • Waveform type : Sine wave
  • Bypass : Internal bypass (automatic and manual)

Input

  • Input frequency : 40 – 70 Hz
  • Input voltage range for main operations : 110 – 300 Adjustable (half load), 176 – 300V
  • Efficiency at Full Load : 94.0 %
  • Other Input Voltages : 220, 240

Batteries & Runtime

  • Battery type : Lead-acid battery
  • Typical recharge time : 3hour(s)
  • Battery Charge Power (Watts) : 531 Watts
  • Runtime : View Runtime Graph

Communications & Management

  • Interface Port(s) : DB-9 RS-232, USB
  • Control panel : Multi-function LCD status and control console
  • Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
  • Emergency Power Off (EPO) : Yes

Surge Protection and Filtering

  • Surge energy rating : 600Joules

Physical

  • Maximum Height : 173MM, 17.3CM
  • Maximum Width : 438MM, 43.8CM
  • Maximum Depth : 615MM, 61.5CM
  • Net Weight : 68.0KG
  • Shipping weight : 79.0KG
  • Shipping Height : 485MM, 48.5CM
  • Shipping Width : 600MM, 60.0CM
  • Shipping Depth : 836MM, 83.6CM
  • Color : Black

Environmental

  • Operating Temperature : 0 – 40 °C
  • Operating Relative Humidity : 0 – 95 (Non-condensing) %
  • Operating Elevation : 0 – 3048meters
  • Storage Temperature : -15 – 60 °C
  • Storage Elevation : 0 – 15240meters
  • Audible noise at 1 meter from surface of unit : 58.0dBA
  • Protection Class : IP20

Conformance

  • Approvals : CE, IEC 62040-1-1, IEC 62040-1-2
  • Standard Warranty : 2Years (manufacturer’s defect)
SKU: SRV10KRIRK Categories: , , , Tags: , , , ,
Brand
Brand
Product Type
Product Type

UPS
More
UPS VA

10000 VA

UPS Watts

10000 Watts

UPS Application

Network and Server

UPS Topology

UPS Power Factor

1

UPS Full Load Backup Time

3 min

UPS Half Load Backup Time

10 min

UPS External Battery

ไม่รองรับการต่อ Battery

UPS Max Battery Pack Support

ต่อเพิ่มไม่ได้

UPS Network Card Support

Network Card Support

UPS Software

No Software

UPS Warranty

2Y Onsite 5×8
