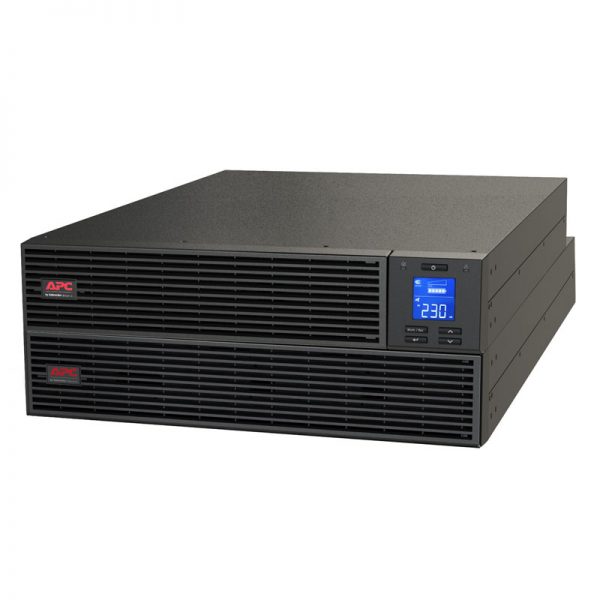

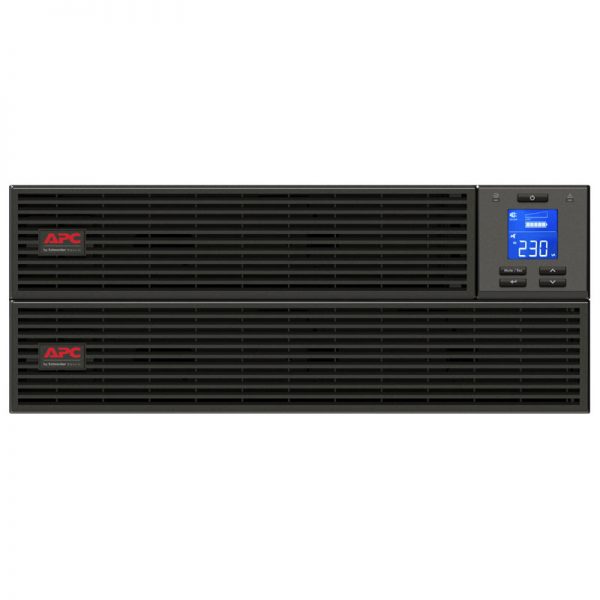

APC Easy UPS On-Line SRV RM Ext. Runtime 3000VA 230V with Rail kit Batt pack

รหัสสินค้า : SRV3KRILRK
APC
Availability:

Out of stock


  • Max Configurable Power (Watts) : 2.4kWatts / 3.0kVA
  • Other Output Voltages : 220, 240
  • Topology : Double conversion online
  • Waveform type : Sine wave
  • Rack Height : 4U
  • Control panel : Multifunction LCD status and control console

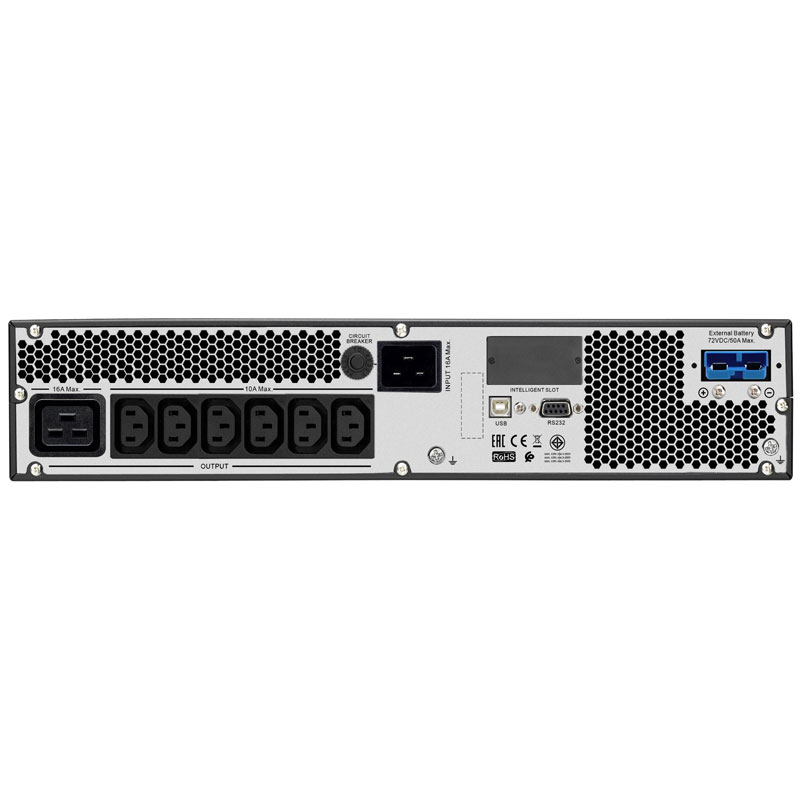

  • Output Connections :
    (6) IEC 60320 C13 (Battery Backup)
    (1) IEC 60320 C19 (Battery Backup)

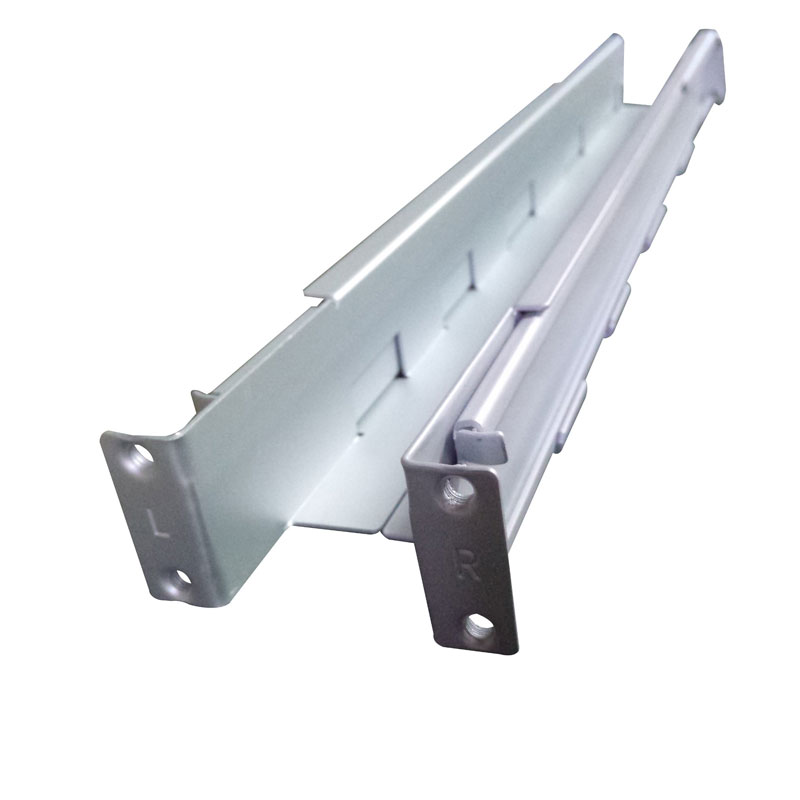

  • Includes: Basic UPS signalling RS-232 cable, CD with software, Rack mounting brackets, Rack mounting support rails, USB cable, User manual




--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 42,300.00 ฿ 49,600.00
฿ 45,261.00 (ราคารวมภาษี)

Out of stock

APC Easy UPS SRV3KRILRK

APC Easy UPS SRV3KRILRK

APC Easy UPS On-Line SRV RM Ext. Runtime 3000VA 230V with Rail kit Batt pack

APC Easy UPS On-Line SRV RM Ext. Runtime 1000VA

Output

  • Max Configurable Power (Watts) : 2.4kWatts / 3.0kVA
  • Efficiency at Full Load : 88.0 %
  • Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains
  • Other Output Voltages : 220, 240
  • Load Crest Factor : (3 : 1)
  • Topology : Double conversion online
  • Waveform type : Sine wave
  • Bypass : Internal bypass (automatic and manual)

Input

  • Input frequency : 40 – 70 Hz
  • Input voltage range for main operations : 160 – 280V
  • Efficiency at Full Load : 88.0 %
  • Other Input Voltages : 220, 240

Batteries & Runtime

Communications & Management

  • Control panel : Multifunction LCD status and control console
  • Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

  • Surge energy rating : 600Joules

Physical

  • Maximum Height : 172MM, 17.2CM
  • Maximum Width : 437MM, 43.7CM
  • Maximum Depth : 632MM, 63.2CM
  • Net Weight : 52KG
  • Shipping weight : 66.8KG
  • Shipping Height : 480MM, 48.0CM
  • Shipping Width : 600MM, 60.0CM
  • Shipping Depth : 800MM, 80.0CM

Environmental

  • Operating Temperature : 0 – 40 °C
  • Operating Relative Humidity : 0 – 95 (Non-condensing) %
  • Operating Elevation : 0 – 3000meters
  • Storage Temperature : -20 – 50 °C
  • Storage Elevation : 0 – 15000meters

Conformance

  • Approvals : CE, EAC, IEC 62040-1-1, IEC 62040-1-2
  • Standard Warranty : 2Y Onsite 5×8
SKU: SRV3KRILRK Categories: , , , Tags: , ,
Brand
Brand

Product Type
Product Type

UPS

More
UPS VA

3000 VA

UPS Watts

2400 Watts

UPS Application

Network and Server

UPS Topology

UPS Power Factor

0.8

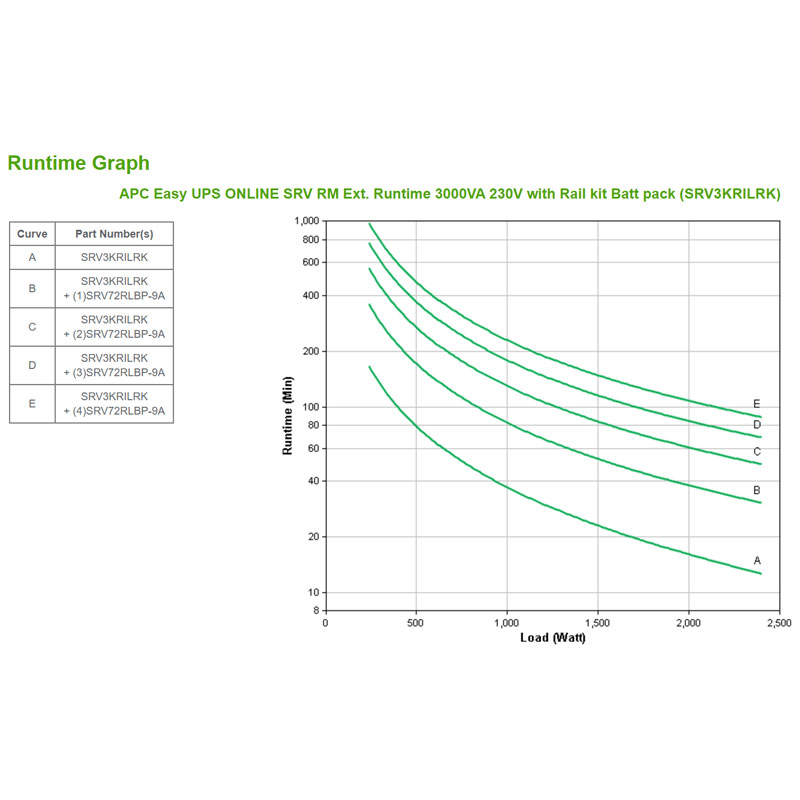

UPS Full Load Backup Time

13 min

UPS Half Load Backup Time

30 min

UPS External Battery

รองรับการต่อ Battery เพิ่ม

UPS Max Battery Pack Support

4 Pack

UPS Network Card Support

Network Card Support

UPS Software

No Software

UPS Warranty

2Y Onsite 5×8
