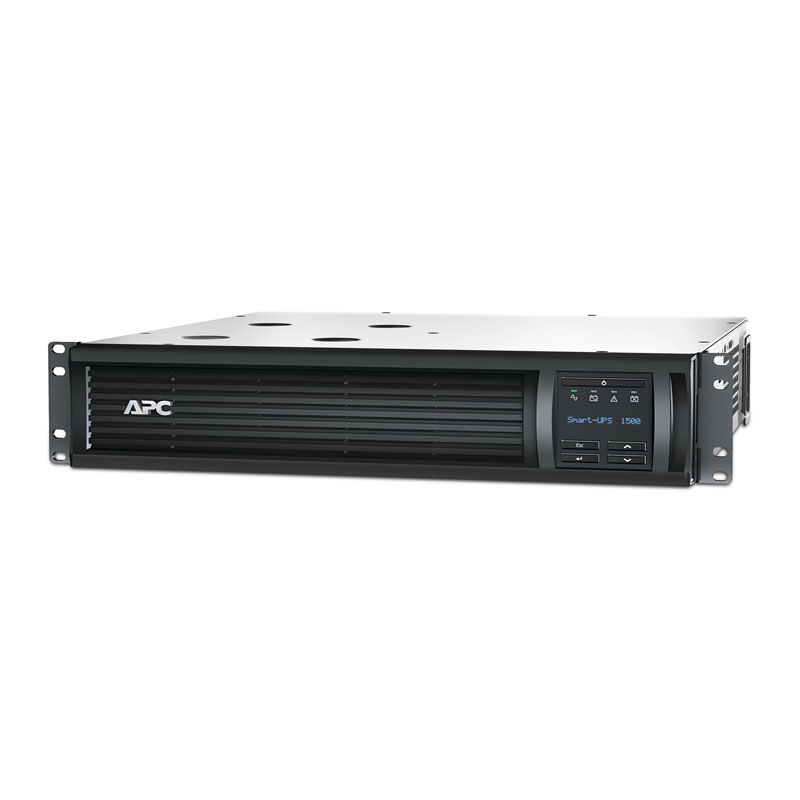

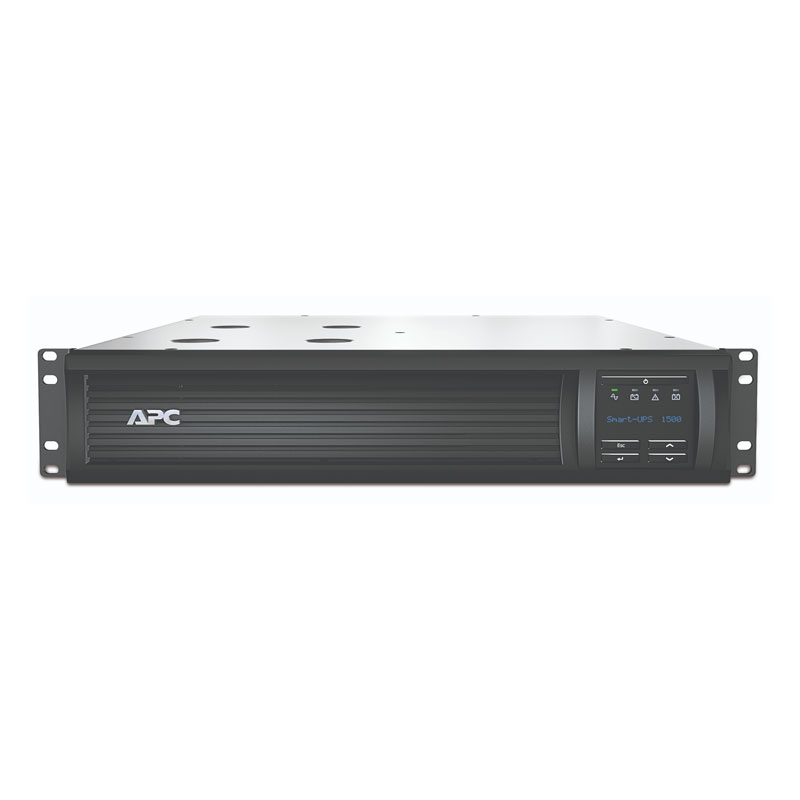

APC Smart-UPS 1500VA LCD RM 2U 230V with SmartConnect (SMT1500RMI2UC)

APC Smart-UPS SMT1500RMI2UC

APC Smart-UPS 1500VA LCD RM 2U 230V with SmartConnect (SMT1500RMI2UC)

APC Smart-UPS 1500VA LCD RM 2U 230V with SmartConnect | SMT1500RMI2UC

Output

• Output power capacity : 1.0kWatts / 1.5kVA
• Max Configurable Power (Watts) : 1.0kWatts / 1.5kVA
• Nominal Output Voltage : 230V
• Output Voltage Note : Configurable for 220 : 230 or 240 nominal output voltage
• Output Voltage Distortion : Less than 5%
• Output Frequency (sync to mains) : 50/60Hz +/- 3 Hz_
• Other Output Voltages : 220, 240
• Topology : Line Interactive
• Waveform type : Sine wave

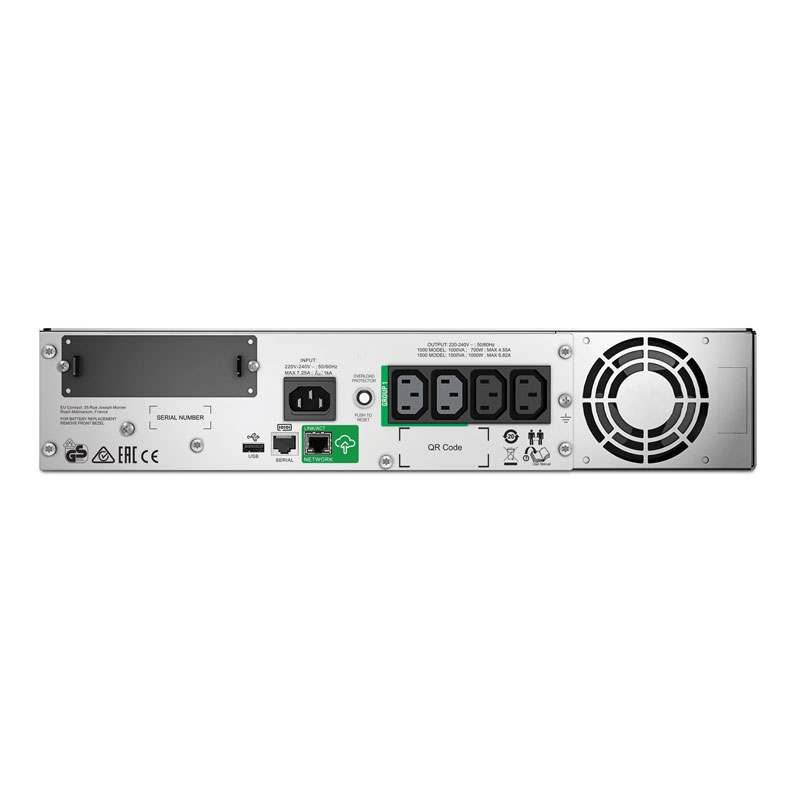

• Output Connections : (4) IEC 320 C13 (Battery Backup)
• Transfer Time : (6ms typical)(10ms maximum)

Input

• Nominal Input Voltage : 230V
• Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections : IEC-320 C14
• Input voltage range for main operations : 160 – 286V
• Input voltage adjustable range for mains operation : 151 – 302V
• Other Input Voltages : 220, 240

Batteries & Runtime

• Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time : 3hour(s)
• Replacement Battery : APCRBC133
• Expected Battery Life (years) : 4 – 6
• RBC Quantity : 1_
• RBC Quantity : 432
• Runtime : View Runtime Graph , View Runtime Chart

Communications & Management

• Interface Port(s) : RJ-45 Serial, SmartSlot, USB
• Control panel : Multi-function LCD status and control console
• Audible : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Emergency Power Off (EPO) : —
• Available SmartSlot Interface Quantity : 1
• SmartConnect Ethernet port: for cloud monitoring feature

Surge Protection and Filtering

• Surge energy rating : 459Joules
• Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height : 86MM, 8.6CM
• Maximum Width : 432MM, 43.2CM
• Maximum Depth : 477MM, 47.7CM
• Rack Height : 2U
• Net Weight : 28.64KG
• Shipping weight : 31.91KG
• Shipping Height : 251MM, 25.1CM
• Shipping Width : 594MM, 59.4CM
• Shipping Depth : 603MM, 60.3CM
• Color : Black
• Units per Pallet : 8.0

Environmental

• Operating Temperature : 0 – 40 °C
• Operating Relative Humidity : 0 – 95 %
• Operating Elevation : 0-3000meters
• Storage Temperature : -15 – 45 °C
• Storage Relative Humidity : 0 – 95 %
• Storage Elevation : 0-15000meters
• Audible noise at 1 meter from surface of unit : 46.0dBA
• Online thermal dissipation : 90.0BTU/hr

Conformance

• Approvals : CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE
• Standard warranty : 3 years repair or replace (excluding battery) and 2 year for battery

Sustainable Offer Status

• RoHS : Compliant
• REACH : (REACH: Contains No SVHCs)
