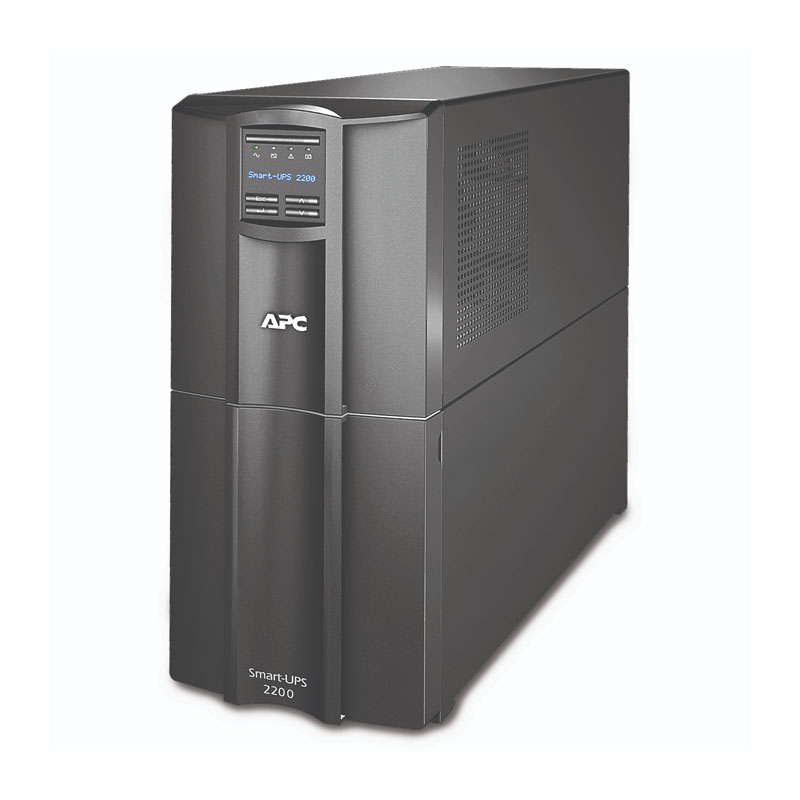

APC Smart-UPS 2200VA LCD 230V with SmartConnect

APC Smart-UPS 2200VA LCD 230V (SMT2200IC)

APC Smart-UPS 2200VA LCD 230V (SMT2200IC)

APC Smart-UPS 2200VA LCD 230V with SmartConnect | SMT2200IC

Output

• Output power capacity : 1.98kWatts / 2.2kVA
• Max Configurable Power (Watts) : 1.98kWatts / 2.2kVA
• Nominal Output Voltage : 230V
• Output Voltage Note : Configurable for 220 : 230 or 240 nominal output voltage
• Output Voltage Distortion : Less than 5%
• Output Frequency (sync to mains) : 50/60Hz +/- 3 Hz
• Other Output Voltages : 220, 240
• Topology : Line Interactive
• Waveform type : Sine wave

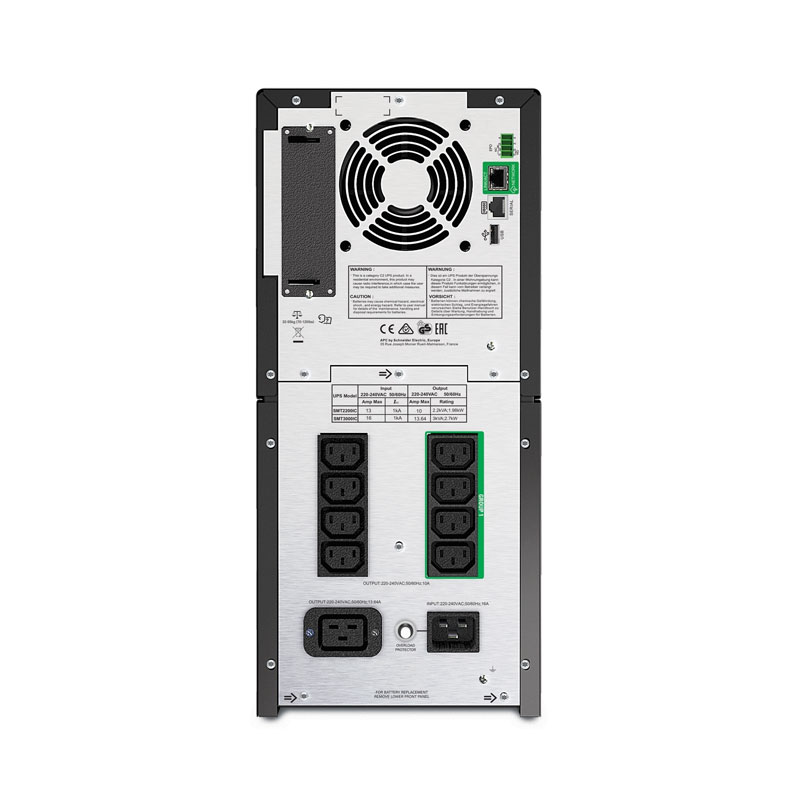

• Output Connections : (8) IEC 320 C13 (Battery Backup)
• Transfer Time : (6ms typical)(10ms maximum)

Input

• Nominal Input Voltage : 230V
• Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections : IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
• Input voltage range for main operations : 160 – 286V
• Input voltage adjustable range for mains operation : 151 – 302V
• Number of Power Cords : 1
• Other Input Voltages : 220, 240

Batteries & Runtime

• Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time : 3hour(s)
• Replacement Battery : RBC55
• Expected Battery Life (years) : 3 – 5
• RBC Quantity : 1
• RBC Quantity : 783
• Runtime : View Runtime Graph , View Runtime Chart

Communications & Management

• Interface Port(s) : RJ-45 Serial, SmartSlot, USB
• Control panel : Multi-function LCD status and control console
• Audible : Alarm when on battery : distinctive low battery alarm : configurable delays
• Emergency Power Off (EPO) : Yes
• Available SmartSlot Interface Quantity : 1

Surge Protection and Filtering

• Surge energy rating : 365Joules
• Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height : 435MM, 43.5CM
• Maximum Width : 197MM, 19.7CM
• Maximum Depth : 544MM, 54.4CM
• Net Weight : 48.8KG
• Shipping weight : 61.9KG
• Shipping Height : 699MM, 69.9CM
• Shipping Width : 381MM, 38.1CM
• Shipping Depth : 762MM, 76.2CM
• Color : Black
• Units per Pallet : 9.0

Environmental

• Operating Temperature : 0 – 40 °C
• Operating Relative Humidity : 0 – 95 %
• Operating Elevation : 0-3000meters
• Storage Temperature : -15 – 45 °C
• Storage Relative Humidity : 0 – 95 %
• Storage Elevation : 0-15000meters
• Audible noise at 1 meter from surface of unit : 45.0dBA
• Online thermal dissipation : 275.0BTU/hr

Conformance

• Approvals : CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
• Standard warranty : 3 years repair or replace (excluding battery) and 2 year for battery, optional on-site warranties available, optional extended warranties available

Sustainable Offer Status

• RoHS : Compliant
• REACH : (REACH: Contains No SVHCs)
