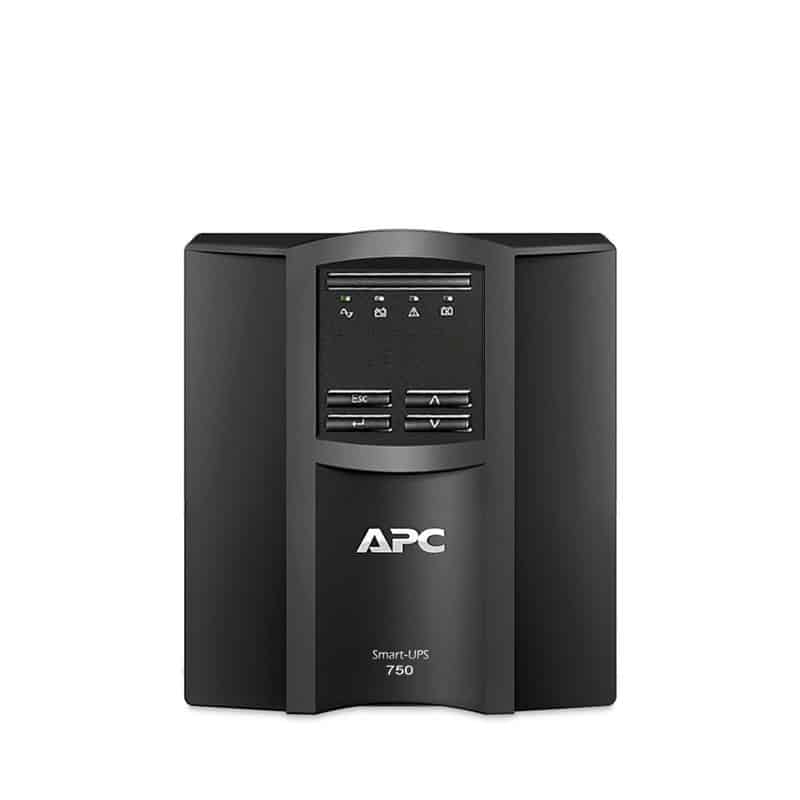

APC Smart-UPS 750VA SmartConnect LCD 230V (SMT750IC)

APC Smart-UPS SMT750IC

APC Smart-UPS 750VA LCD 230V | SMT750IC

APC Smart-UPS, Line Interactive, 750VA, Tower, 230V, 6x IEC C13 outlets, SmartConnect Port+SmartSlot, AVR, LCD

Output

• Output power capacity : 750VA / 500W
• Nominal Output Voltage : 230V
• Output Voltage Distortion : Less than 5% at full load
• Output Frequency (sync to mains) : 50/60Hz /- 3 Hz
• Topology : Line Interactive
• Waveform type : Sine wave
• Output Connections : (6) IEC 320 C13 (Battery Backup)
• Transfer Time :4 ms typical : 8 ms maximum

Input

• Input Voltage Limits : input voltage limits 151…302 V adjustable / 160…280 V
• Network Frequency : 50/60 Hz +/- 3 Hz auto-sensing

Batteries & Runtime

• Run Time : View Runtime Graph
• Efficiency : View Efficiency Graph
• Extended runtime : 0
• Number of battery filled slots : 0
• Number of battery free slots : 0
• Battery recharge time : 3 h
• Number of battery replacement quantity : 1
• Battery life : 3…5 year(s)
• Replacement battery : RBC48
• Battery power in VAH : 146 VAh runtime
• battery charger power : 49 W rated

Communications & Management

• Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays
• Control panel : Multifunction LCD status and control console
• Free slots : 1
• Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays
• SmartConnect Ethernet port: for cloud monitoring feature

Surge Protection and Filtering

• Surge energy rating : 459Joules
• Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Packing Uuits

• Maximum Height : 157MM, 15.75CM
• Maximum Width : 138MM, 13.8CM
• Maximum Depth : 358MM, 35.81CM
• Net Weight : 13.18KG
• Shipping weight : 14.23KG
• Shipping Height : 301MM, 30.1CM
• Shipping Width : 278MM, 27.8CM
• Shipping Depth : 499MM, 49.9CM
• Color : Black
• Units per Pallet : 24.0

Environmental

• Operating Temperature : 0 – 40 °C
• Operating Relative Humidity : 0 – 95 %
• Operating Elevation : 0-3000meters
• Storage Temperature : -15 – 45 °C
• Storage Relative Humidity : 0 – 95 %
• Storage Elevation : 0-15000meters
• Audible noise at 1 meter from surface of unit : 40.0dBA
• Online thermal dissipation : 90.0BTU/hr

Conformance

• Approvals : CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE
• Standard warranty : 3 years repair or replace (excluding battery) and 2 year for battery

Sustainable Offer Status

• RoHS : Compliant
• REACH : (REACH: Contains No SVHCs)
