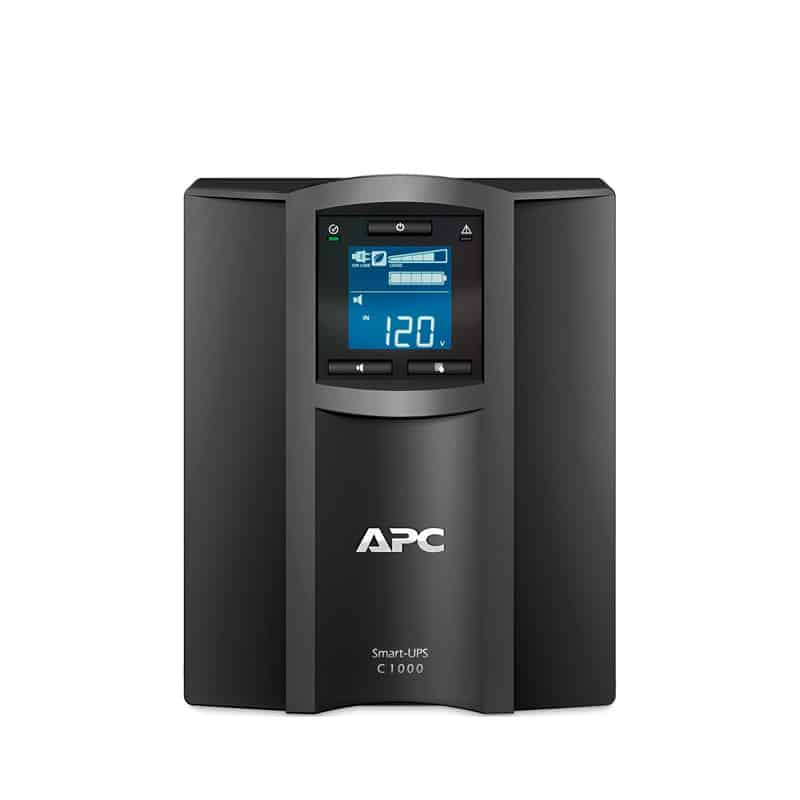

APC-Smart-UPS-C-SMC1000IC-Front

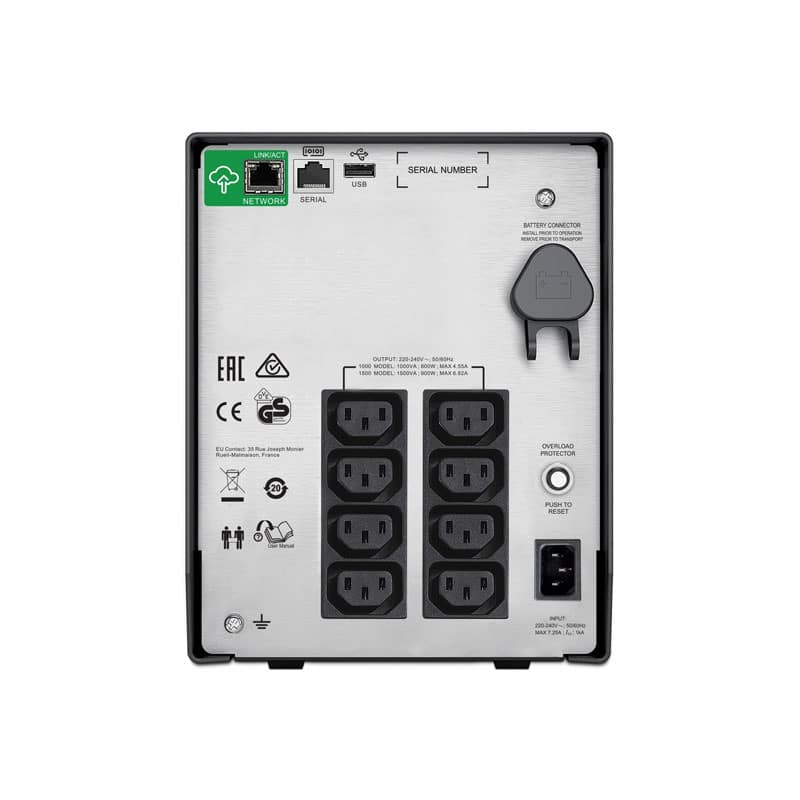

APC-Smart-UPS-C-SMC1000IC-Rear
APC-Smart-UPS-C-SMC1000IC-Front
APC-Smart-UPS-C-SMC1000IC-Rear
สนใจ
, , ,

APC Smart-UPS C 1000VA LCD with SmartConnect (SMC1000IC)

รหัสสินค้า : SMC1000IC
APC
Availability:

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง
สนใจ
เปรียบเทียบ
  • Output power capacity : 1000VA / 600Watts
  • Nominal Output Voltage : 230V
  • Topology : Line Interactive
  • Waveform type : Sine wave
  • Transfer Time : 6ms typical
  • Output Connections : 8x IEC 60320 C13
  • SmartConnect Ethernet port: for cloud monitoring feature
  • 3 Years Warranty On-Site Swap
--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 20,000.00 ฿ 20,700.00
฿ 21,400.00 (ราคารวมภาษี)

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง

UPS APC Smart-UPS SMC1000IC 1000VA 600Watt

APC Smart-UPS C 1000VA LCD SmartConnect port | SMC1000IC

Output

  • Output power capacity : 1000VA / 600Watts
  • Nominal Output Voltage : 230V
  • Output Voltage Distortion : Less than 5% at full load
  • Output Frequency (sync to mains) : 50/60Hz /- 3 Hz
  • Topology : Line Interactive
  • Waveform type : Sine wave
  • Output Connections : (8) IEC 320 C13 (Battery Backup)
  • Transfer Time : 6ms typical : 10ms maximum

Input

  • Nominal Input Voltage : 230V
  • Input frequency : 50/60 Hz /- 3 Hz (auto sensing)
  • Input Connections : IEC-320 C14
  • Input voltage range for main operations : 180 – 287V
  • Input voltage adjustable range for mains operation : 170 – 300V
  • Other Input Voltages : 220, 240

Batteries & Runtime

  • Run Time : View Runtime Graph
  • Efficiency : View Efficiency Graph
  • Extended runtime : 0
  • Number of battery filled slots : 0
  • Number of battery free slots : 0
  • Battery recharge time : 3 h
  • Number of battery replacement quantity : 1
  • Battery life : 3…5 year(s)
  • Replacement battery : APCRBC142
  • Battery power in VAH : 170 VAh runtime
  • battery charger power : 56 W rated

Communications & Management

  • Control panel Multifunction LCD status and control console
  • No Slot
  • SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
  • Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering

  • Surge energy rating : 455Joules
  • Noise suppression : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height : 219mm , 21.9cm
  • Maximum Width : 171mm , 17.1cm
  • Maximum Depth : 439mm , 43.9cm
  • Net Weight : 17.27kg
  • Shipping weight : 19.55kg
  • Shipping Height : 376mm , 37.6cm
  • Shipping Width : 328mm , 32.8cm
  • Shipping Depth : 595mm , 59.5cm
  • Color : Black
  • Master Carton Units : 1.0
  • Units per Pallet : 18.0

Environmental

  • Operating Environment : 0 – 40 °C
  • Operating Relative Humidity : 0 – 95 %
  • Operating Elevation : 0-3000meters
  • Storage Temperature : -15 – 45 °C
  • Storage Relative Humidity : 0 – 95 %
  • Storage Elevatio : 0-15000meters
  • Audible noise at 1 meter from surface of unit : 41.0dBA
  • Online thermal dissipation : 100.0BTU/hr
SKU: SMC1000IC Categories: , , , Tags: , , , ,
Brand
Brand
Product Type
Product Type

UPS
More
UPS VA

1000 VA

UPS Watts

600 Watts

UPS Application

Network and Server

UPS Topology

UPS Power Factor

0.6

UPS External Battery

ไม่รองรับการต่อ Battery

UPS Max Battery Pack Support

ต่อเพิ่มไม่ได้

UPS Network Card Support

Not Support

UPS Software

PowerChute Business Edition (PCBE)

UPS Warranty

3Y Onsite 5×8
