APC Smart-UPS SRT 2200VA 230V

รหัสสินค้า : SRT2200XLI
APC
Availability:

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง
สนใจ
เปรียบเทียบ
  • Max Configurable Power (Watts) : 1.98kWatts / 2.2kVA
  • Other Output Voltages : 220, 240
  • Topology : Double conversion online
  • Waveform type : Sine wave
  • Control panel : Multifunction LCD status and control console
  • Output Connections :
    (2) IEC 60320 C19 (Battery Backup)
    (8) IEC 320 C13 (Battery Backup)
    (8) IEC 60320 C13 (Battery Backup)
    (2) IEC 320 C19 (Battery Backup)
    (2) IEC Jumpers (Battery Backup)
  • Includes: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card



--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 53,800.00 ฿ 62,000.00
฿ 57,566.00 (ราคารวมภาษี)

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง

APC Smart-UPS SRT2200XLI

APC Smart-UPS SRT2200XLI

APC Smart-UPS SRT 2200VA 230V

APC Easy UPS On-Line SRV RM Ext. Runtime 1000VA

Output

  • Max Configurable Power (Watts) : 1.98kWatts / 2.2kVA
  • Output Voltage Distortion : Less than 2 %
  • Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains
  • Other Output Voltages : 220, 240
  • Load Crest Factor : (3 : 1)
  • Topology : Double conversion online
  • Waveform type : Sine wave
  • Bypass : Internal bypass (automatic and manual)

Input

  • Input frequency : 40 – 70 Hz Auto-sensing
  • Input voltage range for main operations : 100 – 275 Adjustable (half load), 160 – 275V
  • Number of Power Cords : 1
  • Other Input Voltages : 220, 240

Batteries & Runtime

  • Battery type : Lead-acid battery
  • Typical recharge time : 3hour(s)
  • Nominal Battery Voltage : 72 V
  • Expected Battery Life (years) : 3 – 5
  • Battery Charge Power (Watts) : 122 Watts

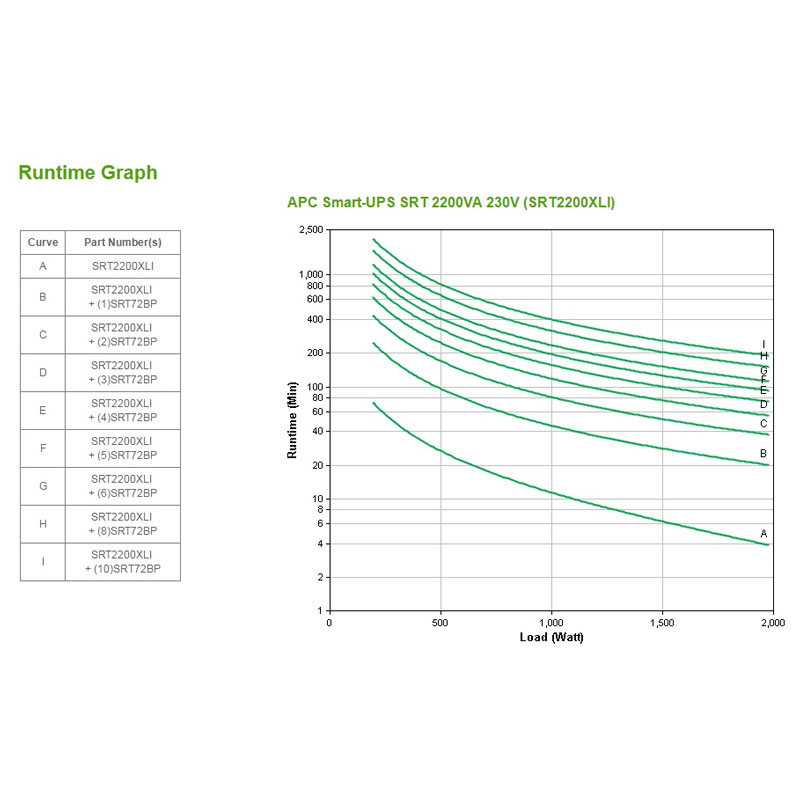

  • Runtime : View Runtime Graph

Communications & Management

  • Interface Port(s) : RJ-45 Serial, Smart-Slot, USB
  • Control panel : Multifunction LCD status and control console
  • Audible Alarm : Audible and visible alarms prioritized by severity
  • Emergency Power Off (EPO) : Yes

Surge Protection and Filtering

  • Surge energy rating : 340Joules

Physical

  • Maximum Height : 432MM, 43.2CM
  • Maximum Width : 85MM, 8.5CM
  • Maximum Depth : 584MM, 58.4CM
  • Net Weight : 25.0KG
  • Shipping weight : 30.84KG
  • Shipping Height : 246MM, 24.6CM
  • Shipping Width : 599MM, 59.9CM
  • Shipping Depth : 810MM, 81.0CM
  • Color : Black
  • Units per Pallet : 12.0

Environmental

  • Operating Temperature : 0 – 40 °C
  • Operating Relative Humidity : 0 – 95 (Non-condensing) %
  • Operating Elevation : 0 – 3048meters
  • Storage Temperature : -15 – 45 °C
  • Storage Elevation : 0 – 15240meters
  • Audible noise at 1 meter from surface of unit : 55.0dBA
  • Protection Class : IP20

Conformance

  • Approvals : CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
  • Standard Warranty : 3Y Onsite 5×8
SKU: SRT2200XLI Categories: , , , Tags: ,
Brand
Brand
Product Type
Product Type

UPS
More
UPS VA

2200 VA

UPS Watts

1980 Watts

UPS Application

Network and Server

UPS Topology

UPS Power Factor

0.9

UPS Full Load Backup Time

4 min

UPS Half Load Backup Time

12 min

UPS External Battery

รองรับการต่อ Battery เพิ่ม

UPS Max Battery Pack Support

10 Pack

UPS Network Card Support

Network Card Support

UPS Software

PowerChute Business Edition (PCBE)

UPS Warranty

3Y Onsite 5×8
