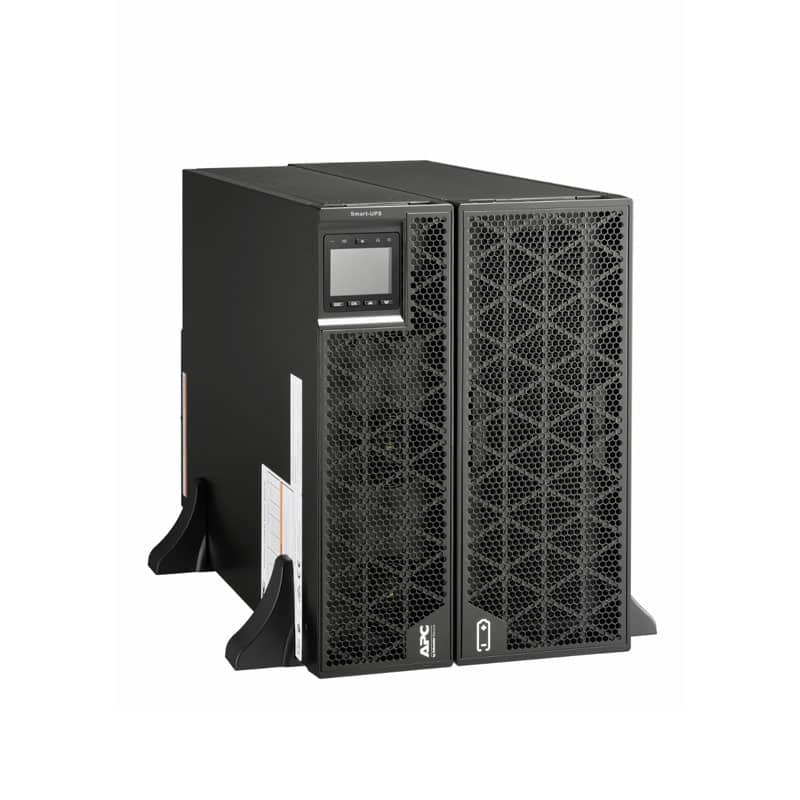

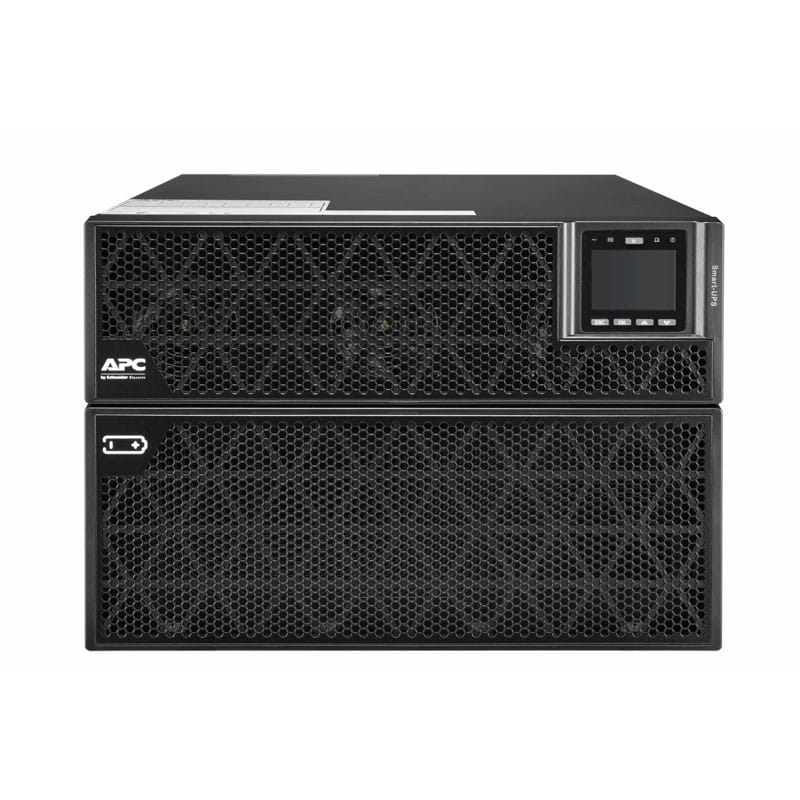

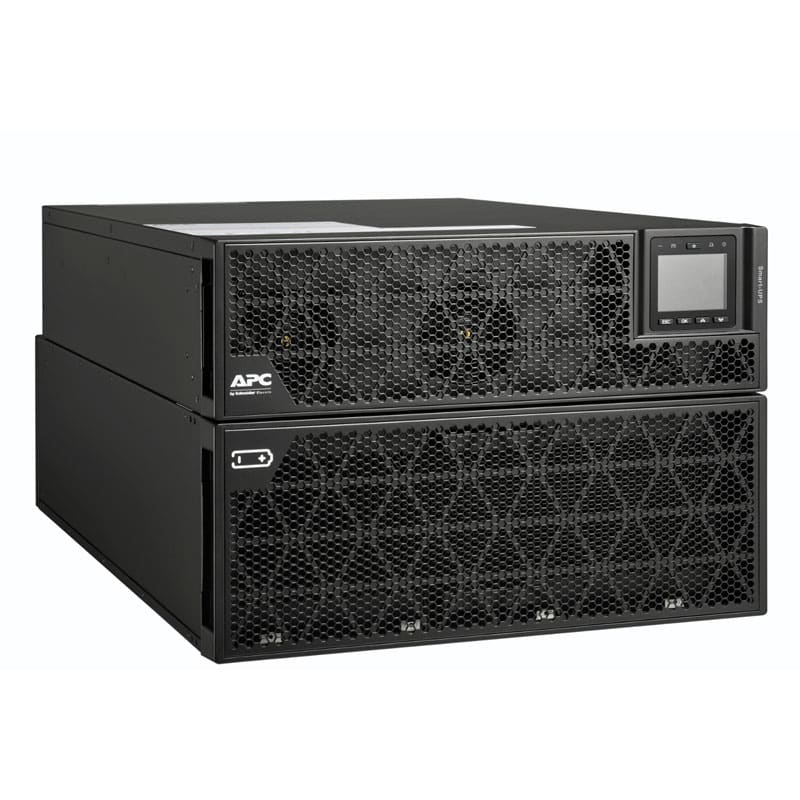

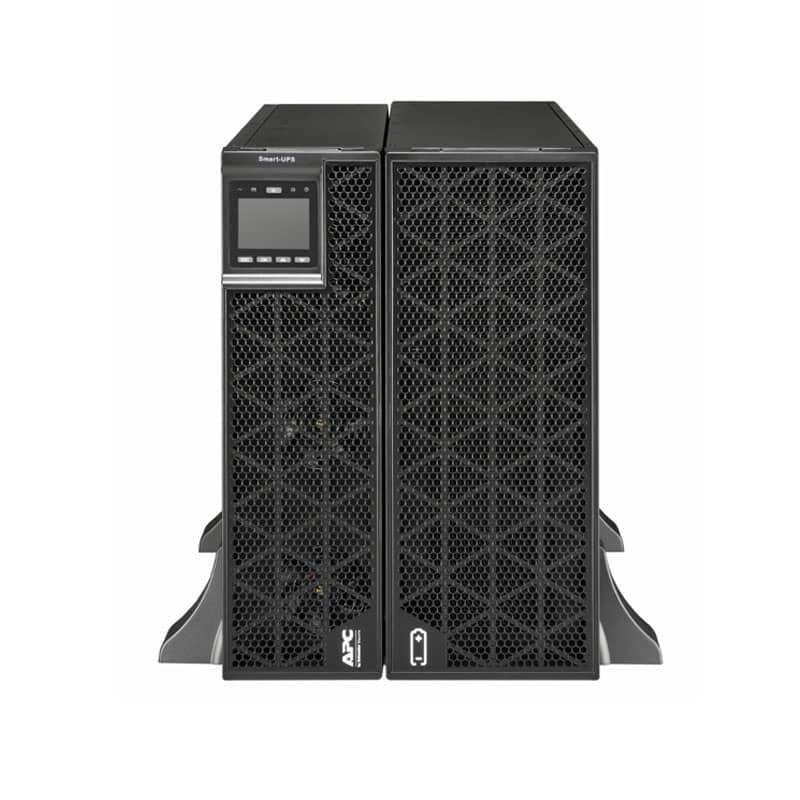

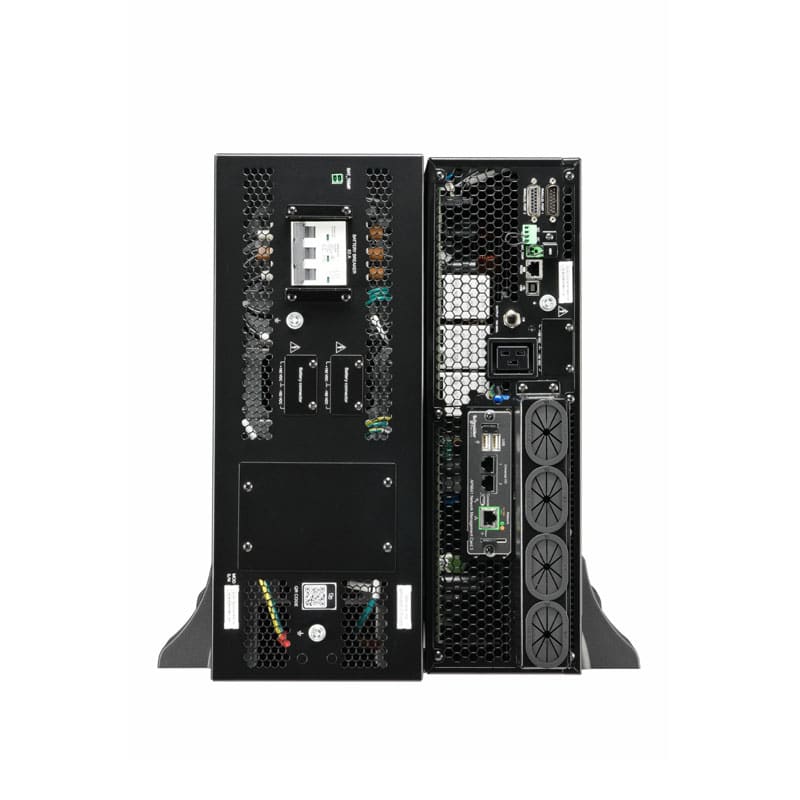

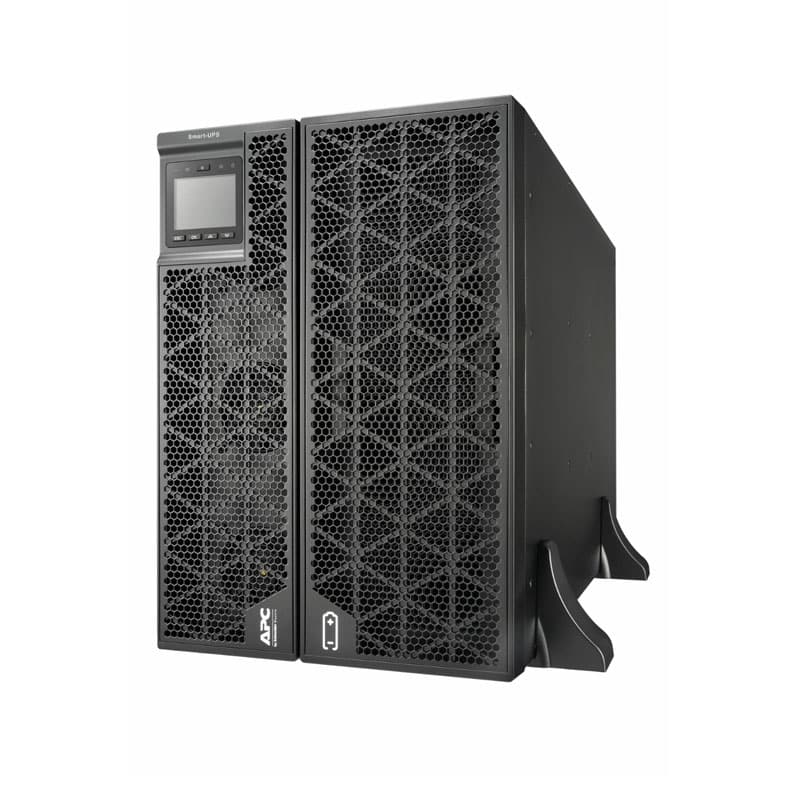

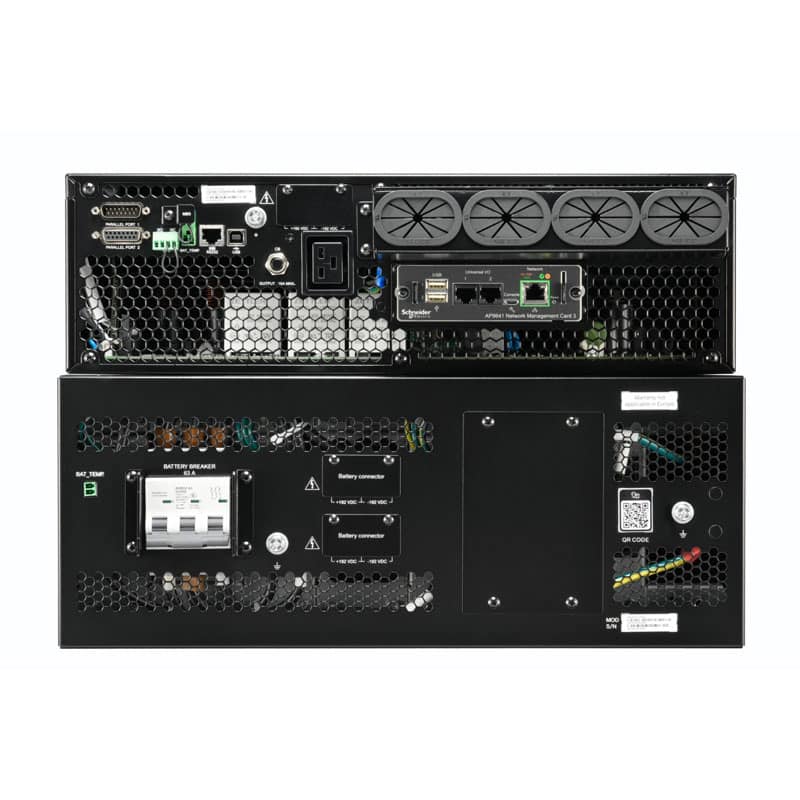

APC Smart-UPS SRTG 20000VA 230V

รหัสสินค้า : SRTG20KXLI
APC
Availability:

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


  • Max Configurable Power (Watts) : 20000VA / 20000Watts
  • Main Input Voltage : 380…415 V 3 phases / 230 V
  • Topology : Double conversion online
  • Waveform type : Sine wave
  • Output connector type : 1 hard wire 5 wire (3P + N + E), 1 hard wire 3-wire (1P + N + E)
  • Control panel : Multifunction LCD status and control console
  • 2Years Warranty OnSite Service

--- กรุณาตรวจสอบสินค้าก่อนสั่งซื้อทุกครั้ง ---

฿ 450,000.00 ฿ 476,000.00
฿ 481,500.00 (ราคารวมภาษี)

ตรวจสอบสต็อกและระยะเวลาการสั่งซื้อสินค้าทุกครั้ง


APC Smart-UPS SRTG 20000VA 230V

APC Smart-UPS SRTG 20000VA 230V

APC Smart-UPS SRTG 20000VA 230V

APC Smart-UPS SRTG 5000VA 230V

Output

  • Max Configurable Power (Watts) : 20000VA / 20000Watts
  • Nominal output voltage : 220 / 230 (default) / 240
  • Output frequency : 50/60 Hz ± 4 Hz (auto sense) / 50/60 Hz ± 0.1 Hz (battery mode)
  • Topology : Double conversion online

Input

  • Input frequency : 40 – 70 Hz Auto-sensing
  • Input voltage range at full load : 160 – 285 Vac
  • Input connection : 1 hard wire 5 wire (3P + N + E) , 1 hard wire 3-wire (1P + N + E)

Batteries & Runtime

Communications & Management

  • Preinstalled device : Network management card 3 with environmental monitoring
  • Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
  • Emergency power off : Yes

Surge Protection and Filtering

  • Surge energy rating : 600 J

Packing Units

  • Unit Type of Package 1 : PCE
  • Number of Units in Package 1 : 1
  • Package 1 Height : 53.5 cm
  • Package 1 Width : 79.0 cm
  • Package 1 Length : 59.0 cm
  • Package 1 Weight : 157.20 kg
Brand
Brand

Product Type
Product Type

UPS

More
UPS VA

20000 VA

UPS Watts

20000 Watts

UPS Application

Network and Server

UPS Topology

UPS Power Factor

1

UPS Full Load Backup Time

4 min

UPS Half Load Backup Time

12 min

UPS External Battery

รองรับการต่อ Battery เพิ่ม

UPS Max Battery Pack Support

10 Pack

UPS Network Card Support

Network Card Support

UPS Software

PowerChute Network Shutdown (PCNS)

UPS Warranty

2Y Onsite 5×8
